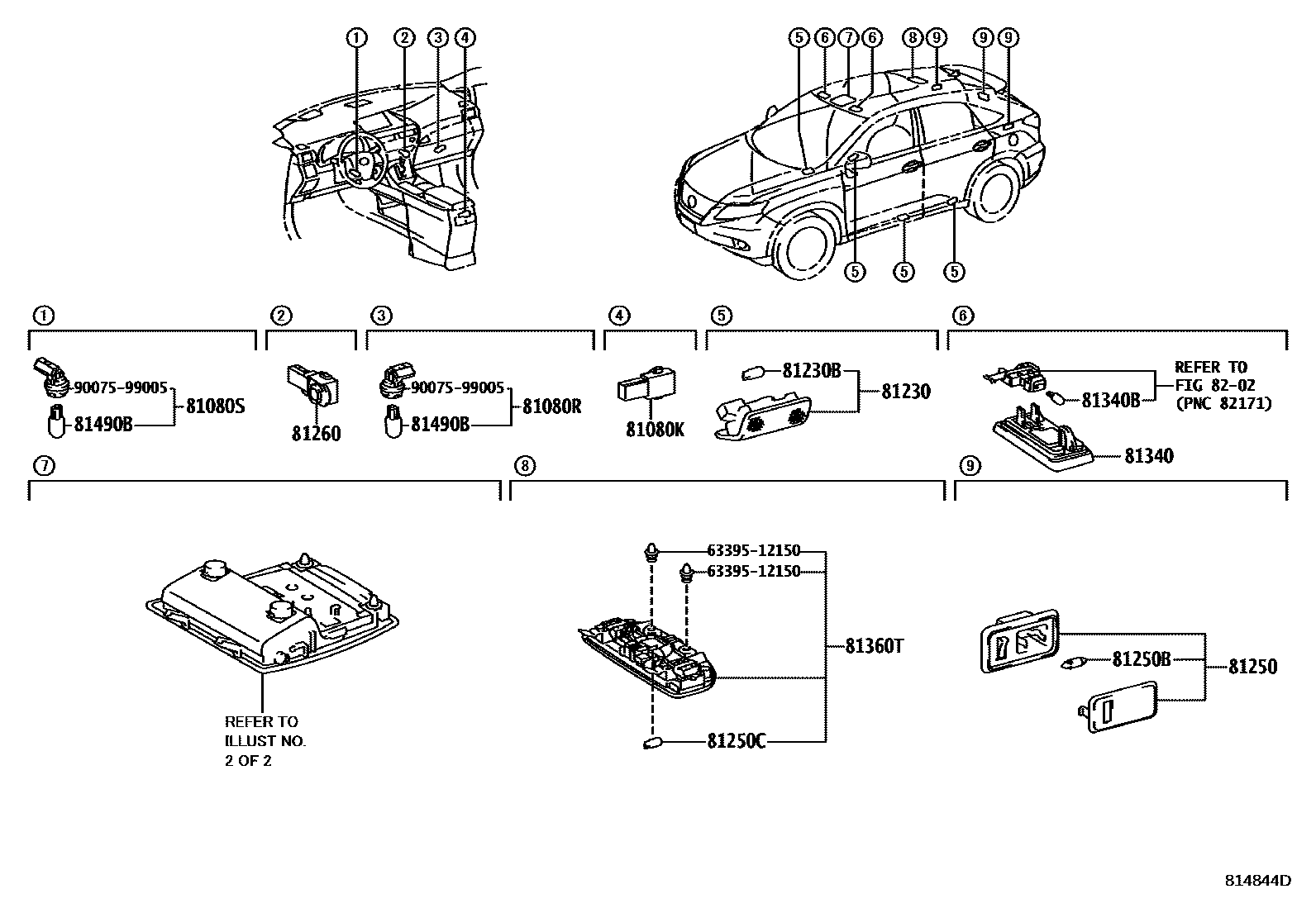

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81250CBULB, SPOT LAMP
12V 8W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
IVORY,TRIM0#
IVORY,TRIM0#,40
LT.GRAY,TRIM1#,20,3#,4#
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,3#,40
LT.GRAY,TRIM1#,20,3#,40
BLACK,TRIM21
BLACK,TRIM21,22
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM2#,3#
IVORY,TRIM0#
IVORY,TRIM0#,40
LT.GRAY,TRIM1#,20,3#,4#
LT.GRAY,TRIM1#,20,3#,40
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,3#,40
BLACK,TRIM21,22
BLACK,TRIM21
81490BBULB (FOR FOOT LAMP)
12V 3.8W
8202
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9007599005
main90075-99005
16 parts on this diagram · 2 diagrams in section
