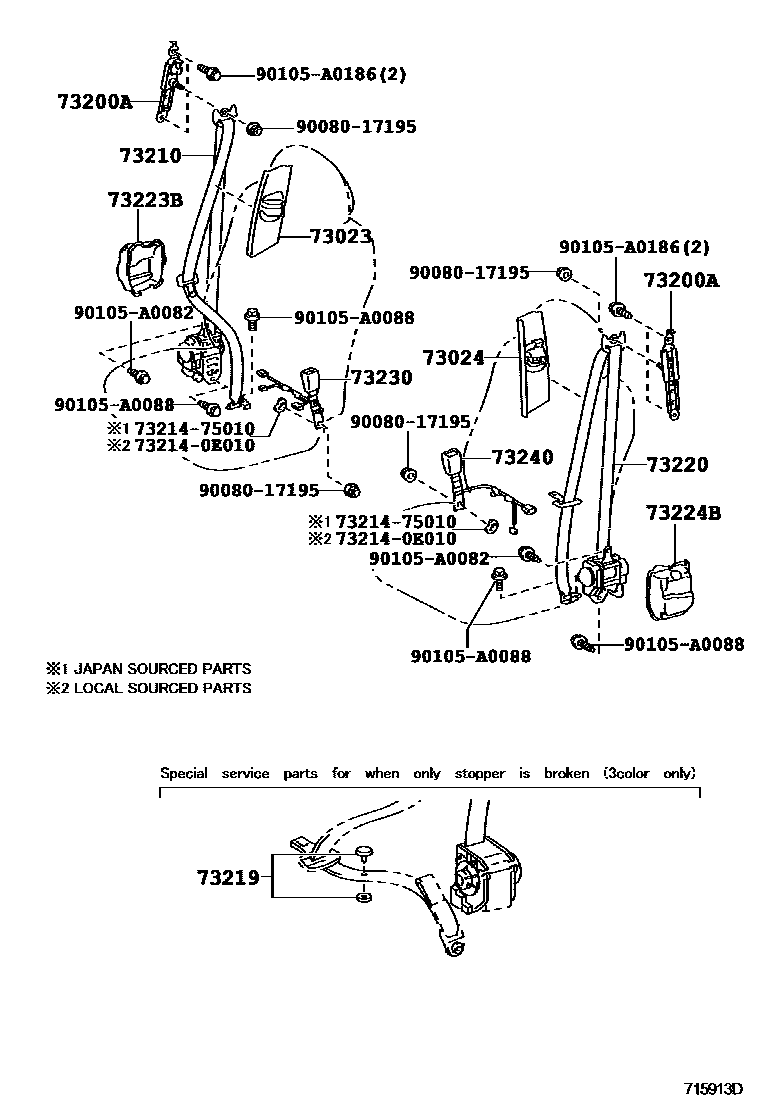

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0E010-A0iGGL1#,GYL1#..NAP200901-201510

IVORY,TRIM0#

main73023-0E010-B0iGYL1#..NAP201403-201510

LT.GRAY,TRIM1#,2#,4#

main73023-0E010-B0iGGL1#..NAP..6FC201207-201510

LT.GRAY,TRIM1#,20,30,4#

main73023-0E010-B0iGGL1#..NAP..6FC201207-201510

LT.GRAY,TRIM1#,20,3#,4#

main73023-0E010-B0iGGL1#..NAP201204-201207

LT.GRAY,TRIM1#,2#,3#,4#

main73023-0E010-B0iGGL1#..NAP200901-201204

LT.GRAY,TRIM1#,2#

main73023-0E010-C0iGGL1#..NAP..6FC201207-201510

BLACK,TRIM21,22,31,32

main73023-0E010-C0iGGL1#..NAP..6FC201207-201510

BLACK,TRIM21

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0E010-A0iGGL1#..NAP200901-201510

IVORY,TRIM0#

main73024-0E010-B0iGGL1#..NAP200901-201204

LT.GRAY,TRIM1#,2#

main73024-0E010-B0iGGL1#..NAP..6FC201207-201510

LT.GRAY,TRIM1#,20,3#,4#

main73024-0E010-B0iGGL1#..NAP..6FC201207-201510

LT.GRAY,TRIM1#,20,30,4#

main73024-0E010-B0iGYL1#..NAP201403-201510

LT.GRAY,TRIM1#,2#,4#

main73024-0E010-B0iGGL1#..NAP201204-201207

LT.GRAY,TRIM1#,2#,3#,4#

main73024-0E010-C0iGGL1#..NAP..6FC201207-201510

BLACK,TRIM21,22,31,32

main73024-0E010-C0iGGL15..NAP..8FC201207-201510

BLACK,TRIM21

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iGGL1#,GYL1#..NAP¥4,410200901-201204

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E020-A1iGGL1#..NAP200901-201008

IVORY,TRIM0#

sub73210-0E021

main73210-0E020-B2iGGL1#..NAP200901-201008

LT.GRAY,TRIM1#

sub73210-0E021

main73210-0E020-C2iGGL1#..NAP200901-201008

BLACK,TRIM2#

sub73210-0E021

main73210-0E021-A1iGGL1#..NAP201009-201204

IVORY/IVORY,TRIM0#

main73210-0E021-B2iGGL1#..NAP201009-201204

GRAY/LT.GRAY,TRIM1#

main73210-0E021-C2iGGL1#..NAP201009-201204

BLACK/LT.GRAY,TRIM2#

main73210-0E100-A0iGGL1#..NAP..6FC201204-201403

IVORY/IVORY,TRIM0#

main73210-0E100-B0iGGL1#..NAP..6FC201204-201403

GRAY/LT.GRAY,TRIM1#

main73210-0E100-C0iGGL1#..NAP..6FC201204-201403

BLACK/LT.GRAY,TRIM2#,4#

main73210-0E100-C1iGGL15..NAP..8FC201207-201403

BLACK/BLACK,TRIM2#,3#

main73210-0E130-A0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

IVORY/IVORY,TRIM0#

main73210-0E130-B0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

GRAY/LT.GRAY,TRIM1#

main73210-0E130-C0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

BLACK/LT.GRAY,TRIM2#,4#

main73210-0E130-C1iGGL15..NAP..8FC201403-201510

BLACK/BLACK,TRIM2#,3#

73219STOPPER, TONGUE PLATE

main73219-02010iGGL1#..NAP¥80200901-201204

BLACK

main73219-02020iGGL1#,GYL1#..NAP¥80200901-201204

GRAY

main73219-02030iGGL1#..NAP¥80200901-201204

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0E020-A1iGGL1#..NAP200901-201008

IVORY,TRIM0#

sub73220-0E021

main73220-0E020-B2iGGL1#..NAP200901-201008

LT.GRAY,TRIM1#

sub73220-0E021

main73220-0E020-C2iGGL1#..NAP200901-201008

BLACK,TRIM2#

sub73220-0E021

main73220-0E021-A1iGGL1#..NAP201009-201204

IVORY/IVORY,TRIM0#

main73220-0E021-B2iGGL1#..NAP201009-201204

GRAY/LT.GRAY,TRIM1#

main73220-0E021-C2iGGL1#..NAP201009-201204

BLACK/LT.GRAY,TRIM2#

main73220-0E090-A0iGGL1#..NAP..6FC201204-201403

IVORY/IVORY,TRIM0#

main73220-0E090-B0iGGL1#..NAP..6FC201204-201403

GRAY/LT.GRAY,TRIM1#

main73220-0E090-C0iGGL1#..NAP..6FC201204-201403

BLACK/LT.GRAY,TRIM2#,4#

main73220-0E090-C1iGGL15..NAP..8FC201207-201403

BLACK/BLACK,TRIM2#,3#

main73220-0E120-A0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

IVORY/IVORY,TRIM0#

main73220-0E120-B0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

GRAY/LT.GRAY,TRIM1#

main73220-0E120-C0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

BLACK/LT.GRAY,TRIM2#,4#

main73220-0E120-C1iGGL15..NAP..8FC201403-201510

BLACK/BLACK,TRIM2#,3#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E010iGGL1#..NAP200901-201204

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73223-0E010iGGL1#,GYL1#..NAP200901-201204

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E060-A0iGGL1#..NAP200901-201403

IVORY,TRIM0#

main73230-0E060-B0iGGL1#..NAP200901-201403

LT.GRAY,TRIM1#

main73230-0E060-C0iGGL1#..NAP200901-201204

BLACK,TRIM2#

main73230-0E060-C0iGGL1#..NAP201204-201403

BLACK,TRIM2#,3#,4#

main73230-0E230-A0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

IVORY,TRIM0#

main73230-0E230-B0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

LT.GRAY,TRIM1#

main73230-0E230-C0iGGL15..NAP..8FC201403-201510

BLACK,TRIM2#,4#

main73230-0E230-C0iGGL15..NAP..8FC201403-201510

BLACK,TRIM2#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E040-A0iGGL1#..NAP200901-201403

IVORY,TRIM0#

main73230-0E040-B0iGGL1#..NAP200901-201403

LT.GRAY,TRIM1#

main73230-0E040-C0iGGL1#..NAP200901-201204

BLACK,TRIM2#

main73230-0E040-C0iGGL1#..NAP201204-201403

BLACK,TRIM2#,3#,4#

main73230-0E210-A0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

IVORY,TRIM0#

main73230-0E210-B0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201403-201510

LT.GRAY,TRIM1#

main73230-0E210-C0iGGL15..NAP..8FC201403-201510

BLACK,TRIM2#,3#

main73230-0E210-C0iGGL15..NAP..8FC201403-201510

BLACK,TRIM2#,4#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010¥260

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0088

main90105-A0088

90105A0186

main90105-A0186

16 parts on this diagram · 2 diagrams in section
