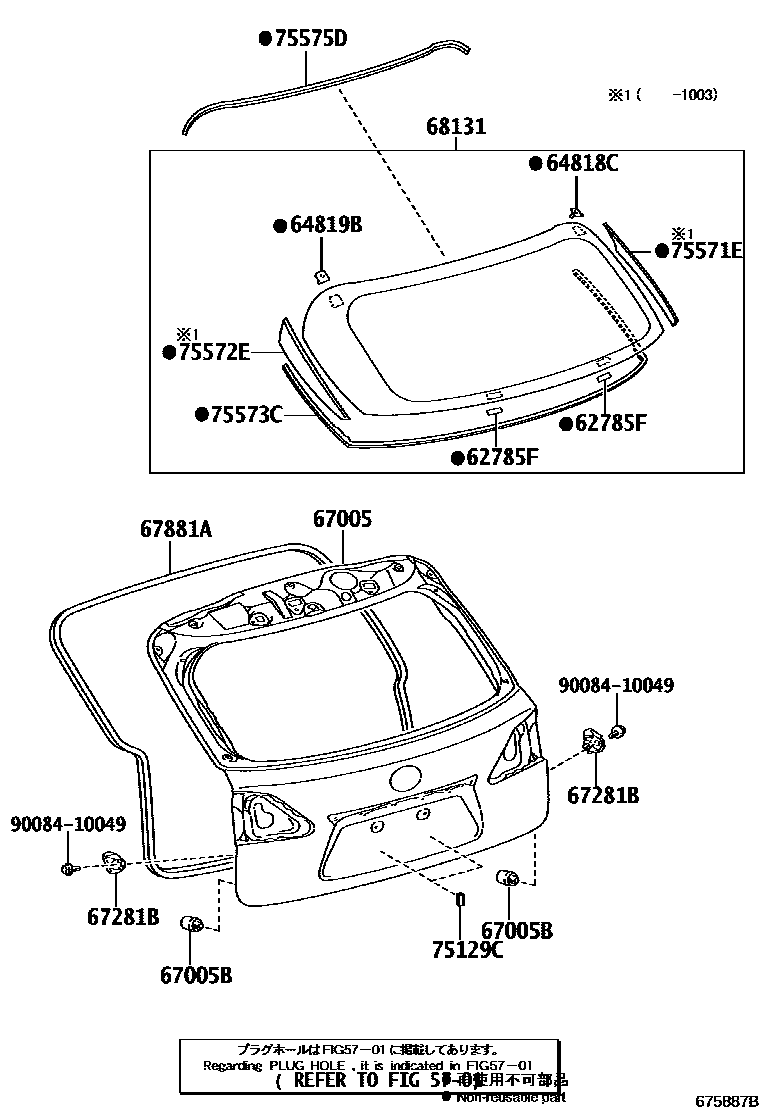

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
INSIDE REAR VIEW MIRROR-*218 & *GDO & BACK MONITOR
EMV & NAVIGATION SYSTEM-WITH
INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO&AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & *GDO&AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH
AUDIO-DISPLAY AUDIO,CD,12SPEAKER
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHT,T=3.5,DK.GRAY
75129CCUSHION, REAR LICENCE PLATE
75571EMOULDING, BACK WINDOW, OUTSIDE UPPER RH
75572EMOULDING, BACK WINDOW, OUTSIDE UPPER LH
75573CMOULDING, BACK WINDOW, OUTSIDE
75575DMOULDING, BACK WINDOW, LOWER
9008410049
main90084-10049
15 parts on this diagram · 2 diagrams in section
