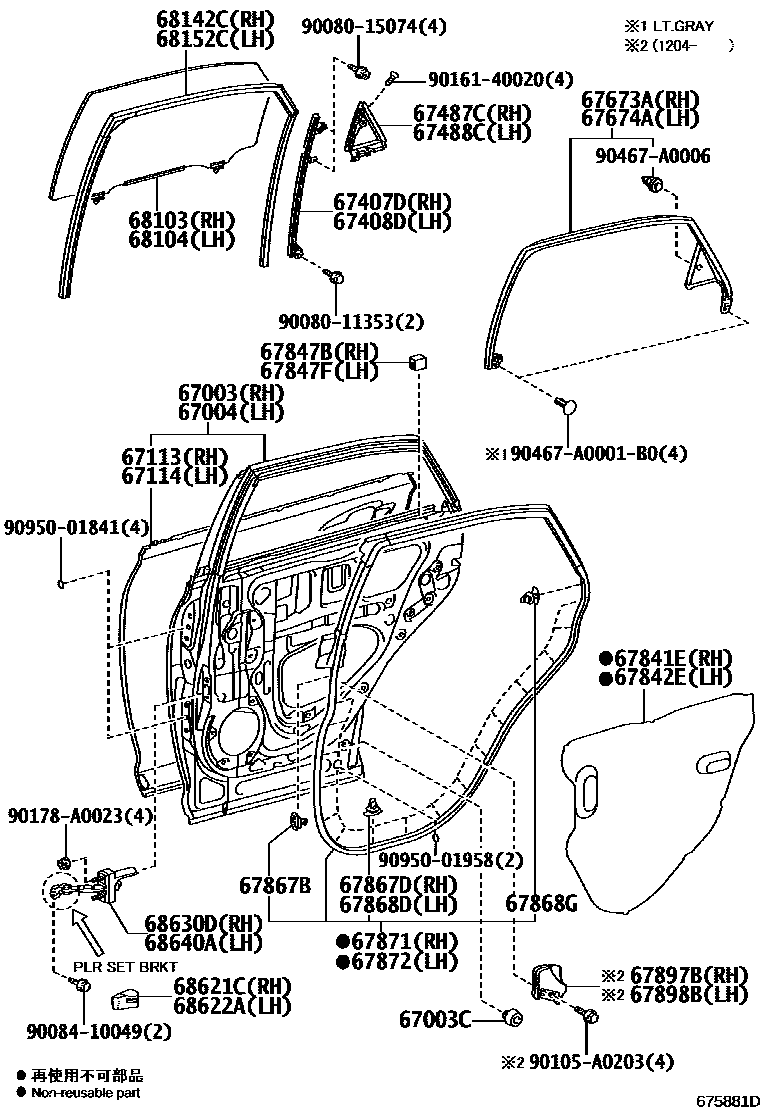

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67847FSEAL, REAR DOOR VENT, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,DARK GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,DARK GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
68640ACHECK ASSY, REAR DOOR, LH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
9008011353
main90080-11353
9008015074
main90080-15074
9008410049
main90084-10049
90105A0203
main90105-A0203
9016140020
main90161-40020
90178A0023
main90178-A0023
90467A0001B0
main90467-A0001B0
90467A0006
main90467-A0006
9095001841
main90950-01841
9095001958
main90950-01958
41 parts on this diagram · 2 diagrams in section
