DECK BOARD & DECK TRIM COVER

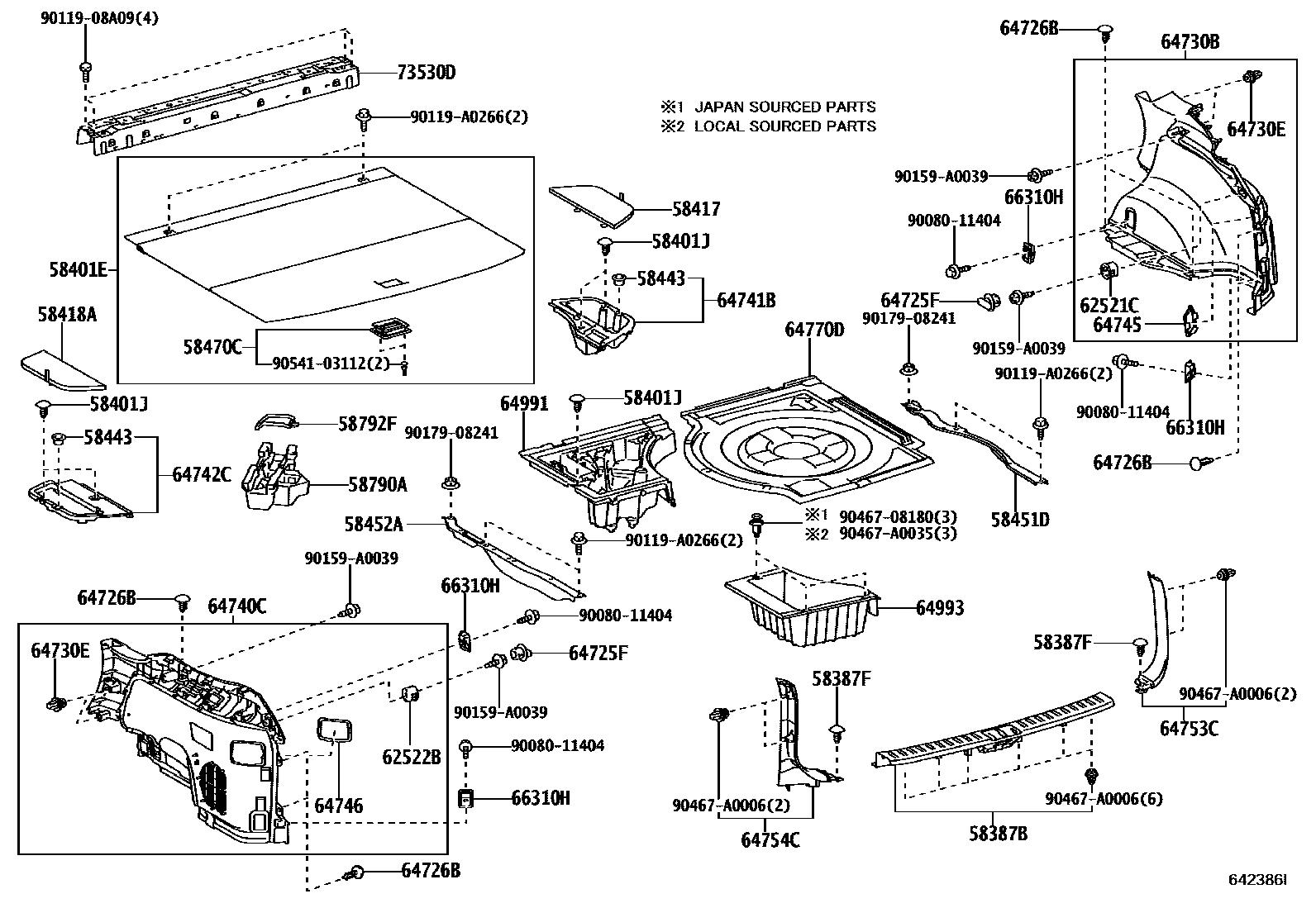

Parts diagram
58387BPLATE, REAR FLOOR FINISH
main58387-0E020-A0i200901-201204
IVORY,TRIM0#
main58387-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main58387-0E020-C0i200901-201204
BLACK,TRIM2#
main58387-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
main58387-48071-A0i201403
IVORY,TRIM0#
sub58387-48072
main58387-48071-C0i201403
BLACK,TRIM1#,2#,4#
sub58387-48072
58387FCLIP, REAR FLOOR FINISH PLATE
main90467-06020-C0i200901-201204
BLACK
sub90467-06020
58401EBOARD SUB-ASSY, DECK
main58410-0E020-A0i200901-201006
IVORY,TRIM0#
sub58410-0E021
main58410-0E020-B0i200901-201006
LT.GRAY,TRIM1#
sub58410-0E021
main58410-0E020-C0i200901-201006
BLACK,TRIM2#
sub58410-0E021
main58410-0E021-A0i201007-201204
IVORY,TRIM0#
main58410-0E021-B0i201007-201204
LT.GRAY,TRIM1#
main58410-0E021-C0i201204
BLACK,TRIM1#,2#,3#,4#
main58410-0E021-C0i201207
BLACK,TRIM2#,3#,4#
main58410-0E021-C0i201403
BLACK,TRIM1#,2#,4#
main58410-0E021-C0i201007-201204
BLACK,TRIM2#
58401JCLIP(FOR DECK BOAD)
main90467-06020-C0i200901-201204
BLACK
sub90467-06020
58417BOARD, REAR FLOOR, NO.3
main58417-0E010-A2i200901-201204
IVORY,TRIM0#
main58417-0E010-B2i200901-201204
LT. GRAY,TRIM1#
main58417-0E010-C2i201207
BLACK,TRIM2#,3#,4#
main58417-0E010-C2i200901-201204
BLACK,TRIM2#
main58417-0E010-C2i201204
BLACK,TRIM1#,2#,3#,4#
main58417-0E010-C2i201403
BLACK,TRIM1#,2#,4#
58418ABOARD, REAR FLOOR, NO.4
main58418-0E010-A2i200901-201204
IVORY,TRIM0#
main58418-0E010-B2i200901-201204
LT. GRAY,TRIM1#
main58418-0E010-C2i201403
BLACK,TRIM1#,2#,4#
main58418-0E010-C2i201207
BLACK,TRIM2#,3#,4#
main58418-0E010-C2i200901-201204
BLACK,TRIM2#
main58418-0E010-C2i201204
BLACK,TRIM1#,2#,3#,4#
58443CUSHION, DECK BOARD, NO.1
main58443-33010i200901-201204
58451DREINFORCEMENT, DECK BOARD, NO.1
main58451-0E010i200901-201204
58452AREINFORCEMENT, DECK BOARD, NO.2
main58452-0E010i200901-201204
58470CHANDLE ASSY, DECK BOARD
main58470-33010-A1i200901-201204
IVORY,TRIM0#
sub58470-33010
main58470-33010-B4i200901-201204
LT.GRAY,TRIM1#
sub58470-33010
main58470-33010-C0i200901-201204
BLACK,TRIM2#
sub58470-33010
main58470-33010-C0i201204
BLACK,TRIM1#,2#,3#,4#
sub58470-33010
main58470-33010-C0i201403
BLACK,TRIM1#,2#,4#
sub58470-33010
58790ACARRIER ASSY, JACK
main58790-0E020i200901-201204
58792FSUPPORT, JACK CARRIER
main58792-0E010i200901-201204
62521CCOVER, QUARTER TRIM RH
main62521-48020i200901-201510
62522BCOVER, QUARTER TRIM LH
main62521-48020i200901-201510
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-48020-A0i200901-201204
IVORY,TRIM0#
main64725-48020-B0i200901-201204
LT.GRAY,TRIM1#
main64725-48020-C0i200901-201204
BLACK,TRIM2#
main64725-48020-C0i201204
BLACK,TRIM1#,2#,3#,4#
main64725-48020-C0i201403
BLACK,TRIM1#,2#,4#
64726BCLIP, DECK REAR TRIM
main90467-A0002i200901-201001
main90467-A0002-C0i201001-201204
BLACK
sub90467-A0002
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-0E020-A0i200901-201204
IVORY,TRIM0#
main64730-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main64730-0E020-C0i200901-201204
BLACK,TRIM2#
main64730-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
main64730-0E020-C0i201207
BLACK,TRIM2#,3#,4#
main64730-0E020-C0i201403
BLACK,TRIM1#,2#,4#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main63395-12150i200901-201105
main90467-A0033i201106-201204
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-0E020-A0i200901-201204
IVORY,TRIM0#
main64740-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main64740-0E020-C0i201403
BLACK,TRIM1#,2#,4#
main64740-0E020-C0i200901-201204
BLACK,TRIM2#
main64740-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
main64740-0E020-C0i201207
BLACK,TRIM2#,3#,4#
64741BBOX, DECK SIDE TRIM, RH
main64741-0E020i200901-201204
64742CBOX, DECK SIDE TRIM, LH
main64742-0E020i200901-201204
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-0E010-A0i200901-201204
IVORY,TRIM0#
main64745-0E010-B0i200901-201204
LT.GRAY,TRIM1#
main64745-0E010-C0i200901-201204
BLACK,TRIM2#
main64745-0E010-C0i201204
BLACK,TRIM1#,2#,3#,4#
main64745-0E010-C0i201207
BLACK,TRIM2#,3#,4#
main64745-0E010-C0i201403
BLACK,TRIM1#,2#,4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-0E010-A0i200901-201204
IVORY,TRIM0#
main64746-0E010-B0i200901-201204
LT.GRAY,TRIM1#
main64746-0E010-C0i201207
BLACK,TRIM2#,3#,4#
main64746-0E010-C0i201403
BLACK,TRIM1#,2#,4#
main64746-0E010-C0i200901-201204
BLACK,TRIM2#
main64746-0E010-C0i201204
BLACK,TRIM1#,2#,3#,4#
64753CPLATE, REAR FLOOR FINISH SIDE, RH
main64753-0E020-A0i200901-201204
IVORY,TRIM0#
main64753-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main64753-0E020-C0i201403
BLACK,TRIM1#,2#,4#
main64753-0E020-C0i200901-201204
BLACK,TRIM2#
main64753-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
main64754-0E020-A0i200901-201204
IVORY,TRIM0#
main64754-0E020-B0i200901-201204
LT.GRAY,TRIM1#
main64754-0E020-C0i201204
BLACK,TRIM1#,2#,3#,4#
main64754-0E020-C0i201403
BLACK,TRIM1#,2#,4#
main64754-0E020-C0i200901-201204
BLACK,TRIM2#
64770DCOVER ASSY, SPARE WHEEL
main64771-0E010i200901-201204
64991BOX, DECK FLOOR, FRONT
main64991-0E020i200901-201204
64993BOX, DECK FLOOR, REAR
main64993-0E020i200901-201204
main64993-48060i201403
66310HHOOK ASSY, ROPE
main66310-30011-A1i200901-201204
IVORY,TRIM0#
sub66310-30011
main66310-30011-B2i200901-201204
LT.GRAY,TRIM1#
sub66310-30011
main66310-30011-C0i201204
BLACK,TRIM1#,2#,3#,4#
sub66310-30011
main66310-30011-C0i201403
BLACK,TRIM1#,2#,4#
sub66310-30011
main66310-30011-C0i200901-201204
BLACK,TRIM2#
sub66310-30011
73530DPANEL ASSY, REAR SEAT SUB FLOOR
main73530-0E020i200901-201402
sub73530-0E021
main73530-0E021i201403
9008011404
main90080-11404
9011908A09
main90119-08A09
90119A0266
main90119-A0266
90159A0039
main90159-A0039
9017908241
main90179-08241
9046708180
main90467-08180
90467A0006
main90467-A0006
90467A0035
main90467-A0035
9054103112
main90541-03112

39 parts on this diagram · 3 diagrams in section
