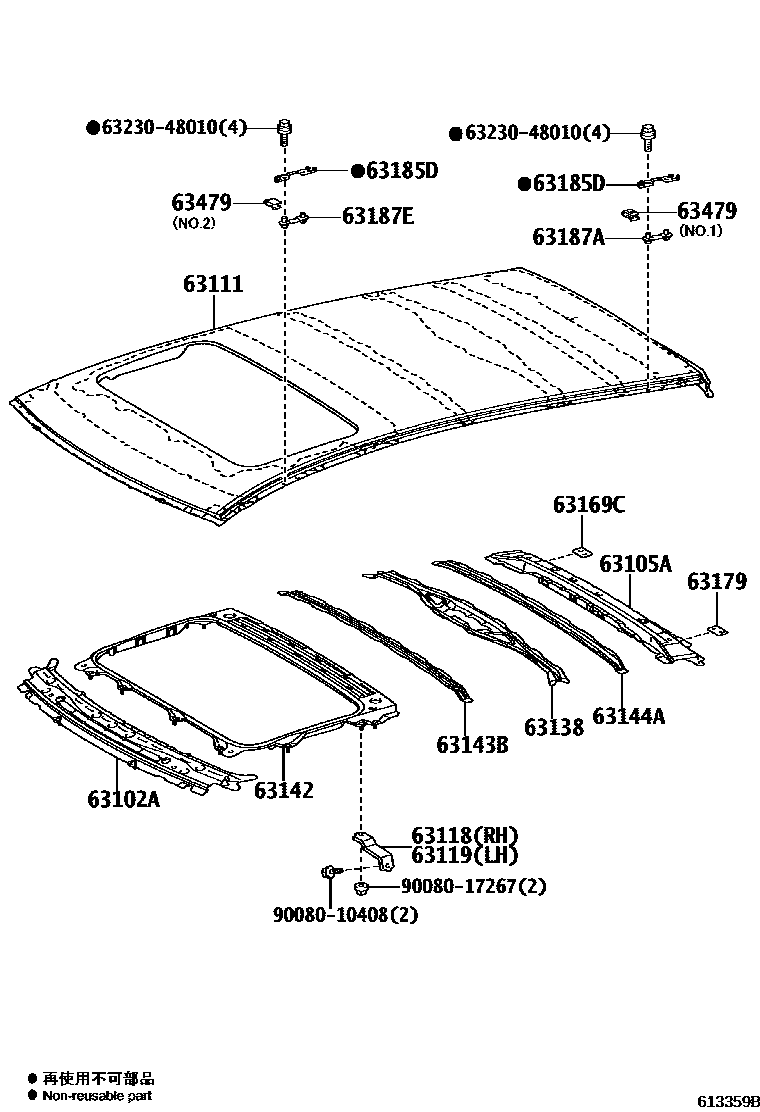

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63138BRACKET, DOME LAMP, NO.2
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63169CRETAINER, ROOF REINFORCEMENT, NO.2
63179PLATE, ROOF PANEL REINFORCEMENT, LH
63185DBRACKET, ROOF RACK, FRONT
63187ABRACKET, ROOF RACK, REAR
63187EBRACKET, ROOF RACK, REAR
63479RETAINER, ROOF INNER RACK
NO.1
NO.2
6323048010MOULDING ASSY, ROOF WINDOW, SIDE
main63230-48010
9008010408
main90080-10408
9008017267
main90080-17267
18 parts on this diagram · 3 diagrams in section
