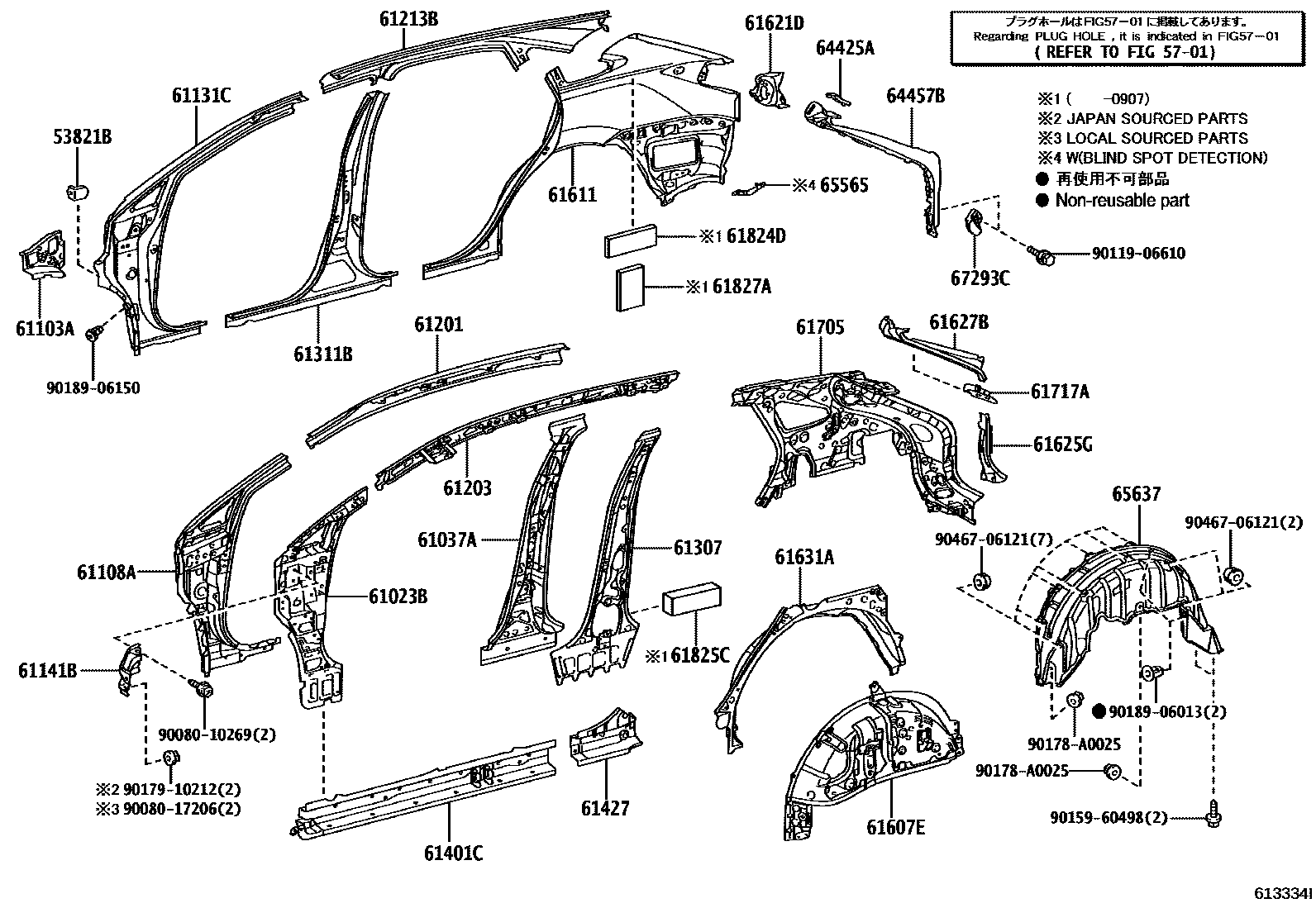

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61141BGUSSET, FRONT BODY PILLAR, UPPER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61824DPLATE, NOISE CONTROL, NO.1
61825CPAD, NOISE SHUTTER, NO.2
61827APLATE, NOISE CONTROL, NO.4
64425APLUG, QUARTER PANEL, RH
64457BCOVER, BACK DOOR STOPPER CUSHION, RH
65565PATCH, SIDE PANEL REAR END, RH
LANE CHANGE ASSIST-WITH(BLIND SPOT DETECTION)
65637LINER, REAR WHEEL HOUSE, RH
67293CCUSHION, BACK DOOR STOPPER
9008010269
main90080-10269
9008017206
main90080-17206
9011906610
main90119-06610
9015960498
main90159-60498
90178A0025
main90178-A0025
9017910212
main90179-10212
9018906013
main90189-06013
9018906150
main90189-06150
9046706121
main90467-06121
40 parts on this diagram · 2 diagrams in section
