FLOOR SIDE MEMBER
51967DHOOK SUB-ASSY,REAR
TOWING HITCH-TOWING RECIEVE HITCH & W/H
TOWING HITCH-TOWING RECIEVE HITCH & W/H
51968DHOOK, TRANSPORT, REAR LH
TOWING HITCH-TOWING RECIEVE HITCH & W/H
TOWING HITCH-TOWING RECIEVE HITCH & W/H
5701
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH
57448ABRACKET, DIFF LOCK LEVER MOUNT, NO.1
57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2
57453MEMBER, FRONT FLOOR CROSS, NO.3
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57661BMEMBER, REAR FLOOR CROSS, FRONT
58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108EREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58117BREINFORCEMENT, FRONT FLOOR SIDE, RH
58118DREINFORCEMENT, FRONT FLOOR SIDE, LH
4475348010CLAMP, VACUUM RESERVOIR, NO.2
main44753-48010
4475348040CLAMP, VACUUM RESERVOIR, NO.2
main44753-48040
9008010274
main90080-10274
9008011180
main90080-11180
9008011591
main90080-11591
9008011654
main90080-11654
9008411057
main90084-11057
90105A0233
main90105-A0233
9011912391
main90119-12391
9018906150
main90189-06150

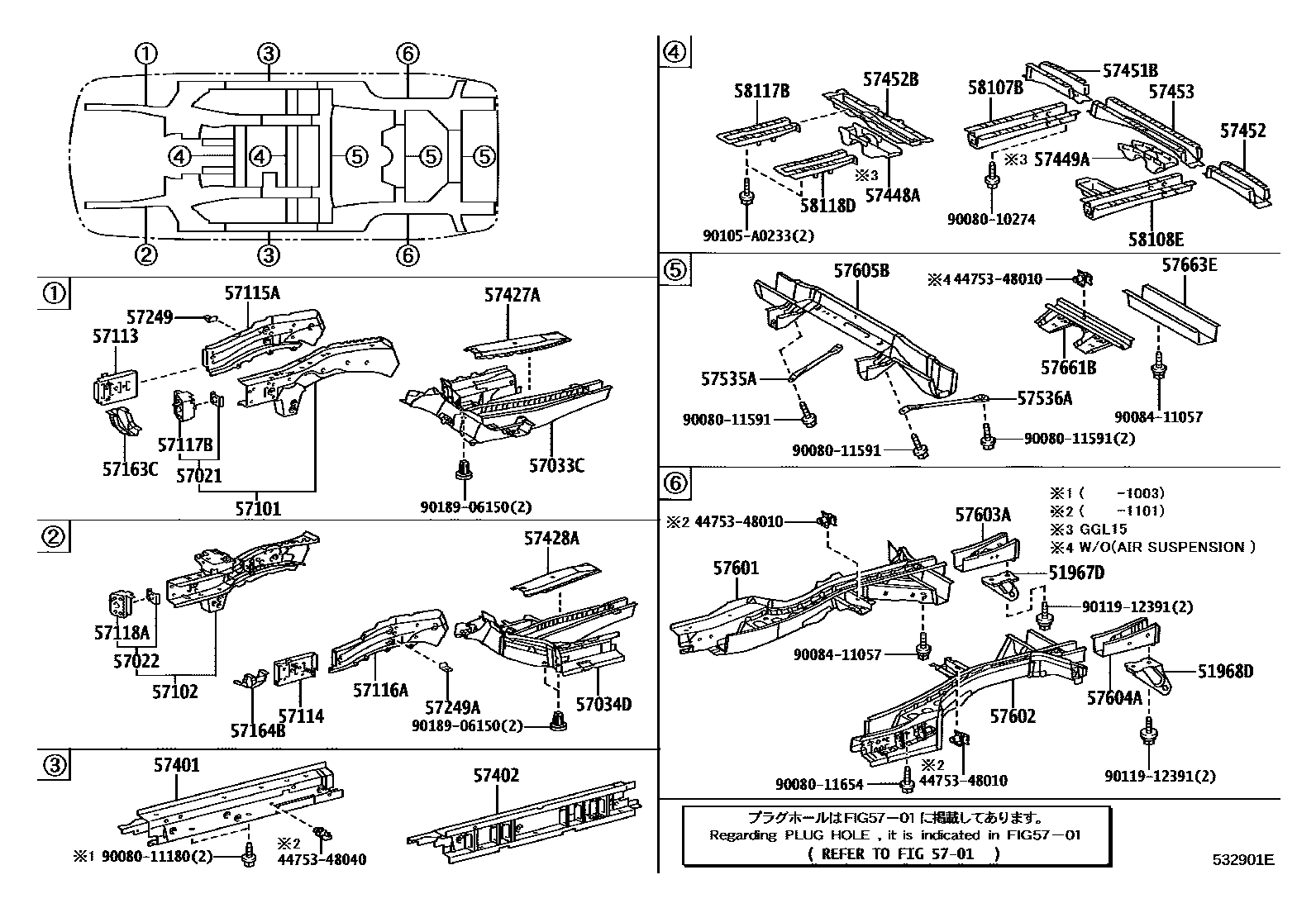

52 parts on this diagram · 4 diagrams in section
