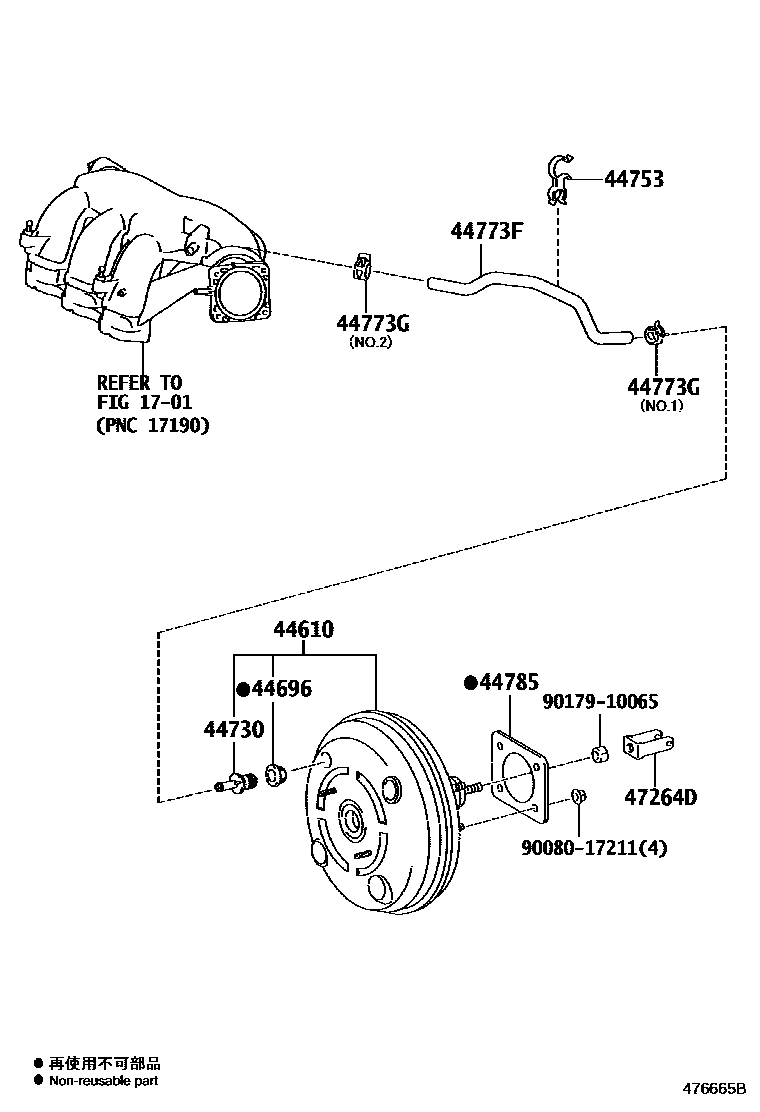

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-0E030iGGL1#..NAP200901-201403

main44610-0E031iGGL1#..NAP201403-201510

44696GROMMET, CHECK VALVE

main90080-48071iGGL1#..NAP200901-201204

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGGL1#..NAP200901-201204

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48310iGGL1#..NAP200901-201204

44773FHOSE, UNION TO CHECK VALVE

main44773-0E010iGGL1#..NAP200901-201204

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGGL1#..NAP200901-201204

NO.1

main96136-41801iGGL1#..NAP200901-201204

NO.2

44785GASKET, BRAKE BOOSTER

main44785-07010iGGL1#..NAP200901-201204

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iGGL1#..NAP201204

W/MARK

main47264-48020iGGL1#..NAP200901-201204

main47264-48020iGGL1#..NAP201204-201206

W/O MARK

9008017211

main90080-17211

9017910065

main90179-10065

11 parts on this diagram · 1 diagram in section
