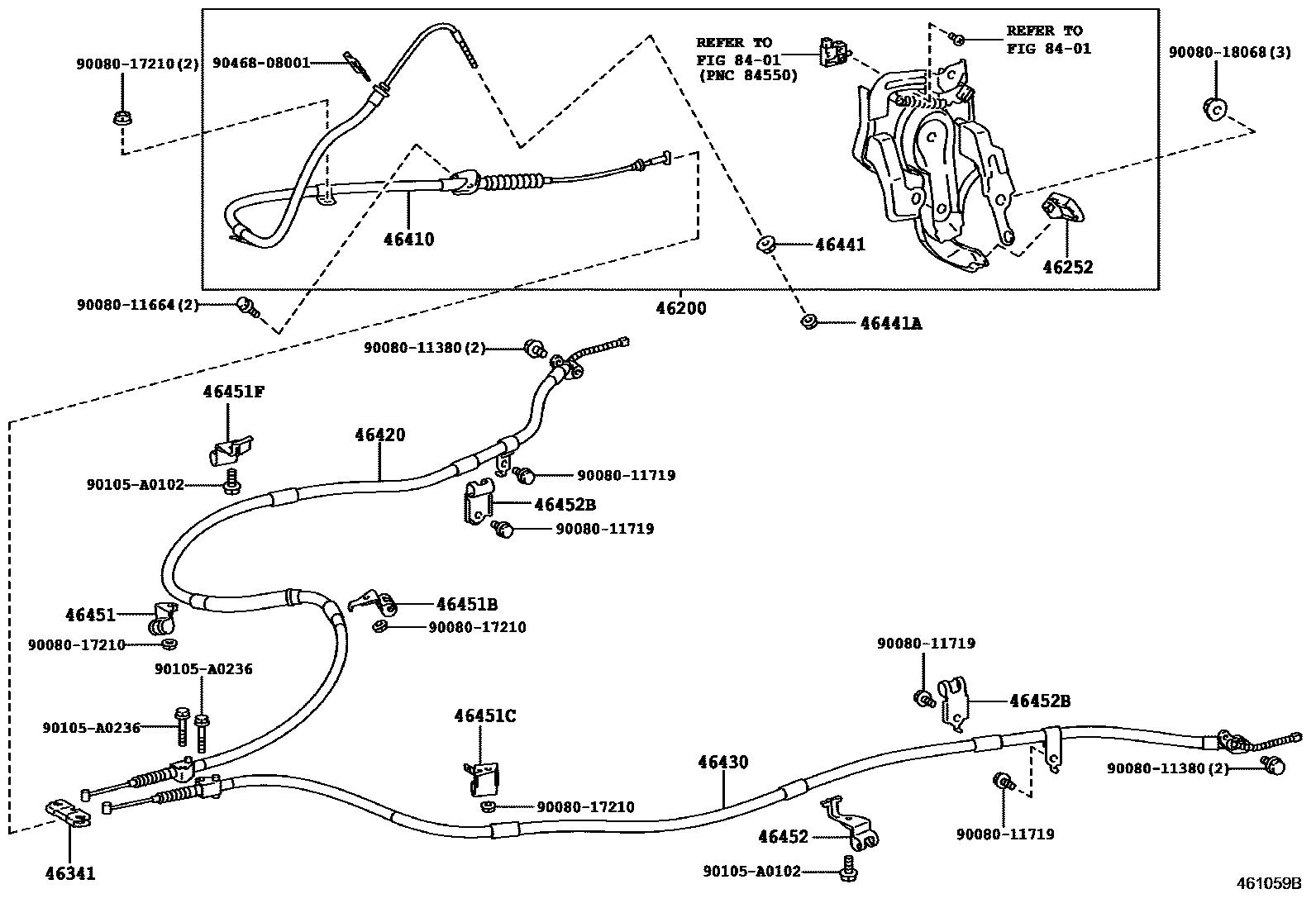

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0E020iGGL1#..NAP200901-201510

main46200-48170iGYL1#..NAP201403-201510

46252PAD, PARKING PEDAL

main46252-22010iGGL1#..NAP200901-201310

main46252-47010iGGL1#,GYL1#..NAP201311

46341EQUALIZER, PARKING BRAKE

main46341-48010iGGL1#..NAP200901-201204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0E020iGGL1#..NAP200901-201204

main46410-48170iGYL1#..NAP201403

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0E020iGGL1#..NAP200901-201209

sub46420-0E021

main46420-0E021iGGL1#..NAP201210

main46420-48161iGYL1#..NAP201403

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0E020iGGL1#..NAP200901-201209

sub46430-0E021

main46430-0E021iGGL1#..NAP201210

main46430-48161iGYL1#..NAP201403

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGGL1#,GYL1#..NAP200901-201204

46441ANUT, WIRE ADJUSTING, NO.2

main90178-A0023iGGL1#..NAP200901-201204

46451BRACKET, CABLE SUPPORT

main46451-0E010iGGL1#..NAP200901-201002

main46451-0E010iGGL1#..NAP201002-201204

(L)

main46451-48180iGYL1#..NAP201403

(L)

main46451-48190iGGL1#..NAP201002-201204

(J)

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-0E021iGGL1#..NAP200901-201204

main46451-48260iGYL1#..NAP201403

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-0E030iGGL1#..NAP200901-201204

main46451-48250iGYL1#..NAP201403

46451FBRACKET, CABLE SUPPORT

main46451-0E040iGGL1#..NAP200901-201204

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-0E050iGGL1#..NAP200901-201204

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-0E060iGGL1#..NAP200901-201204

8401

9008011380

main90080-11380

9008011664

main90080-11664

9008011719

main90080-11719

9008017210

main90080-17210

9008018068

main90080-18068

90105A0102

main90105-A0102

90105A0236

main90105-A0236

9046808001

main90468-08001

23 parts on this diagram · 3 diagrams in section
