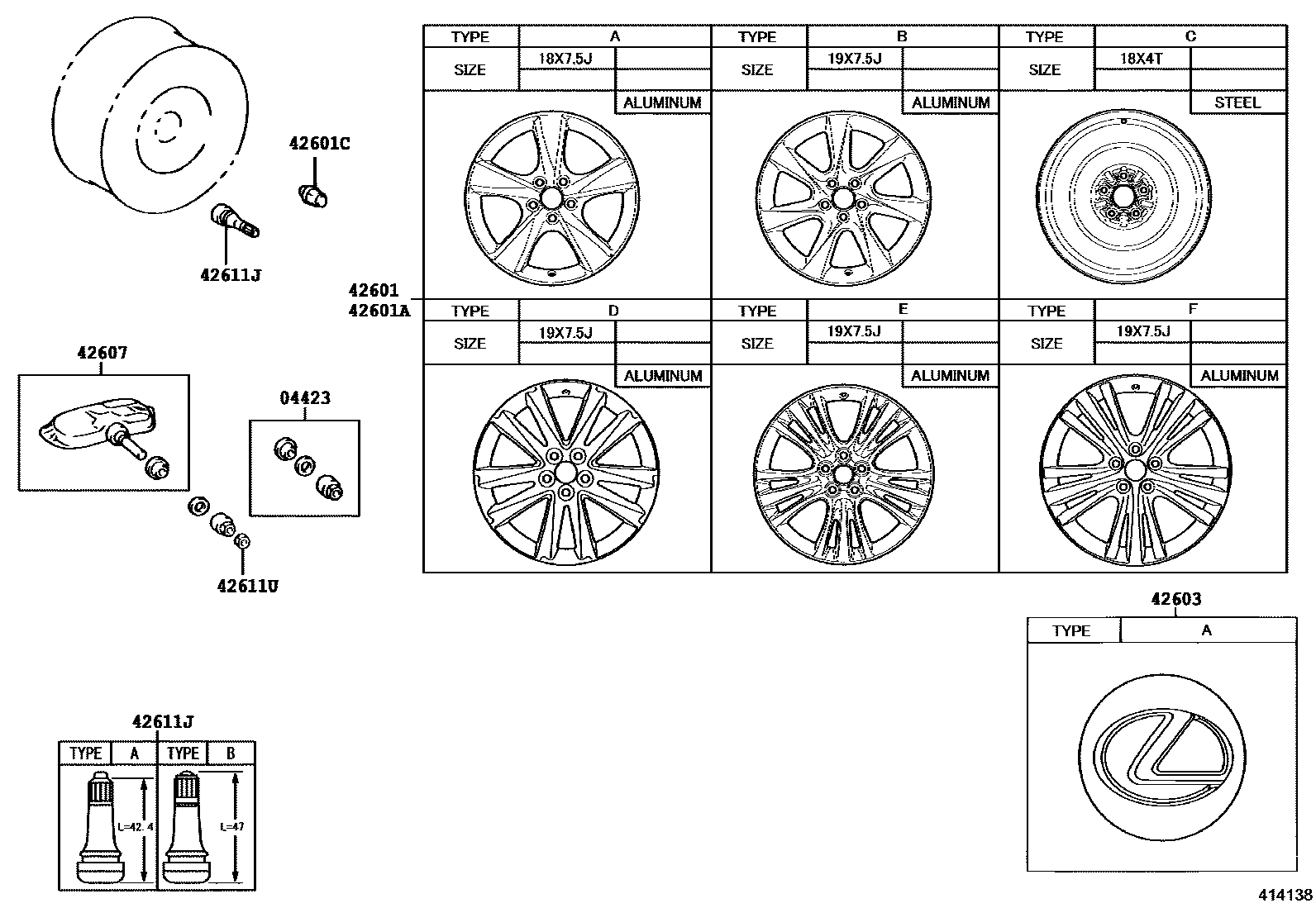

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iGGL1#..NAP200901-201204

42601WHEEL, DISC

main42611-0E040iGGL1#..NAP200901-200906

18X7.5J,#,TYPE A:REFER ILLUST.

sub42611-0E200

main42611-0E200iGGL15..NAP..6FC;GGL10,GYL1#..NAP200907-201204

18X7.5J,#,TYPE A:REFER ILLUST.

sub42611-0E220

main4261A-0E070iGGL15..NAP..8FC201207

19X7.5J,#,TYPE D:REFER ILLUST.

sub4261A-0E080

42601AWHEEL, DISC (FOR SPARE)

main42611-0T030iGGL1#..NAP200901-201204

18X4T,TYPE C:REFER ILLUST.

sub42611-0T031

42601CNUT, HUB (FOR AXLE)

main90084-94001iGGL15..NAP..6FC;GGL10,GYL1#..NAP200901-201204

WHEEL LOCKS-WITH

sub90942-A1009

main90084-94001iGGL15..NAP..6FC;GGL10,GYL1#..NAP201204

WHEEL LOCKS-WITH&TIRE & DISK WHEEL-235/55R19 ALUMI M + S

sub90942-A1009

main90084-94001iGGL1#..NAP200901-201204

SPORT PACKAGE&WHEEL LOCKS-WITH

sub90942-A1009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0E010iGGL15..NAP..6FC;GGL10,GYL1#..NAP200901-201204

*ALU,TYPE A:REFER ILLUST.

sub42603-50300

main42603-53110iGGL15..NAP..8FC201207

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-0E011iGGL1#..NAP200901-201204

sub42607-0E012

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iGGL1#,GYL1#..NAP201204

TYPE A:REFER ILLUST.

main90080-45006iGGL1#..NAP200901-201204

TYPE B:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-A5003iGGL1#..NAP200901-201209

sub90942-A5006

main90942-A5006iGGL1#,GYL1#..NAP201209

8 parts on this diagram · 1 diagram in section
