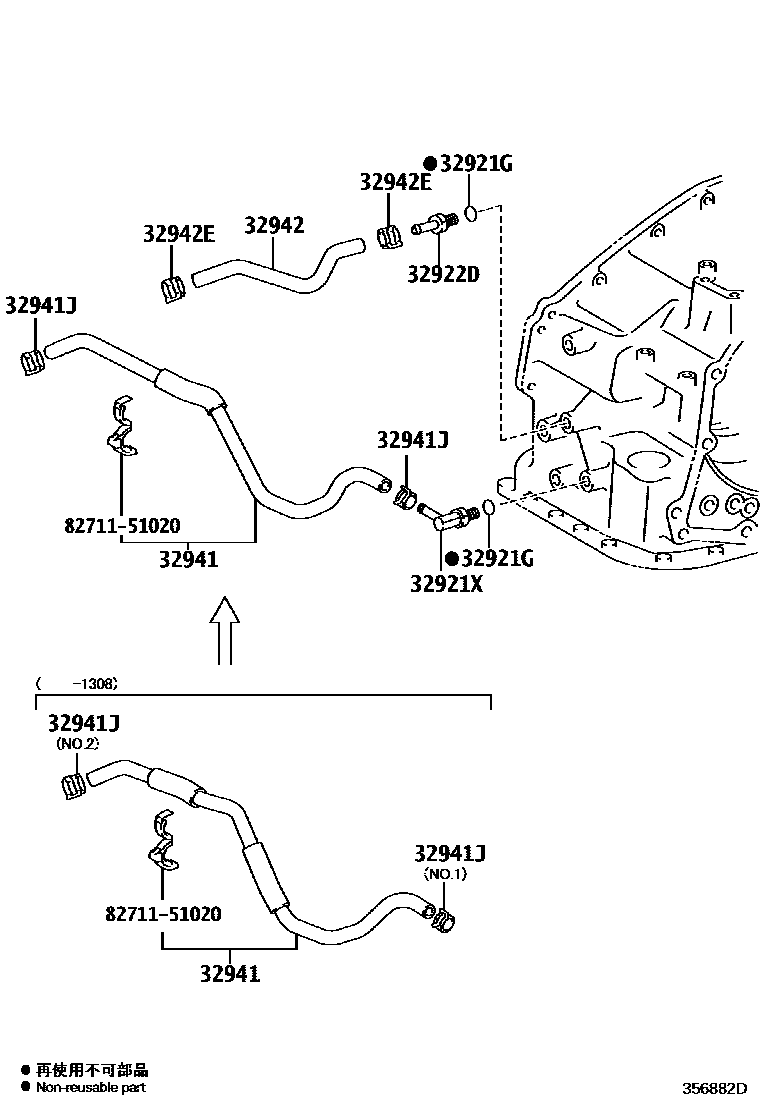

OIL COOLER & TUBE (ATM)

0001 1 0002 1W(OIL COOLER) 0003 1

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11033iGGL15..NAP..8FC¥160201207

main90301-A0022iGGL1#..NAP200901-201204

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iGGL1#..NAP..6FC¥750201309-201505

main90404-A0002iGGL1#..NAP..6FC201506

main90407-14032iGGL1#..NAP..6FC¥400200901-201309

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iGGL1#..NAP¥750200901-201505

main90404-A0002iGGL1#..NAP..6FC201506

32941HOSE, OIL COOLER INLET, NO.1

main32930-0E020iGGL1#..NAP200901-200909

sub32930-0E021

main32930-0E021iGGL1#..NAP200910-200911

sub32930-0E022

main32930-0E022iGGL1#..NAP200912-201205

main32930-0E090iGGL1#..NAP..6FC201206-201308

main32930-0E100iGGL1#..NAP..6FC201308

main32941-0E070iGGL15..NAP..8FC201207

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iGGL1#..NAP¥180201004-201204

(J)

main90466-16004iGGL1#..NAP¥180200901-201004

main90466-A0004iGGL15..NAP..8FC¥300201207

main90466-A0014iGGL1#..NAP201004-201204

(L)

main90466-A0014iGGL1#..NAP..6FC201204

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0E010iGGL1#..NAP200901-201205

main32942-0E060iGGL15..NAP..8FC201207

main32942-0E100iGGL1#..NAP..6FC201206

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iGGL1#..NAP¥180200901-201004

main90466-16004iGGL1#..NAP¥180201004-201204

(J)

main90466-A0004iGGL15..NAP..8FC¥300201207

main90466-A0014iGGL1#..NAP201004-201204

(L)

main90466-A0014iGGL1#..NAP..6FC201204

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020¥160

8 parts on this diagram · 3 diagrams in section
