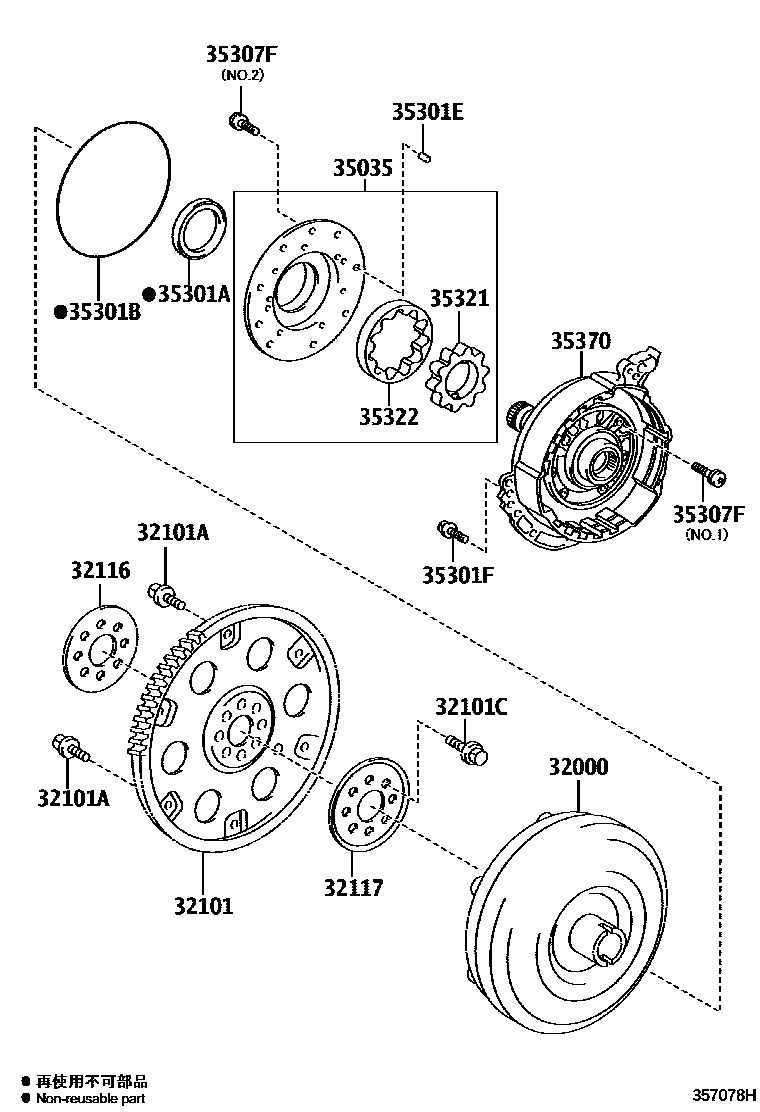

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13,(J)
*10-1.25PX18-13,(J),(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
(J)
(L)
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
(J)
(L)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX25-25
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
(J),NO.1
(J),NO.2
NO.2
(L),NO.2
(L),NO.1
NO.1
35321GEAR, FRONT OIL PUMP DRIVE
T=11.567,MARK 1,(L)
T=11.567,MARK 2,(L)
T=11.567,MARK 3,(L)
T=11.567,MARK 4,(L)
T=11.567,MARK 5,(L)
T=11.567,MARK 1,(J)
T=11.567,MARK 2,(J)
T=11.567,MARK 3,(J)
T=11.567,MARK 4,(J)
T=11.567,MARK 5,(J)
T=10.298,MARK A
T=10.298,MARK B
T=10.298,MARK C
T=10.298,MARK D
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.567,MARK 1,(L)
T=11.567,MARK 2,(L)
T=11.567,MARK 3,(L)
T=11.567,MARK 4,(L)
T=11.567,MARK 5,(L)
T=11.567,MARK 1,(J)
T=11.567,MARK 2,(J)
T=11.567,MARK 3,(J)
T=11.567,MARK 4,(J)
T=11.567,MARK 5,(J)
T=10.298,MARK A
T=10.298,MARK B
T=10.298,MARK C
T=10.298,MARK D
35370SHAFT ASSY, STATOR
(L)
(J)
15 parts on this diagram · 2 diagrams in section
