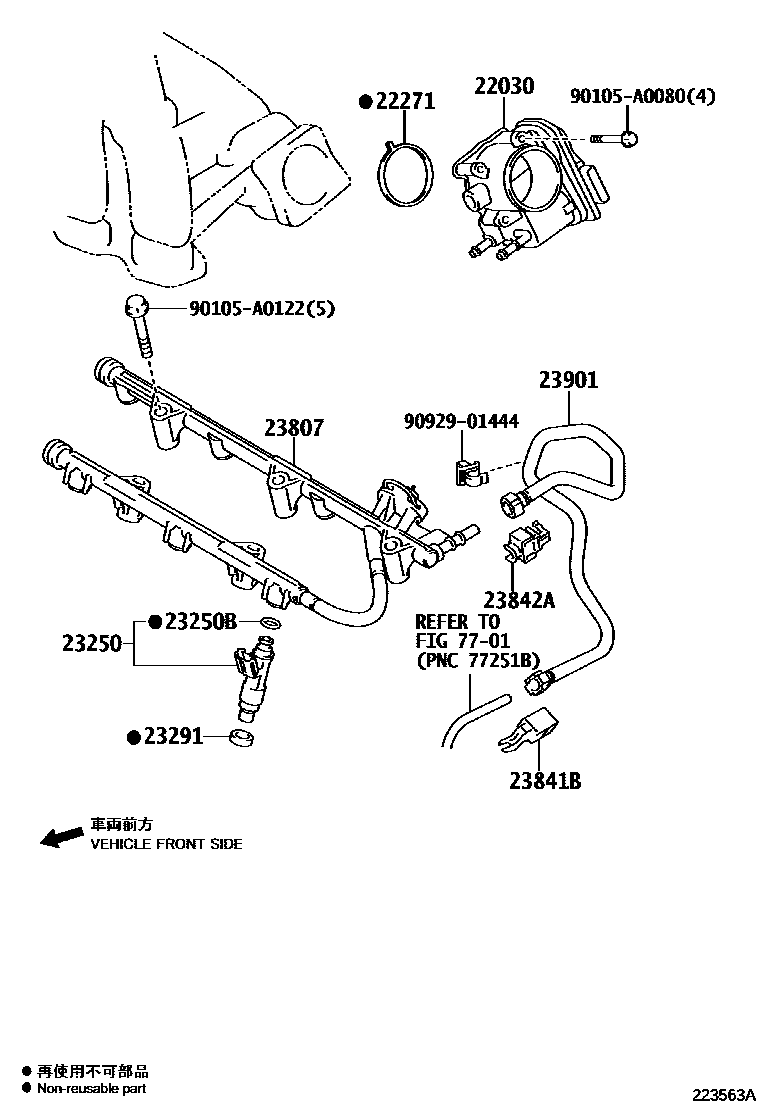

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(L)
(L)
(J)
23250INJECTOR ASSY, FUEL
*133
*132
23250BRING, O(FOR FUEL INJECTOR)
*133,*132
*132
(L),*133
23291INSULATOR, INJECTOR VIBRATION
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701
90105A0080
main90105-A0080
90105A0122
main90105-A0122
9092901444
13 parts on this diagram · 2 diagrams in section
