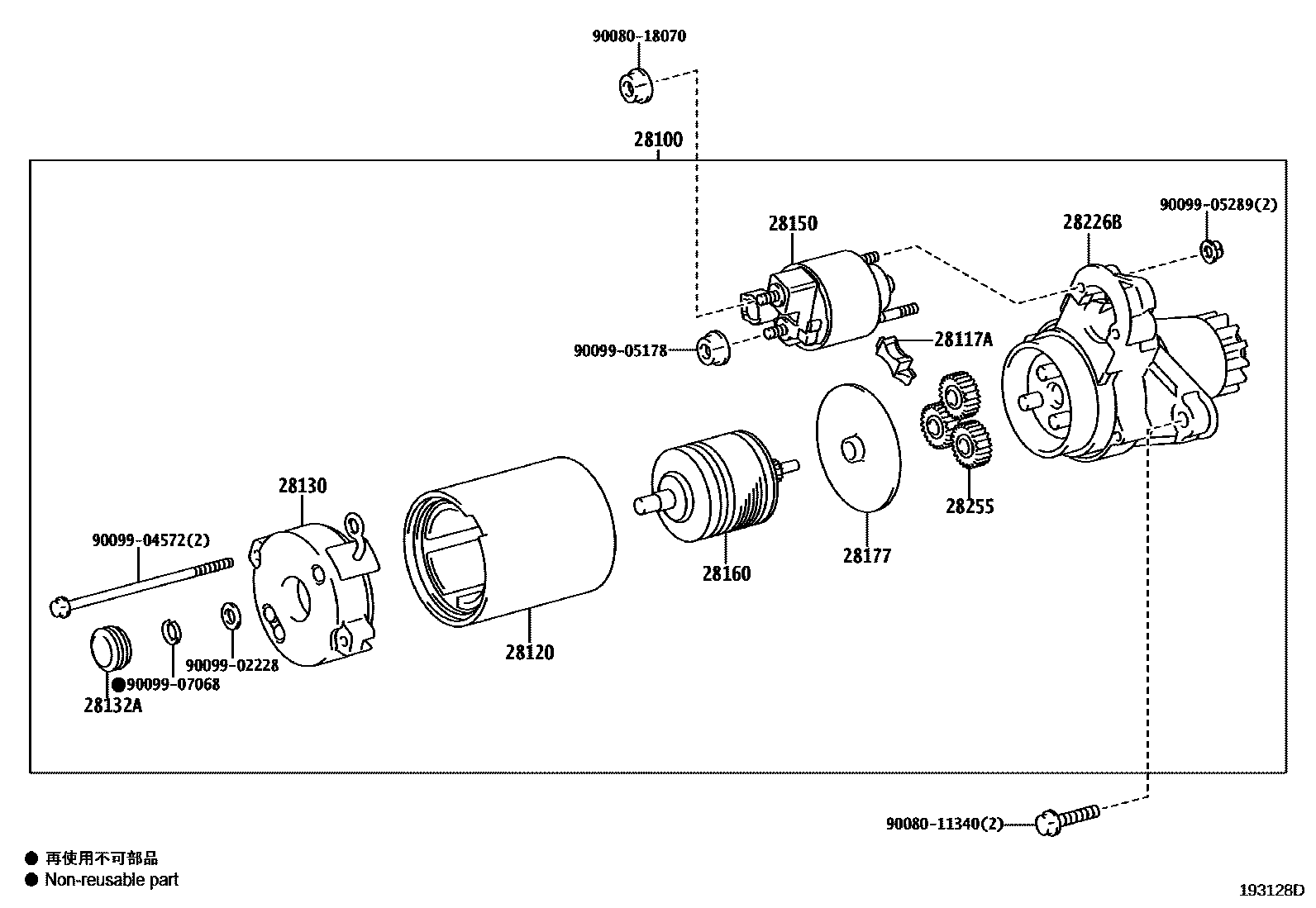

STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW

28100STARTER ASSY

main28100-0P030i2GRFE..GGL1#..NAP200901-200904

12V 1.7KW

sub28100-0P031

main28100-0P031i2GRFE..GGL1#..NAP200905-200911

12V 1.7KW

sub28100-0P032

main28100-0P032i2GRFE..GGL1#..NAP200912-201208

12V 1.7KW

sub28100-0P080

main28100-0P070i2GRFE..GGL15..NAP..8FC201207

12V 1.7KW

sub28100-0P150

main28100-0P080i2GRFE..GGL1#..NAP..6FC201209

12V 1.7KW

28117ASEAL, RUBBER

main28117-0P030i2GRFE..GGL1#..NAP200901-201209

28120YOKE ASSY, STARTER

main28120-0P030i2GRFE..GGL1#..NAP200901-201209

main28120-28060i2GRFE..GGL15..NAP..8FC201207

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0P070i2GRFE..GGL15..NAP..8FC201207

sub28130-31200

main28130-20020i2GRFE..GGL1#..NAP..6FC200901-201204

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFE..GGL1#..NAP200901-201204

28150SWITCH ASSY, MAGNET STARTER

main28150-31090i2GRFE..GGL1#..NAP200901-201209

main28150-31100i2GRFE..GGL1#..NAP200905-201201

sub28150-31090

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GGL1#..NAP200901-201204

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFE..GGL1#..NAP200901-201204

28226BSTARTER KIT, REPAIR SERVICE

main28226-0P030i2GRFE..GGL1#..NAP200901-201209

main28226-0P070i2GRFE..GGL15..NAP..8FC201207

sub28226-31200

main28226-28041i2GRFE..GGL1#..NAP..6FC201209

28255GEAR, PLANET

main28255-0A010i2GRFE..GGL1#..NAP201012-201209

main28255-20020i2GRFE..GGL1#..NAP..6FC200901-201012

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

17 parts on this diagram · 3 diagrams in section
