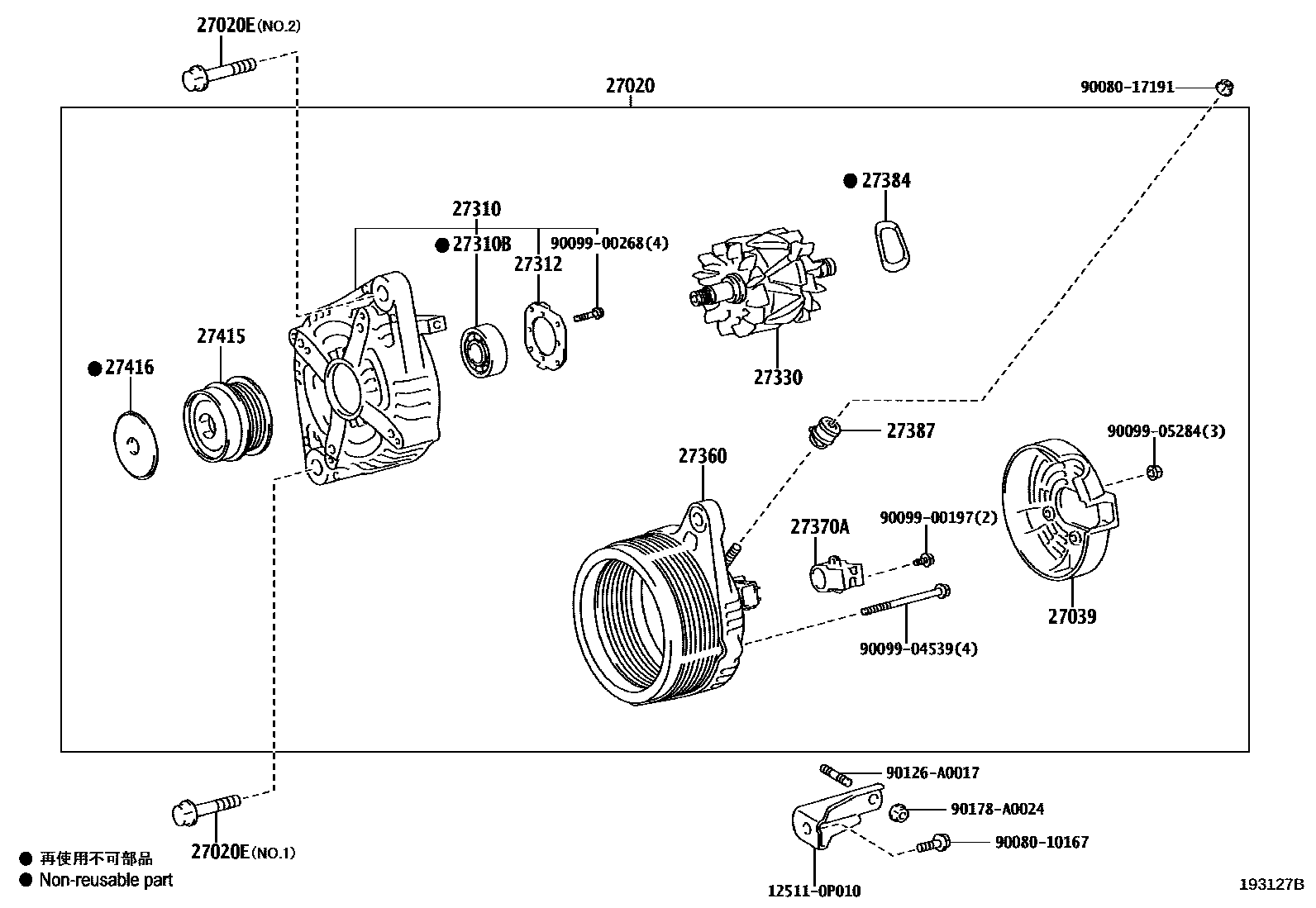

ALTERNATOR

27020ALTERNATOR ASSY

main27060-0P241i2GRFE..GGL1#..NAP200901-201307

12V 150A

main27060-0P340i2GRFE..GGL1#..NAP201308

12V 150A

27020EBOLT(FOR ALTERNATOR)

main90105-A0107i2GRFE..GGL1#..NAP200901-201204

NO.1

main90105-A0129i2GRFE..GGL1#..NAP200901-201204

NO.2

27039COVER, ALTERNATOR REAR END

main27039-0A110i2GRFE..GGL1#..NAP200901-200906

main27039-0T040i2GRFE..GGL1#..NAP200906-201308

main27039-31390i2GRFE..GGL1#..NAP201308

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P140i2GRFE..GGL1#..NAP200901-201308

main27310-31290i2GRFE..GGL1#..NAP201308

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2GRFE..GGL1#..NAP200901-201308

main90099-10223i2GRFE..GGL1#..NAP201308

27312PLATE, RETAINER

main27312-72100i2GRFE..GGL1#..NAP200901-201204

27330ROTOR ASSY, ALTERNATOR

main27330-0A110i2GRFE..GGL1#..NAP200901-201308

main27330-58460i2GRFE..GGL1#..NAP201308

27360COIL ASSY, ALTERNATOR

main27360-0P240i2GRFE..GGL1#..NAP200901-201308

sub27360-31370

main27360-31491i2GRFE..GGL1#..NAP201308

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i2GRFE..GGL1#..NAP200901-201308

main27370-31220i2GRFE..GGL1#..NAP201308

27384WASHER

main27384-0A020i2GRFE..GGL1#..NAP200901-201308

main27384-50030i2GRFE..GGL1#..NAP201308

27387INSULATOR, TERMINAL

main27387-0V060i2GRFE..GGL1#..NAP201010-201308

main27387-20130i2GRFE..GGL1#..NAP200901-201010

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i2GRFE..GGL1#..NAP200901-201306

sub27415-0W131

main27415-0W131i2GRFE..GGL1#..NAP201307

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GRFE..GGL1#..NAP200901-201204

125110P010BRACKET, ALTERNATOR, NO.1

main12511-0P010

9008010167

main90080-10167

9008017191

main90080-17191

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90126A0017

main90126-A0017

90178A0024

main90178-A0024

22 parts on this diagram · 1 diagram in section
