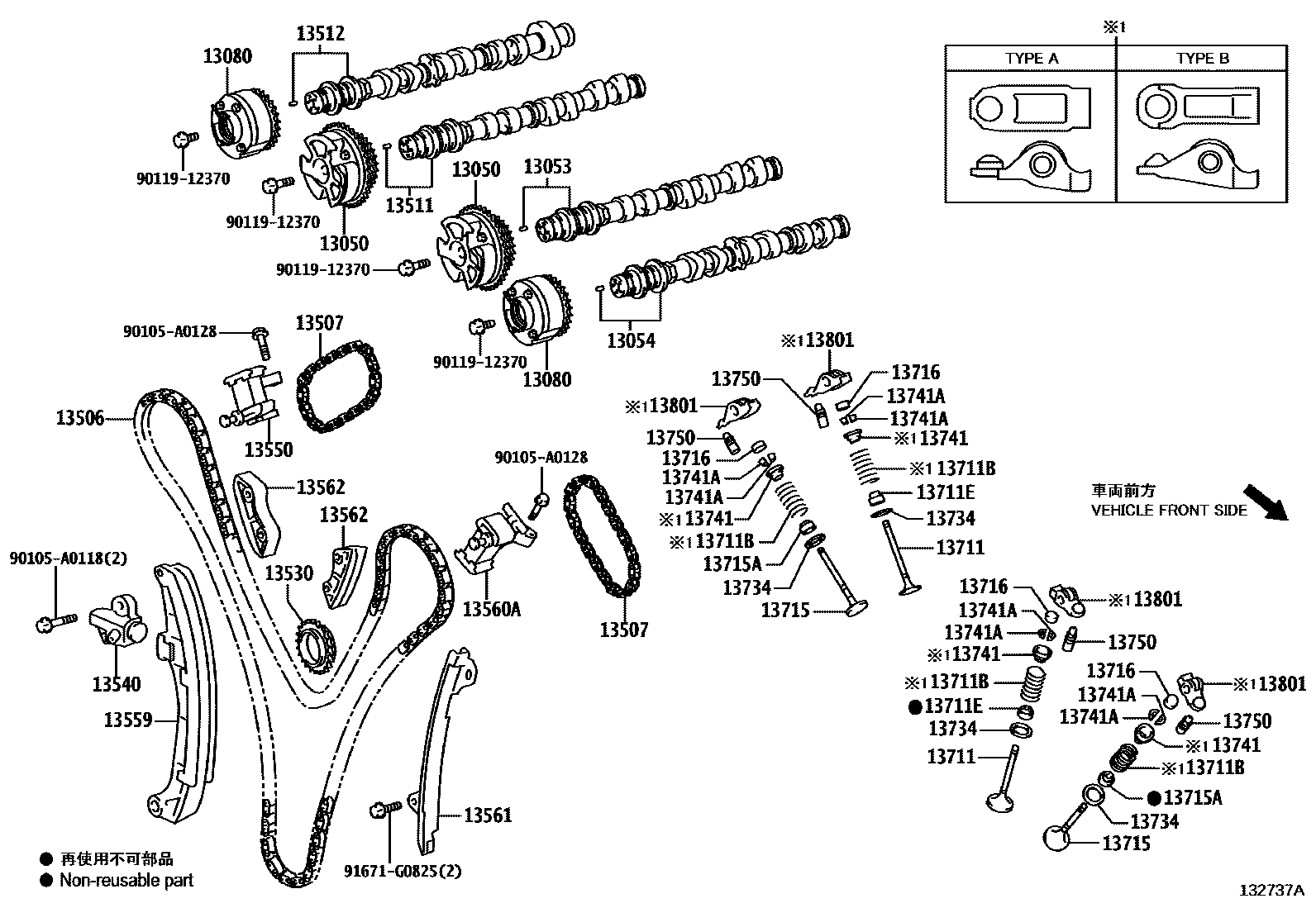

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
sub13080-31050
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13801=TYPE B
(J),PNC 13801=TYPE A
PNC 13801=TYPE A
(L),PNC 13801=TYPE A
PNC 13801=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13801=TYPE A
PNC 13801=TYPE B
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
90105A0118
main90105-A0118
90105A0128
main90105-A0128
9011912370
main90119-12370
91671G0825
main91671-G0825
30 parts on this diagram · 2 diagrams in section
