STANDARD TOOL

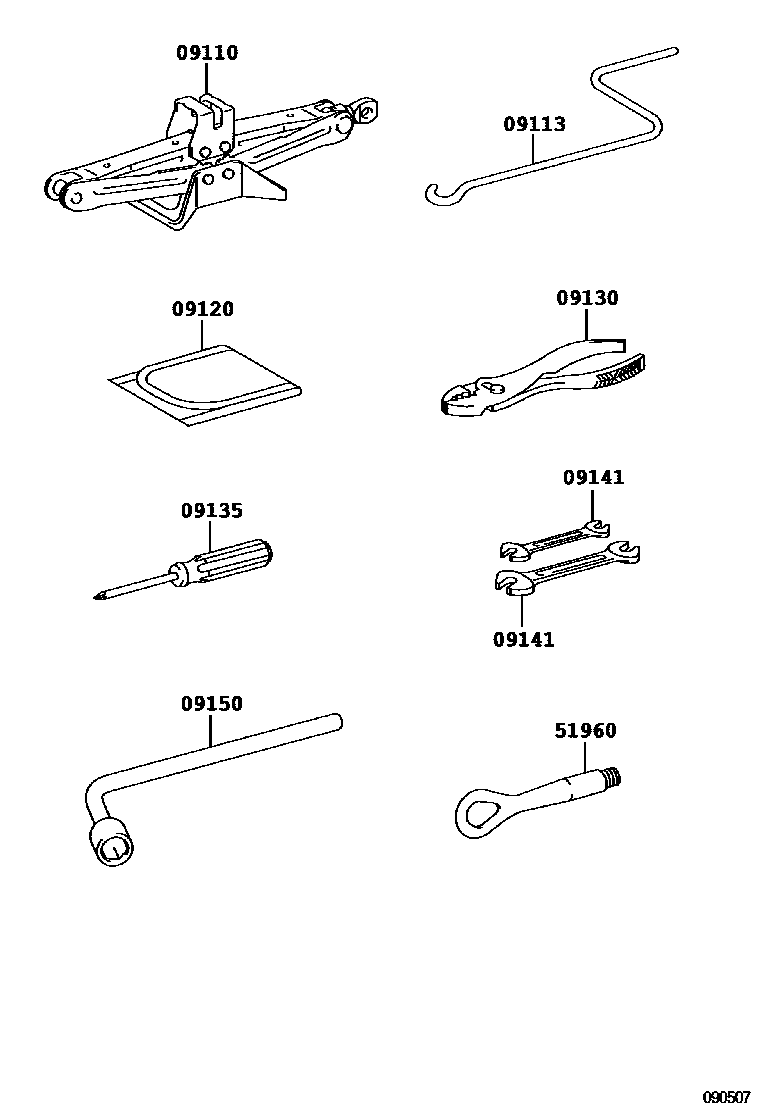

Parts diagram
09110JACK ASSY
main09111-0E010i200901-201108
main09111-0E011i201109-201204
09113HANDLE, JACK
main09113-06020i200901-201204
09120BAG, TOOL
main09120-48010i200901-201403
09130PLIERS
main09130-50030i200901-200906
main09130-50040i200907-201403
09135DRIVER, SCREW
main09135-50050i200901-200906
main09135-50060i201001-201403
main99915-10700i200907-200912
09141SPANNER
main09141-50050i200901-200906
8 X 10
main09141-50060i200901-200906
12 X 14
main09141-60010i200907-201208
8 X 10
main09141-60020i200907-201208
12 X 14
main99914-10810i201209-201403
8 X 10
main99914-11214i201209-201403
12 X 14
09150WRENCH, HUB NUT BOX
main09150-AH010i200901-201204
51960HOOK ASSY, FRONT
main51961-48050i200901-201109
sub51961-48051
main51961-48051i201110-201204

8 parts on this diagram · 1 diagram in section
