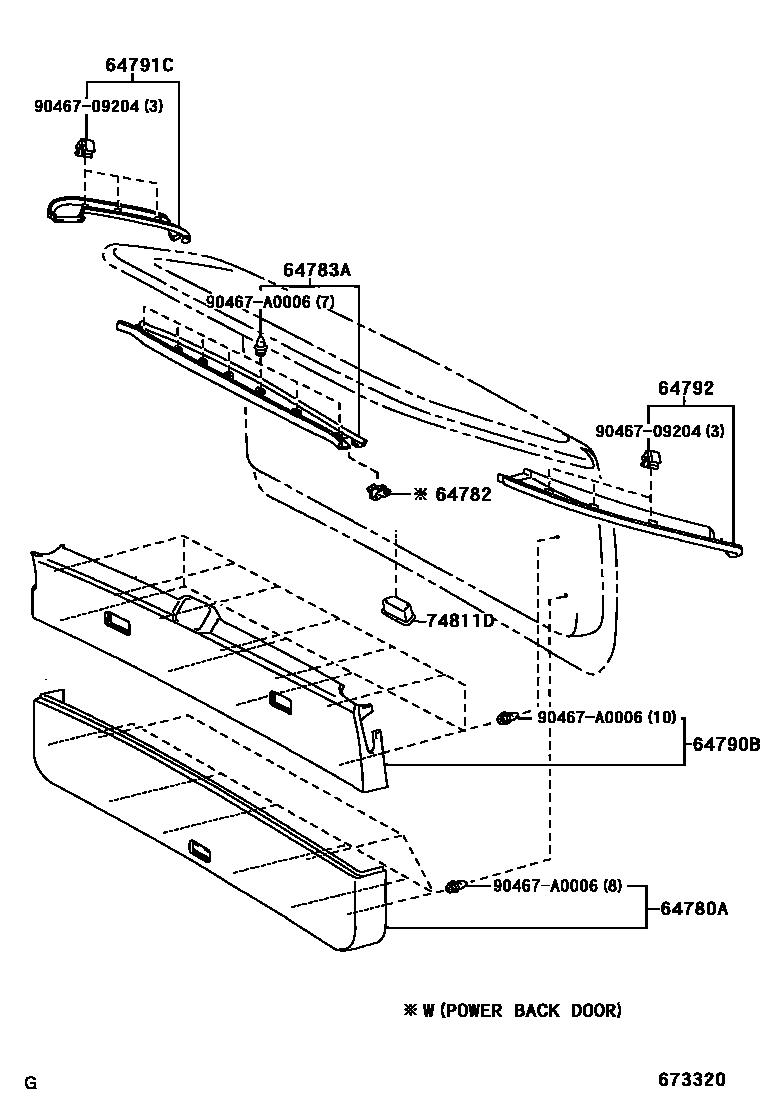

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780APANEL ASSY, BACK DOOR TRIM

main64780-0E010-A0iGSU3#..NAP200602

IVORY,TRIM00,01

main64780-0E010-A0iMCU3#..NAP200309-200602

IVORY,TRIM0#

main64780-0E010-B1iMCU3#..NAP200309-200602

LT.GRAY,TRIM1#

main64780-0E010-B1iGSU3#..NAP200602

LT.GRAY,TRIM11,12

main64780-0E010-C1iGSU3#..NAP200309-200602

BLACK,TRIM2#

64782BOARD, BACK DOOR TRIM, LH

main64782-0E010-A0iGSU3#..NAP200409-200609

IVORY,TRIM0#

sub64782-0E010

sub64782-48010

main64782-0E010-A1iGSU3#..NAP200609

IVORY,TRIM00,01

sub64782-0E010

sub64782-48010

main64782-0E010-B0iGSU3#..NAP200409-200609

LT.GRAY,TRIM1#,2#

sub64782-0E010

sub64782-48010

main64782-0E010-B1iGSU3#..NAP200609

LT. GRAY,TRIM11,12,2#

sub64782-0E010

sub64782-48010

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-0E010-A0iMCU3#..NAP200309-200409

IVORY,TRIM0#

sub64783-48041

main64783-0E010-B0iMCU3#..NAP200309-200409

LT.GRAY,TRIM1#,2#

sub64783-48041

main64783-0E020-A0iMCU3#..NAP200409-200609

IVORY,TRIM0#

sub64783-0E020

sub64783-48051

main64783-0E020-A1iGSU3#..NAP200609

IVORY,TRIM00,01

sub64783-0E020

sub64783-48051

main64783-0E020-B0iMCU3#..NAP200409-200609

LT.GRAY,TRIM1#,2#

sub64783-0E020

sub64783-48051

main64783-0E020-B1iGSU3#..NAP200609

LT. GRAY,TRIM11,12,2#

sub64783-0E020

sub64783-48051

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-0E010-A1iMCU3#..NAP200309-200602

IVORY,TRIM0#

sub64790-48031

main64790-0E010-A1iGSU3#..NAP200602

IVORY,TRIM00,01

sub64790-48031

main64790-0E010-B1iGSU3#..NAP200602

LT.GRAY,TRIM11,12,2#

sub64790-48031

main64790-0E010-B1iMCU3#..NAP200309-200602

LT.GRAY,TRIM1#,2#

sub64790-48031

64791CCOVER, BACK DOOR TRIM, RH

main64791-0E010-A0iMCU3#..NAP200309-200609

IVORY,TRIM0#

sub64791-0E010

sub64791-48031

main64791-0E010-A1iGSU3#..NAP200609

IVORY,TRIM00,01

sub64791-0E010

sub64791-48031

main64791-0E010-B0iGSU3#..NAP200309-200609

LT.GRAY,TRIM1#,2#

sub64791-0E010

sub64791-48031

main64791-0E010-B1iGSU3#..NAP200609

LT. GRAY,TRIM11,12,2#

sub64791-0E010

sub64791-48031

64792COVER, BACK DOOR TRIM, LH

main64792-0E010-A0iGSU3#..NAP200309-200609

IVORY,TRIM0#

sub64792-0E010

sub64792-48031

main64792-0E010-A1iGSU3#..NAP200609

IVORY,TRIM00,01

sub64792-0E010

sub64792-48031

main64792-0E010-B0iMCU3#..NAP200309-200609

LT.GRAY,TRIM1#,2#

sub64792-0E010

sub64792-48031

main64792-0E010-B1iGSU3#..NAP200609

LT. GRAY,TRIM11,12,2#

sub64792-0E010

sub64792-48031

74811DHANDLE, DOOR PULL

main74811-0E010-C0iMCU3#..NAP200309-200602

BLACK,TRIM2#

main74811-0E010-C0iGSU3#..NAP200602

BLACK

9046709204

main90467-09204

90467A0006

main90467-A0006

9 parts on this diagram · 2 diagrams in section
