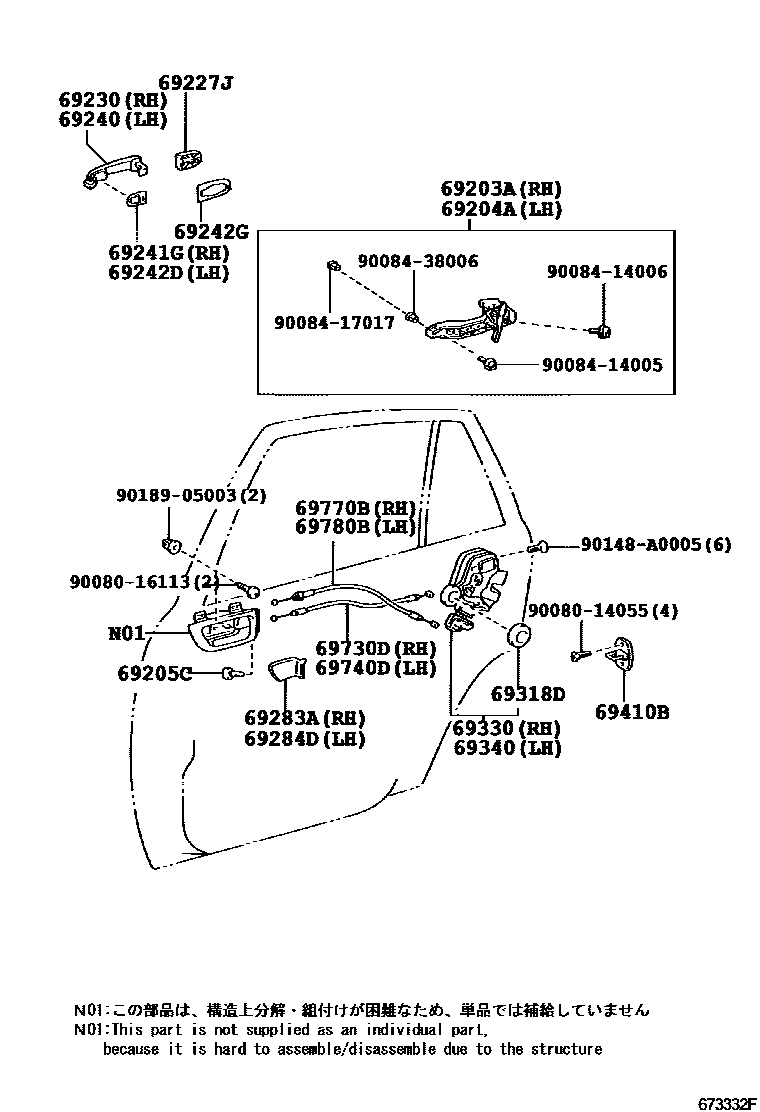

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9008014055
main90080-14055
9008016113
main90080-16113
9008414005
main90084-14005
9008414006
main90084-14006
9008417017
main90084-17017
9008438006
main90084-38006
90148A0005
main90148-A0005
9018905003
main90189-05003
27 parts on this diagram · 1 diagram in section
