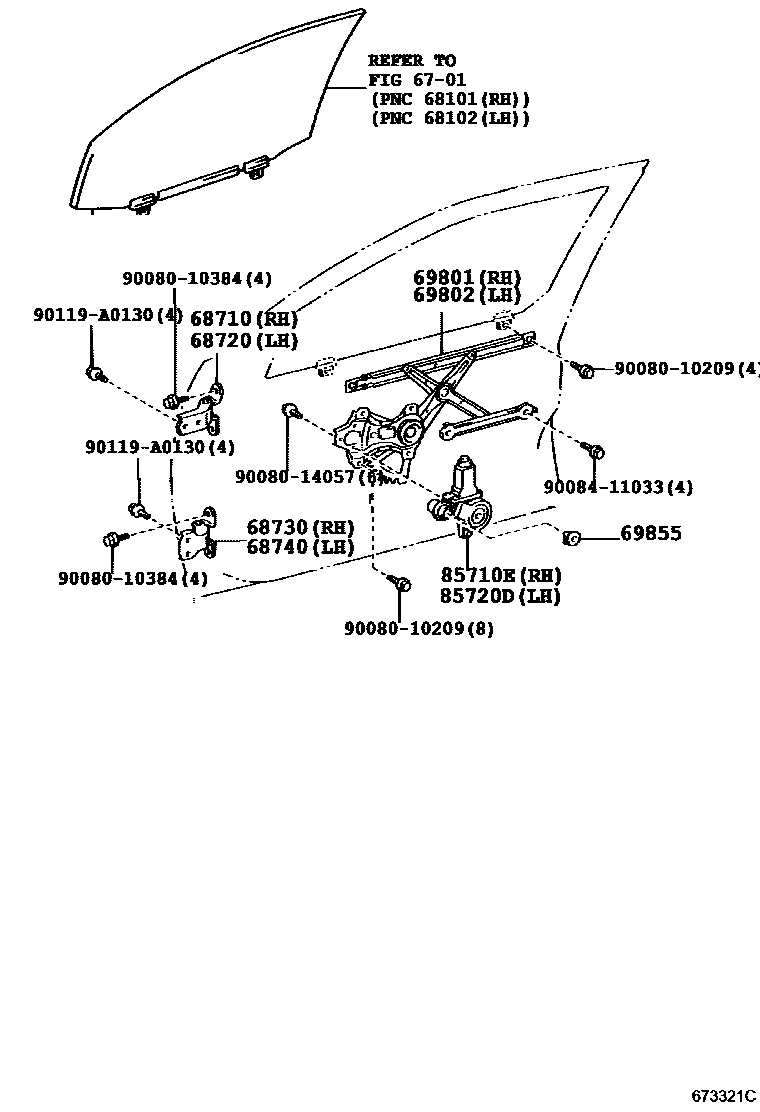

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AA020iMCU3#..NAP200309-200901

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-AA020iMCU3#..NAP200309-200602

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iMCU3#..NAP200309-200602

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iMCU3#..NAP200309-200602

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0E010iMCU3#..NAP200309-200602

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0E010iMCU3#..NAP200309-200602

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iMCU3#..NAP200309-200602

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E010iMCU3#..NAP200309-200602

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AE020iMCU3#..NAP200309-200602

9008010209

main90080-10209

9008010384

main90080-10384

9008014057

main90080-14057

9008411033

main90084-11033

90119A0130

main90119-A0130

15 parts on this diagram · 1 diagram in section
