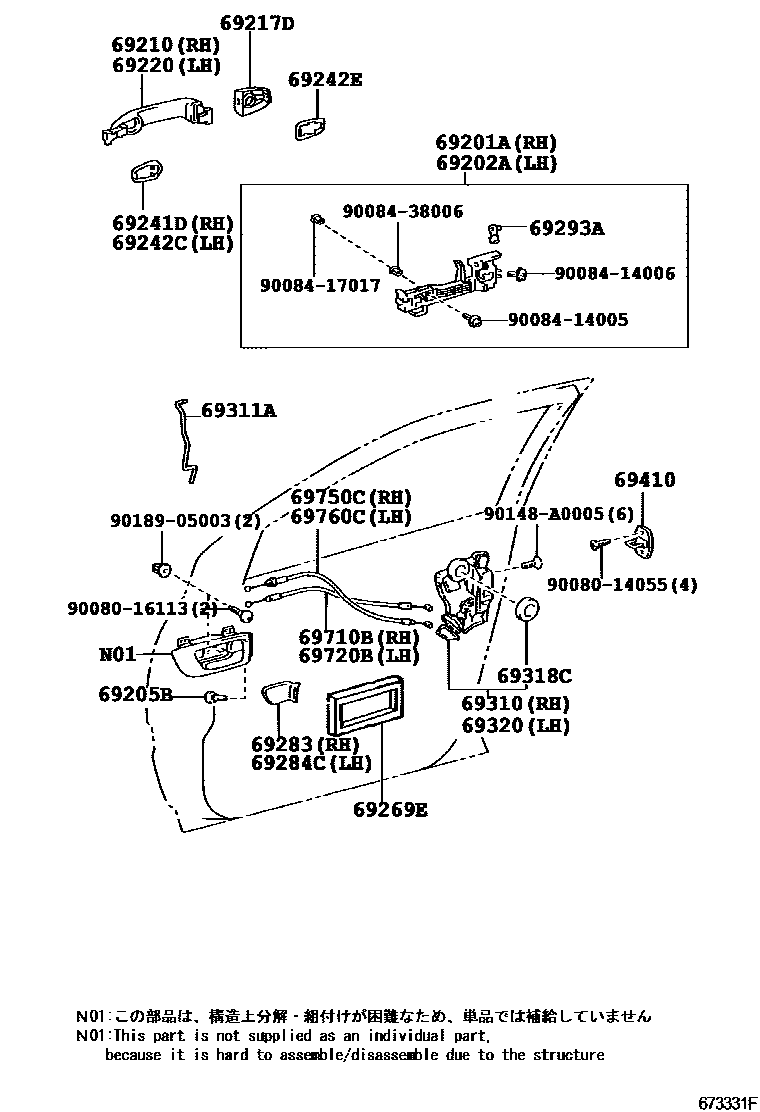

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,062,RH
SILVER ME.,1C0,RH
DK.GRAY MC.,1E0,RH
BLACK,202,RH
BEIGE ME.,4R4,RH
LT.OLIVE M.M.,6T1,RH
DK.GREEN MC.,6T3,RH
LT.BLUE ME.,8R6,RH
DK.BLUE M.M.,8R7,RH
*CR,RH
*CR,LH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY MC.,1E0,LH
BLACK,202,LH
BEIGE ME.,4R4,LH
LT.OLIVE M.M.,6T1,LH
DK.GREEN MC.,6T3,LH
LT.BLUE ME.,8R6,LH
DK.BLUE M.M.,8R7,LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69269ESEAL, FRONT DOOR INSIDE HANDLE
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
WHITE
YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9008014055
main90080-14055
9008016113
main90080-16113
9008414005
main90084-14005
9008414006
main90084-14006
9008417017
main90084-17017
9008438006
main90084-38006
90148A0005
main90148-A0005
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
