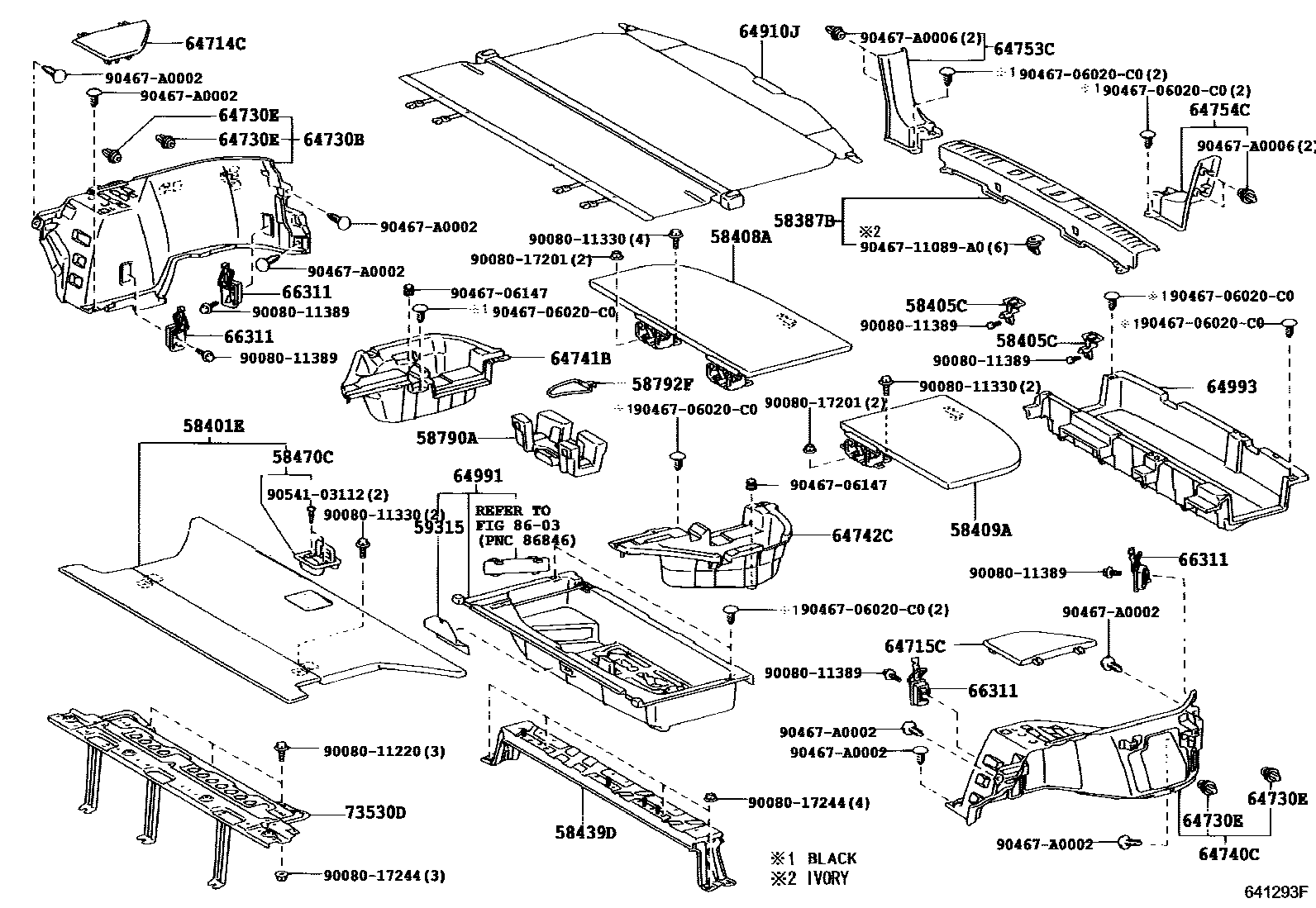

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
58401EBOARD SUB-ASSY, DECK
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
58405CLOCK SUB-ASSY, DECK BOARD
58408ABOARD SUB-ASSY, DECK, NO.2
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58409ABOARD SUB-ASSY, DECK, NO.3
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
58439DREINFORCEMENT, DECK BOARD BRACKET
58470CHANDLE ASSY, DECK BOARD
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
59315COVER, REAR FLOOR BOX
64714CCOVER, DECK SIDE TRIM, RH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
64715CCOVER, DECK SIDE TRIM, LH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64753CPLATE, REAR FLOOR FINISH SIDE, RH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
64910JCOVER ASSY, TONNEAU
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
64991BOX, DECK FLOOR, FRONT
64993BOX, DECK FLOOR, REAR
66311HOOK, ROPE
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
73530DPANEL ASSY, REAR SEAT SUB FLOOR
8603
9008011220
main90080-11220
9008011330
main90080-11330
9008011389
main90080-11389
9008017201
main90080-17201
9008017244
main90080-17244
9046706020C0
main90467-06020C0
9046706147
main90467-06147
9046711089A0
main90467-11089A0
90467A0002
main90467-A0002
90467A0006
main90467-A0006
9054103112
main90541-03112
36 parts on this diagram · 1 diagram in section
