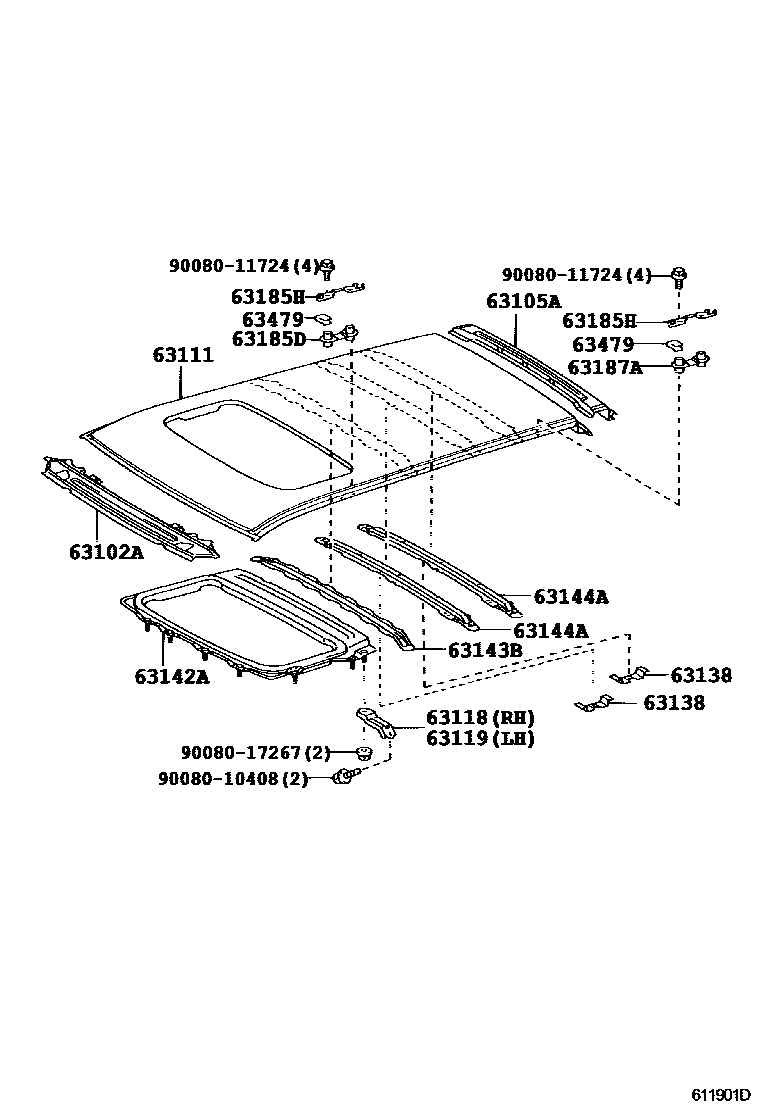

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E030iGSU3#..NAP200309-200602

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E020iMCU3#..NAP200309-200602

63111PANEL, ROOF

main63111-0E020iGSU3#..NAP200309-200901

63118SUPPORT, ROOF PANEL, RH

main63118-0E020iMCU3#..NAP200309-200602

63119SUPPORT, ROOF PANEL, LH

main63118-0E020iMCU3#..NAP200309-200602

63138BRACKET, DOME LAMP, NO.2

main63138-02010iMCU3#..NAP200309-200602

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-0E020iGSU3#..NAP200309-200602

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E020iMCU3#..NAP200309-200602

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E030iMCU3#..NAP200309-200602

63185DBRACKET, ROOF RACK, FRONT

main63187-48010iMCU3#..NAP200309-200602

63185HBRACKET, ROOF RACK

main63185-42020iMCU3#..NAP200309-200602

63187ABRACKET, ROOF RACK, REAR

main63187-42010iMCU3#..NAP200309-200602

63479RETAINER, ROOF INNER RACK

main63479-0E010iMCU3#..NAP200309-200602

9008010408

main90080-10408

9008011724

main90080-11724

9008017267

main90080-17267

16 parts on this diagram · 3 diagrams in section
