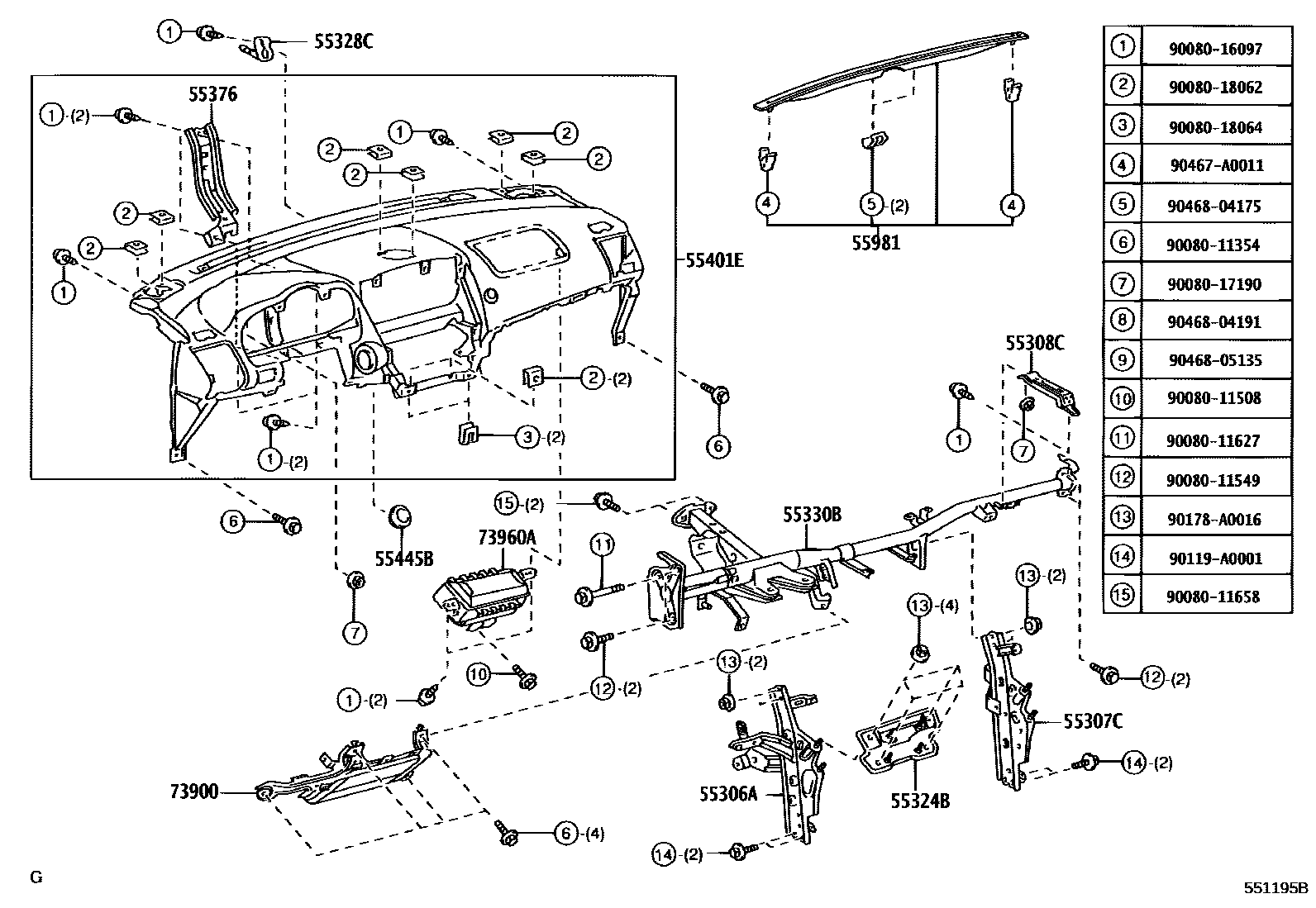

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55324BBRACKET, INSTRUMENT PANEL, NO.4
55328CPIN, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55445BPLATE, INSTRUMENT PANEL FINISH
BLACK,TRIM1#,2#
BLACK,TRIM11,12,2#
SANDAL WOOD,TRIM0#
SANDAL WOOD,TRIM00,01
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM11,12,2#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
SANDAL WOOD,TRIM00,01
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM11,12
LT.GRAY,TRIM1#
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9008011354
main90080-11354
9008011508
main90080-11508
9008011549
main90080-11549
9008011627
main90080-11627
9008011658
main90080-11658
9008016097
main90080-16097
9008017190
main90080-17190
9008018062
main90080-18062
9008018064
main90080-18064
90119A0001
main90119-A0001
90178A0016
main90178-A0016
90467A0011
main90467-A0011
9046804175
main90468-04175
9046804191
main90468-04191
9046805135
main90468-05135
27 parts on this diagram · 4 diagrams in section
