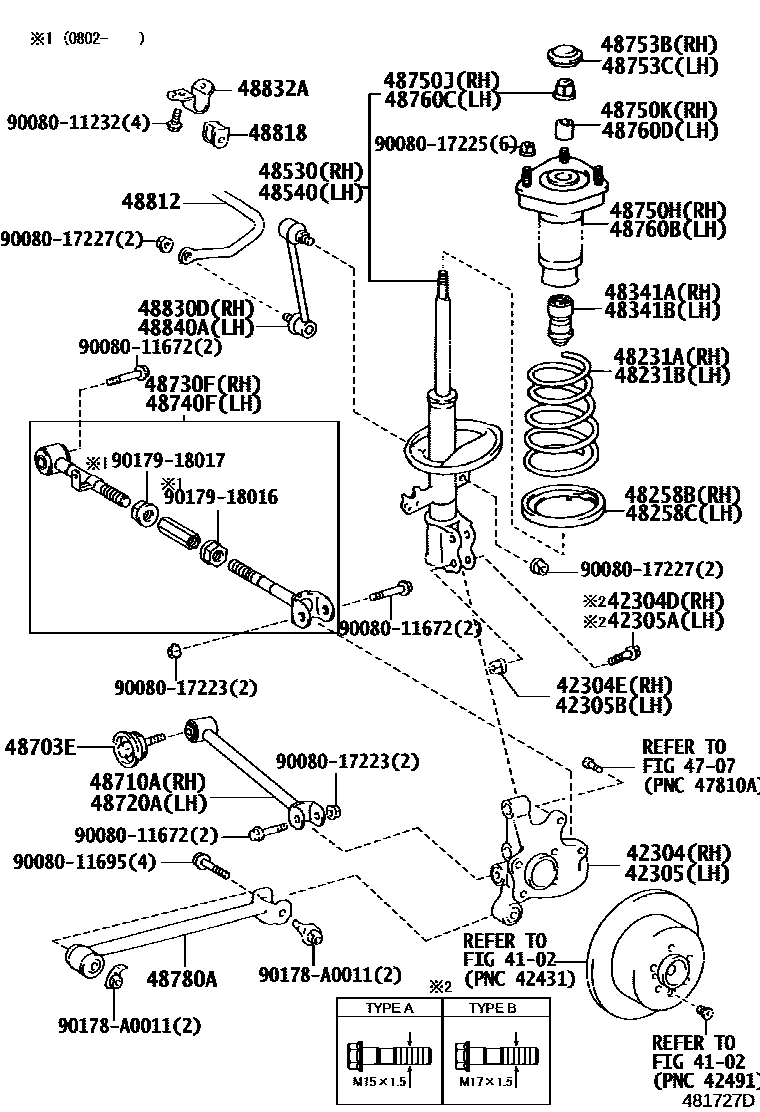

REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
(L)
sub42304-48021
PNC 42304D=TYPE A
sub42304-48031
(J),PNC 42304D=T/P A
PNC 42304D=TYPE B
42304DBOLT (FOR REAR AXLE CARRIER RH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
PNC 42305A=TYPE A
(J)
PNC 42305A=TYPE B
42305ABOLT (FOR REAR AXLE CARRIER LH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42305BNUT (FOR REAR AXLE CARRIER LH)
4707
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0E011
MARK 48530-0E021
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-0E010
MARK 48540-0E011
MARK 48540-0E021
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
sub48730-48090
sub48730-48110
SPORT PACKAGE&HEADLAMP-DISCHARGE & WITH(AFS)
HEADLAMP-DISCHARGE & WITH(AFS)
SPORT PACKAGE&HEADLAMP-DISCHARGE & WITH(AFS)
HEADLAMP-DISCHARGE & WITH(AFS)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
sub48730-48110
sub48740-48090
SPORT PACKAGE&HEADLAMP-DISCHARGE & WITH(AFS)
SPORT PACKAGE&HEADLAMP-DISCHARGE & WITH(AFS)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
SPORT PACKAGE
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9008011232
main90080-11232
9008011672
main90080-11672
9008011695
main90080-11695
9008017223
main90080-17223
9008017225
main90080-17225
9008017227
main90080-17227
90178A0011
main90178-A0011
9017918016
main90179-18016
9017918017
main90179-18017
44 parts on this diagram · 4 diagrams in section
