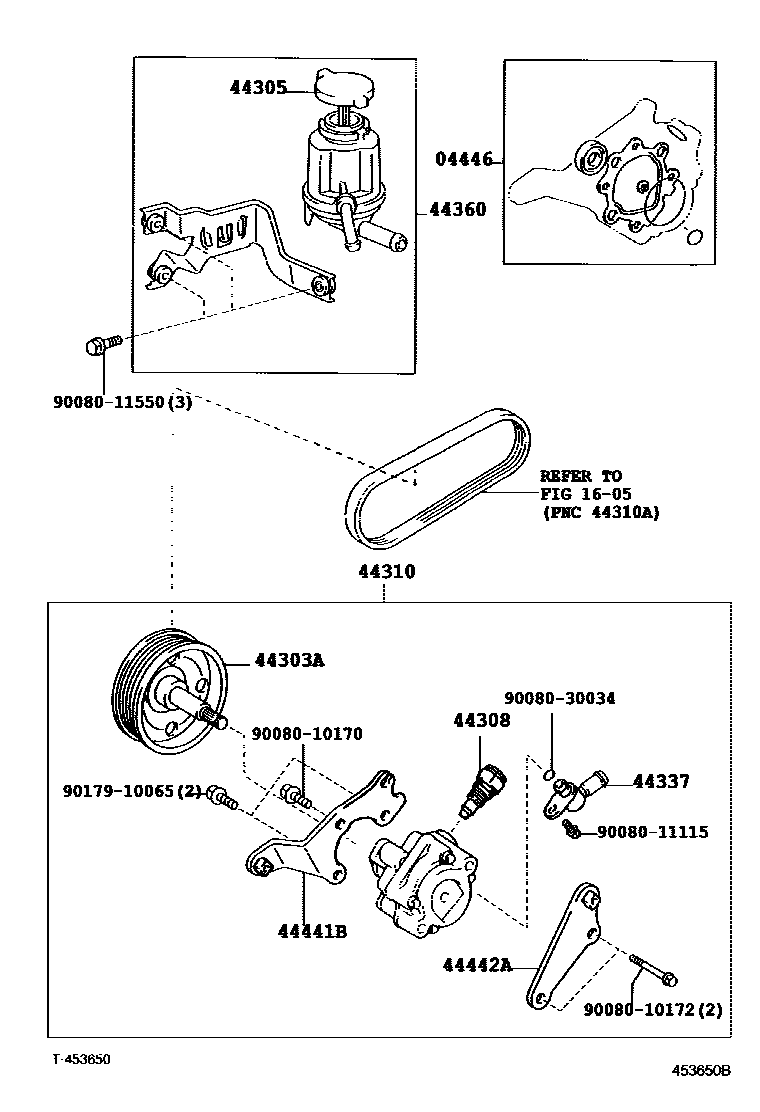

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02070iGSU3#..NAP200602-200702

sub04446-02140

main04446-02140iGSU3#..NAP200702-200901

main04446-06040iMCU3#..NAP200309-200602

1605

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06010iGSU3#..NAP200602

main44303-06030iMCU3#..NAP200309-200602

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06030iMCU3#..NAP200309-200709

sub44305-06050

main44305-06050iGSU3#..NAP200710

44308UNION SUB-ASSY, PRESSURE PORT

main44308-32150iMCU3#..NAP200309-200602

44310PUMP ASSY, VANE

main44310-0E010iMCU3#..NAP200309-200602

main44310-0E020iGSU3#..NAP200602-200901

44337UNION, POWER STEERING SUCTION PORT

main44337-0E010iGSU3#..NAP200602

main44337-48020iMCU3#..NAP200309-200602

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0E010iMCU3#..NAP200309-200901

44441BBRACKET, PUMP, FRONT

main44441-06040iMCU3#..NAP200309-200602

44442ABRACKET, VANE PUMP, REAR

main44442-07010iMCU3#..NAP200309-200602

9008010170

main90080-10170

9008010172

main90080-10172

9008011115

main90080-11115

9008011550

main90080-11550

9008030034

main90080-30034

9017910065

main90179-10065

16 parts on this diagram · 2 diagrams in section
