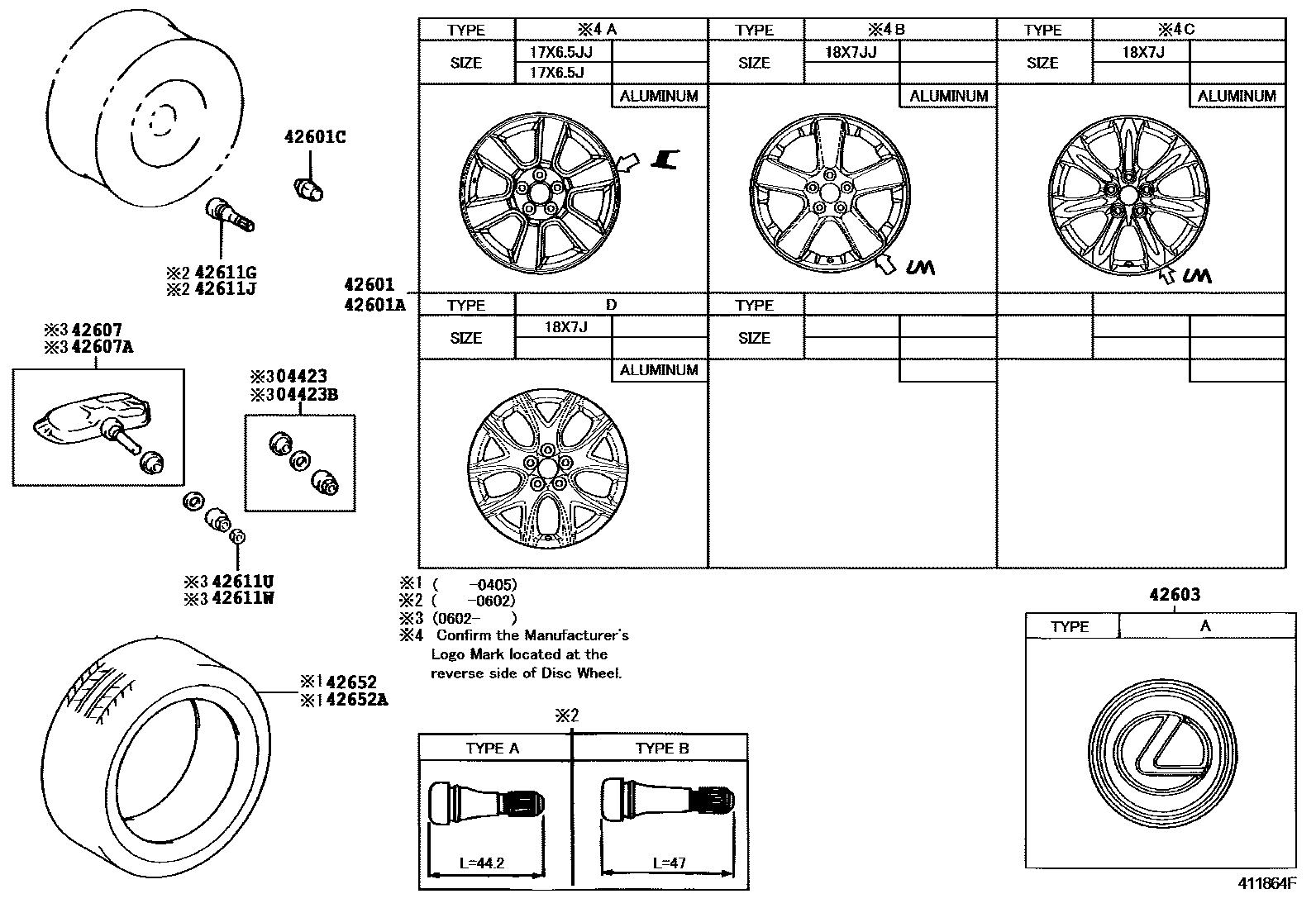

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X6.5JJ, #,(J),T/P A:REF.ILLUST
17X6.5J,MARK SD18M,(J),T/P A:REF.ILLUST
17X6.5JJ, #,(L),T/P A:REF.ILLUST
42601AWHEEL, DISC (FOR SPARE)
17X6.5JJ, #,(J),T/P A:REF.ILLUST
17X6.5J,MARK SD18M,(J),T/P A:REF.ILLUST
17X6.5JJ, #,(L),T/P A:REF.ILLUST
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42603ORNAMENT SUB-ASSY, WHEEL HUB
*CHR,TYPE A:REFER ILLUST.
*CHR,TIRE & DISK WHEEL-235/55R18 C&A PRODUCT M+S,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-0E012
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-0E012
42611GVALVE (FOR TUBELESS TIRE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
sub90942-A5006
42611WCAP, TIRE VALVE (FOR SPARE)
sub90942-A5006
42652TIRE
225/65R17,MICHELIN
P235/55R18,*D/L,TIRE & DISC WHEEL-235/55R18 CHROME PAINT
P235/55R18,*D/L,TIRE & DISC WHEEL-235/55R18 ALUMI
P235/55R18,MICHELIN,TIRE & DISC WHEEL-235/55R18 CHROME PAINT
P235/55R18,MICHELIN,TIRE & DISC WHEEL-235/55R18 ALUMI
42652ATIRE (FOR SPARE)
225/65R17,MICHELIN
P235/55R18,*D/L,TIRE & DISC WHEEL-235/55R18 CHROME PAINT
P235/55R18,*D/L,TIRE & DISC WHEEL-235/55R18 ALUMI
P235/55R18,MICHELIN,TIRE & DISC WHEEL-235/55R18 CHROME PAINT
P235/55R18,MICHELIN,TIRE & DISC WHEEL-235/55R18 ALUMI
14 parts on this diagram · 1 diagram in section
