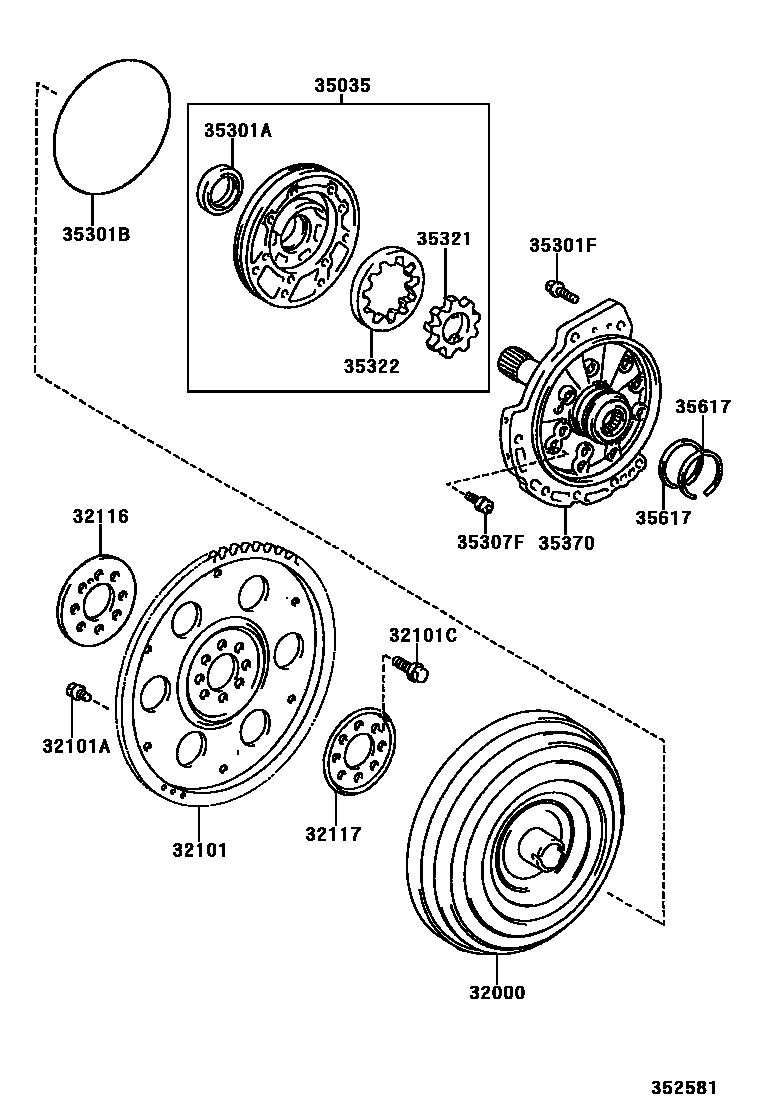

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,GREEN
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 1 diagram in section
