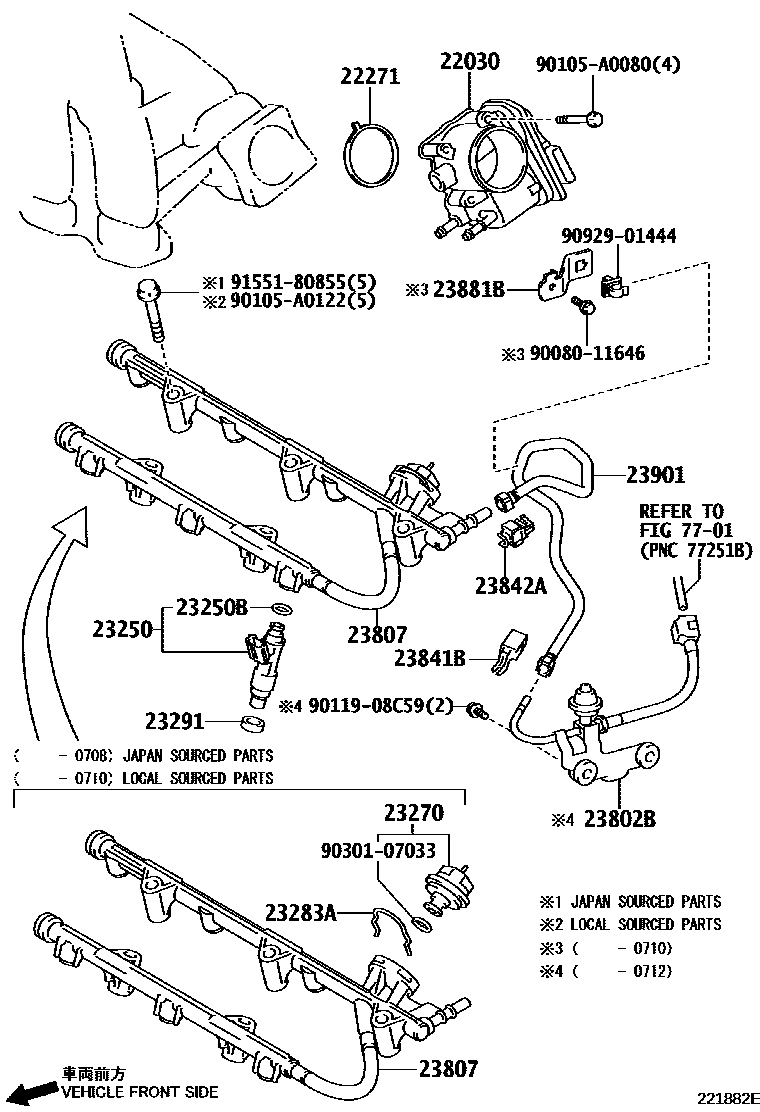

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GRFE..GSU3#..NAP200602

22271GASKET, THROTTLE BODY

main22271-0P020i2GRFE..GSU3#..NAP200602

23250INJECTOR ASSY, FUEL

main23209-0A020i3MZFE..MCU3#..NAP200309

(L)

main23209-0P040i2GRFE..GSU3#..NAP200701

(L)

main23209-20030i3MZFE..MCU3#..NAP200309

(J)

sub23209-20040

main23209-31050i2GRFE..GSU3#..NAP200602

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i3MZFE..MCU3#..NAP200309-200502

main90301-07033i2GRFE..GSU3#..NAP200602

main90301-07037i3MZFE..MCU3#..NAP200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i2GRFE..GSU3#..NAP200602-200710

sub23270-31080

main23270-62010i3MZFE..MCU3#..NAP200309-200410

sub23270-62011

main23270-62011i3MZFE..MCU3#..NAP200410

sub23207-20010

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i2GRFE..GSU3#..NAP200602-200710

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2GRFE..GSU3#..NAP200602

main23291-41010i3MZFE..MCU3#..NAP200309

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-20020i3MZFE..MCU3#..NAP200412

main23802-31070i2GRFE..GSU3#..NAP200602-200712

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0P020i2GRFE..GSU3#..NAP200710

(L)

sub23807-0P021

main23807-0P040i2GRFE..GSU3#..NAP200701-200710

(L)

main23807-31040i2GRFE..GSU3#..NAP200602-200708

(J)

main23807-31090i2GRFE..GSU3#..NAP200708-200901

(J)

main23814-20020i3MZFE..MCU3#..NAP200309-200401

sub23814-20021

main23814-20021i3MZFE..MCU3#..NAP200401-200602

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P010i2GRFE..GSU3#..NAP200602-200710

sub23841-21050

main23841-21050i2GRFE..GSU3#..NAP200711

main23841-28010i3MZFE..MCU3#..NAP200309

sub23841-21050

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GRFE..GSU3#..NAP200602

23881BBRACKET, FUEL HOSE

main23881-AD010i2GRFE..GSU3#..NAP200602-200710

23901TUBE SUB-ASSY, FUEL

main23901-0P020i2GRFE..GSU3#..NAP200602-200711

sub23901-0P100

main23901-0P100i2GRFE..GSU3#..NAP200712

7701

9008011646

main90080-11646

90105A0080

main90105-A0080

90105A0122

main90105-A0122

9011908C59

main90119-08C59

9030107033

main90301-07033

9092901444

main90929-01444

9155180855

main91551-80855

21 parts on this diagram · 3 diagrams in section
