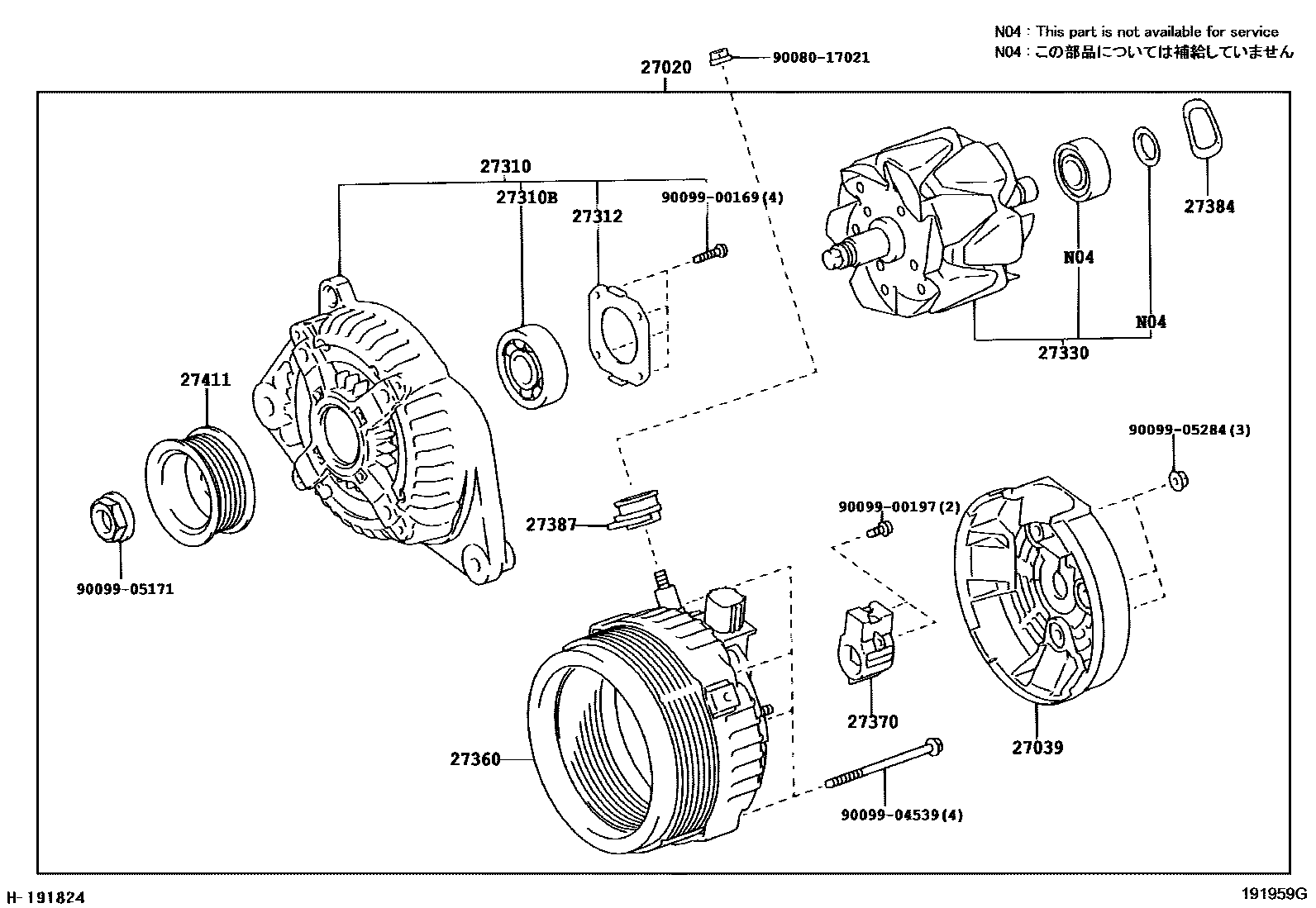

ALTERNATOR

0001 112V 100A,130A 0002 112V 100A,130A

27020ALTERNATOR ASSY

main27060-0A120i3MZFE..MCU3#..NAP200309-200602

12V 100A

main27060-0A130i3MZFE..MCU3#..NAP200309-200602

12V 130A,TOWING PACKAGE-3500LBS

main27060-0P140i2GRFE..GSU3#..NAP200602-200810

12V 100A

sub27060-0P141

main27060-0P141i2GRFE..GSU3#..NAP200811

12V 100A

main27060-0P150i2GRFE..GSU3#..NAP200602-200810

12V 130A,TOWING PACKAGE-3500LBS

sub27060-0P151

main27060-0P151i2GRFE..GSU3#..NAP200811

12V 130A,TOWING PACKAGE-3500LBS

27039COVER, ALTERNATOR REAR END

main27039-0A110i3MZFE..MCU3#..NAP200309-200901

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0A110i3MZFE..MCU3#..NAP200309-200602

main27310-0P140i2GRFE..GSU3#..NAP200602

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2GRFE..GSU3#..NAP200705

main90068-10142i2GRFE..GSU3#..NAP200309-200704

27312PLATE, RETAINER

main27312-72100i3MZFE..MCU3#..NAP200309-200602

27330ROTOR ASSY, ALTERNATOR

main27330-0A100i2GRFE..GSU3#..NAP200309-200602

TOWING PACKAGE-3500LBS

sub27330-33090

main27330-0F060i3MZFE..MCU3#..NAP200309-200602

27360COIL ASSY, ALTERNATOR

main27360-0A120i3MZFE..MCU3#..NAP200309-200602

main27360-0A130i3MZFE..MCU3#..NAP200309-200602

TOWING PACKAGE-3500LBS

sub27360-0A110

main27360-0P140i2GRFE..GSU3#..NAP200602

main27360-0P150i2GRFE..GSU3#..NAP200602

TOWING PACKAGE-3500LBS

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0F060i3MZFE..MCU3#..NAP200309-200602

main27370-0P020i2GRFE..GSU3#..NAP200602

27384WASHER

main27384-0A020i3MZFE..MCU3#..NAP200309-200602

27387INSULATOR, TERMINAL

main27387-0F060i3MZFE..MCU3#..NAP200309-200611

main27387-20130i2GRFE..GSU3#..NAP200602

TOWING PACKAGE-3500LBS

main27387-20130i2GRFE..GSU3#..NAP200611

27411PULLEY, ALTERNATOR

main27411-0A050i3MZFE..MCU3#..NAP200309-200602

9008017021

main90080-17021

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

17 parts on this diagram · 2 diagrams in section
