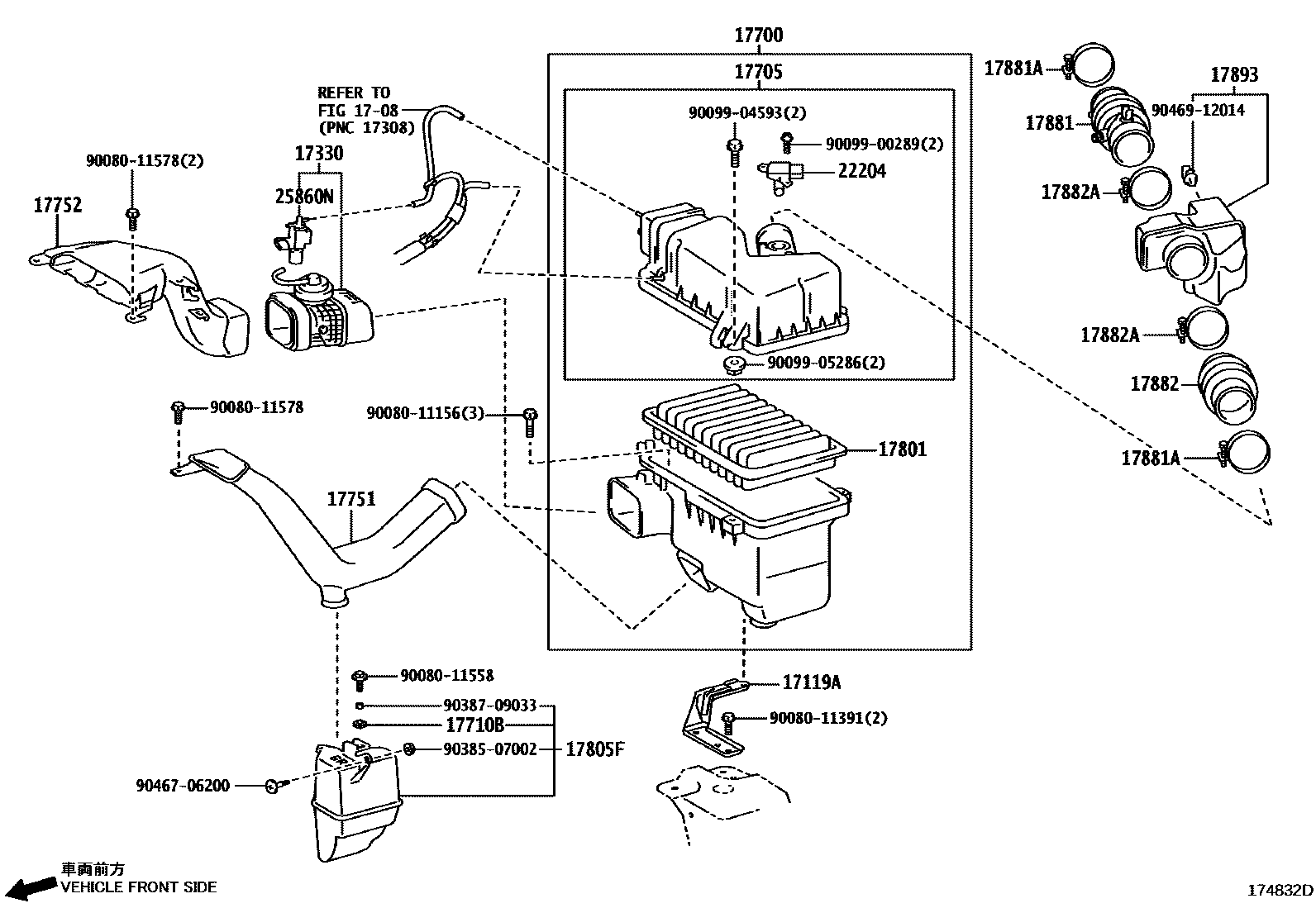

AIR CLEANER
1708
17119ABRACKET, AIR CLEANER
17330VALVE ASSY, INTAKE AIR CONTROL, NO.3
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17805FRESONATOR SUB-ASSY, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
25860NVALVE ASSY, VACUUM SWITCHING
9008011156
main90080-11156
9008011391
main90080-11391
9008011558
main90080-11558
9008011578
main90080-11578
9009900289
main90099-00289
9009904593
main90099-04593
9009905286
main90099-05286
9038507002
main90385-07002
9038709033
main90387-09033
9046706200
main90467-06200
9046912014
main90469-12014
28 parts on this diagram · 2 diagrams in section
