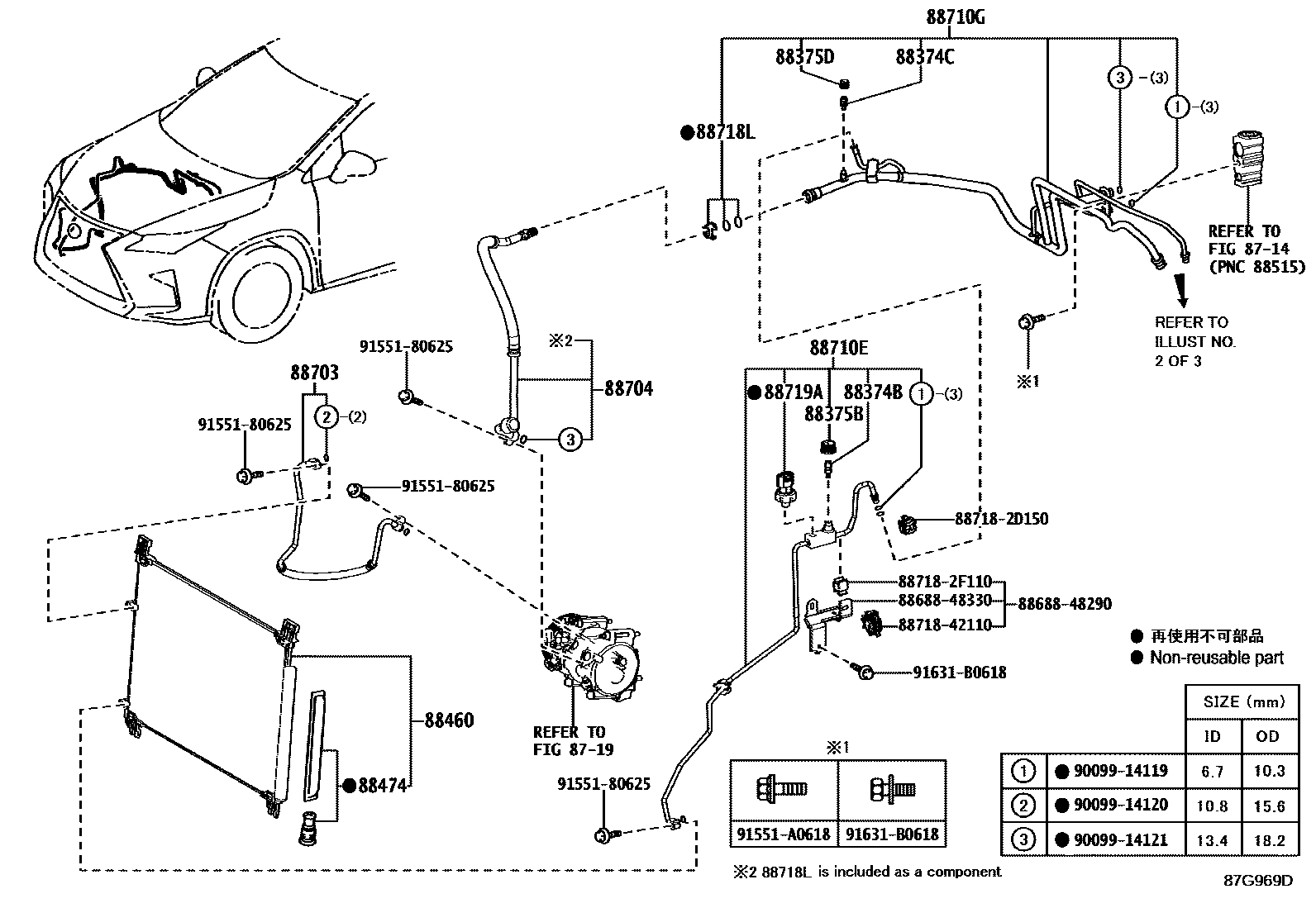

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1FRONT (KOREA SPEC) 0006 1REAR 1/2 0007 1REAR 1/2 0008 1REAR 1/2 0009 1REAR 1/2 0010 1REAR 2/2 0011 1REAR 2/2 0012 1REAR 2/2 0013 1REAR 2/2

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGGL2#,GYL26201712-201908

88374CVALVE, SERVICE, NO.2

main88374-30010iGGL2#,GYL26201712-201908

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGGL2#,GYL26201712-201908

main88375-30280iGYL26201908

KOREA SPEC

main88375-30320iGGL2#,GYL26201908

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGGL2#,GYL26201712-201908

main88375-30290iGYL26201908

KOREA SPEC

main88375-30310iGGL2#,GYL26201908

88460CONDENSER ASSY, COOLER

main88460-48210iGGL2#201712-201908

main88460-48220iGYL26201712-201908

main88460-48300iGGL2#201908

88474DRYER, COOLER

main88474-12010iGGL2#201712-201908

main88474-47020iGYL26201712-201908

88703HOSE SUB-ASSY, DISCHARGE

main88703-48310iGGL2#201712-201908

main88703-48320iGYL26201712-201908

main88703-48320iGYL26201908

KOREA SPEC

main88703-48330iGYL26201908

88704HOSE SUB-ASSY, SUCTION

main88704-48300iGGL2#201712-201908

main88704-48310iGYL26201712-201908

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48570iGGL2#201908

main88710-48580iGGL2#201712-201908

main88710-48610iGYL26201908

main88710-48750iGYL26201712-201908

main88710-48750iGYL26201908

KOREA SPEC

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-48770iGGL2#201712-201908

main88710-48780iGYL26201908

main88710-48810iGGL2#201908

88718LCLAMP, PIPING

main88718-52280iGGL2#,GYL26201712-201908

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGGL2#,GYL26201712-201908

8868848290BRACKET, COOLER DIAPHRAGM

main88688-48290

8868848330BRACKET, COOLER DIAPHRAGM

main88688-48330

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

8871842110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42110

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91631B0618

main91631-B0618

25 parts on this diagram · 13 diagrams in section
