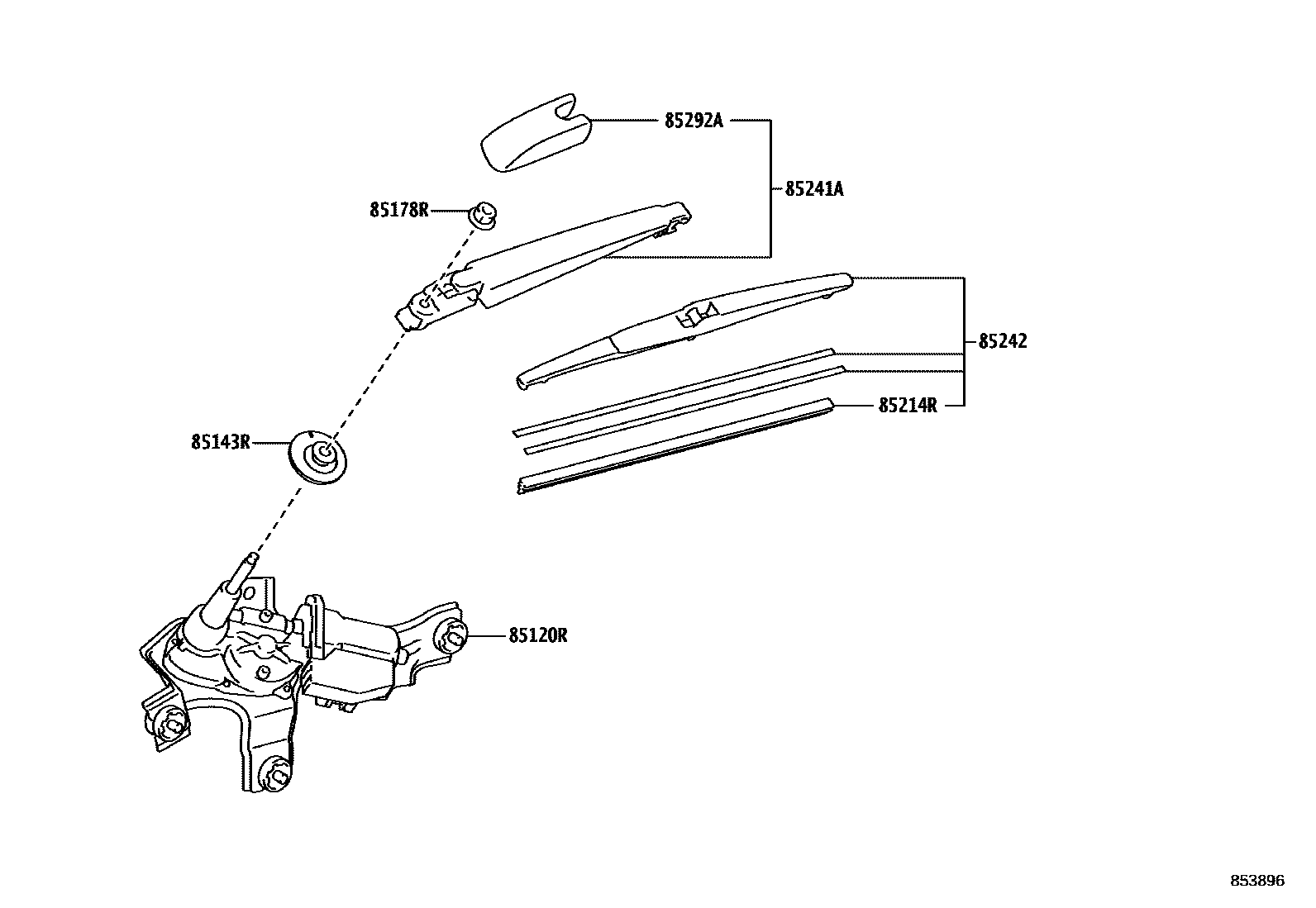

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-48090iGGL2#,GYL26201712-201908

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iGGL2#,GYL26201712-201908

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGGL2#,GYL26201712-201908

85214RRUBBER, REAR WIPER

main85214-42040iGGL2#,GYL26201712-201908

85241AARM, REAR WIPER

main85241-42070iGGL2#,GYL26201712-201908

85242BLADE, RR WIPER

main85242-78010iGGL2#,GYL26201712-202209

sub85242-72010

85292ACAP, REAR WIPER ARM HEAD

main85292-42020iGGL2#,GYL26201712-201908

7 parts on this diagram · 1 diagram in section
