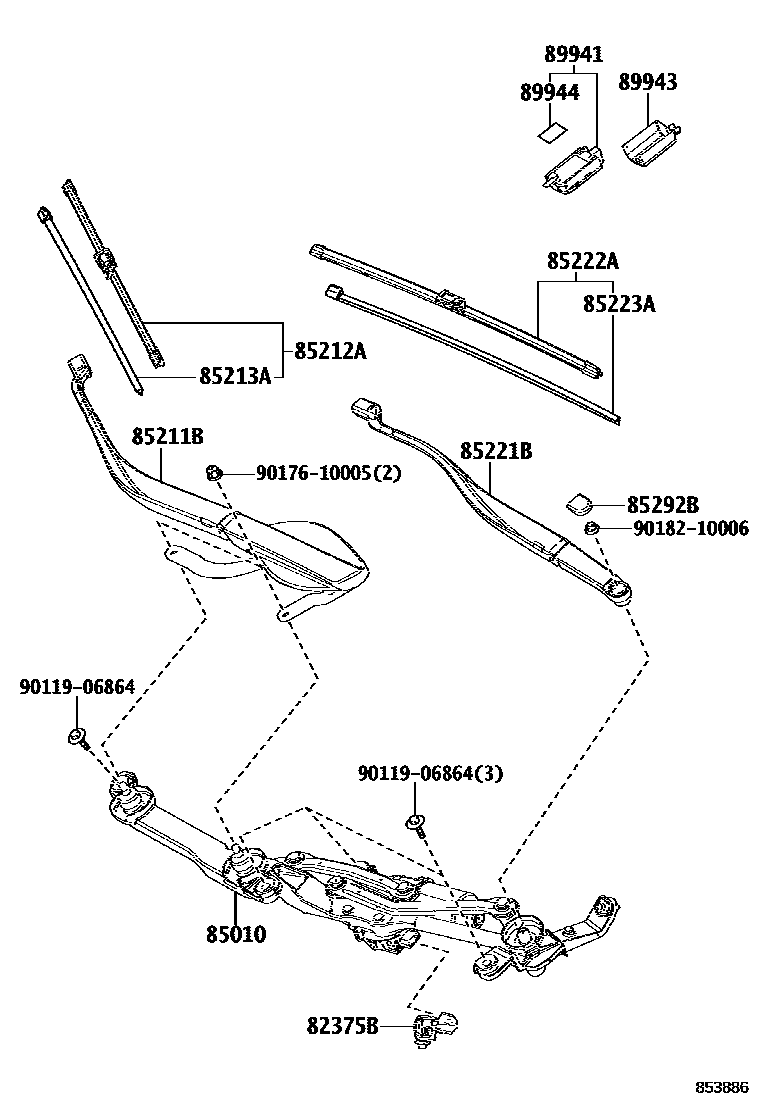

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-48030iGGL2#,GYL26201712-201908

85010MOTOR & LINK ASSY, FR WIPER

main85010-48270iGGL2#,GYL26201712-201908

85211BARM, FRONT WIPER, RH

main85211-48200iGGL2#,GYL26201712-201908

85212ABLADE, FR WIPER, RH

main85212-48171iGGL2#,GYL26201712-202209

85213ARUBBER, WIPER BLADE, RH

main85213-48021iGGL2#,GYL26201712-201908

85221BARM, FRONT WIPER, LH

main85221-48200iGGL2#,GYL26201712-201908

85222ABLADE, FR WIPER, LH

main85222-48181iGGL2#,GYL26201712-202209

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-48021iGGL2#,GYL26201712-201908

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGGL2#,GYL26201712-201908

89941SENSOR, RAIN

main89941-47010iGYL26201712-201908

main89941-48080iGYL26201908

KOREA SPEC&AUDIO-DVD

main89941-48080iGGL2#201712-201908

89943COVER, RAIN SENSOR

main89943-48010iGGL2#,GYL26201712-201908

89944TAPE, RAIN SENSOR

main89944-42020iGGL2#,GYL26201806-201908

main89944-48010iGGL2#,GYL26201712-201805

9011906864

main90119-06864

9017610005

main90176-10005

9018210006

main90182-10006

15 parts on this diagram · 1 diagram in section
