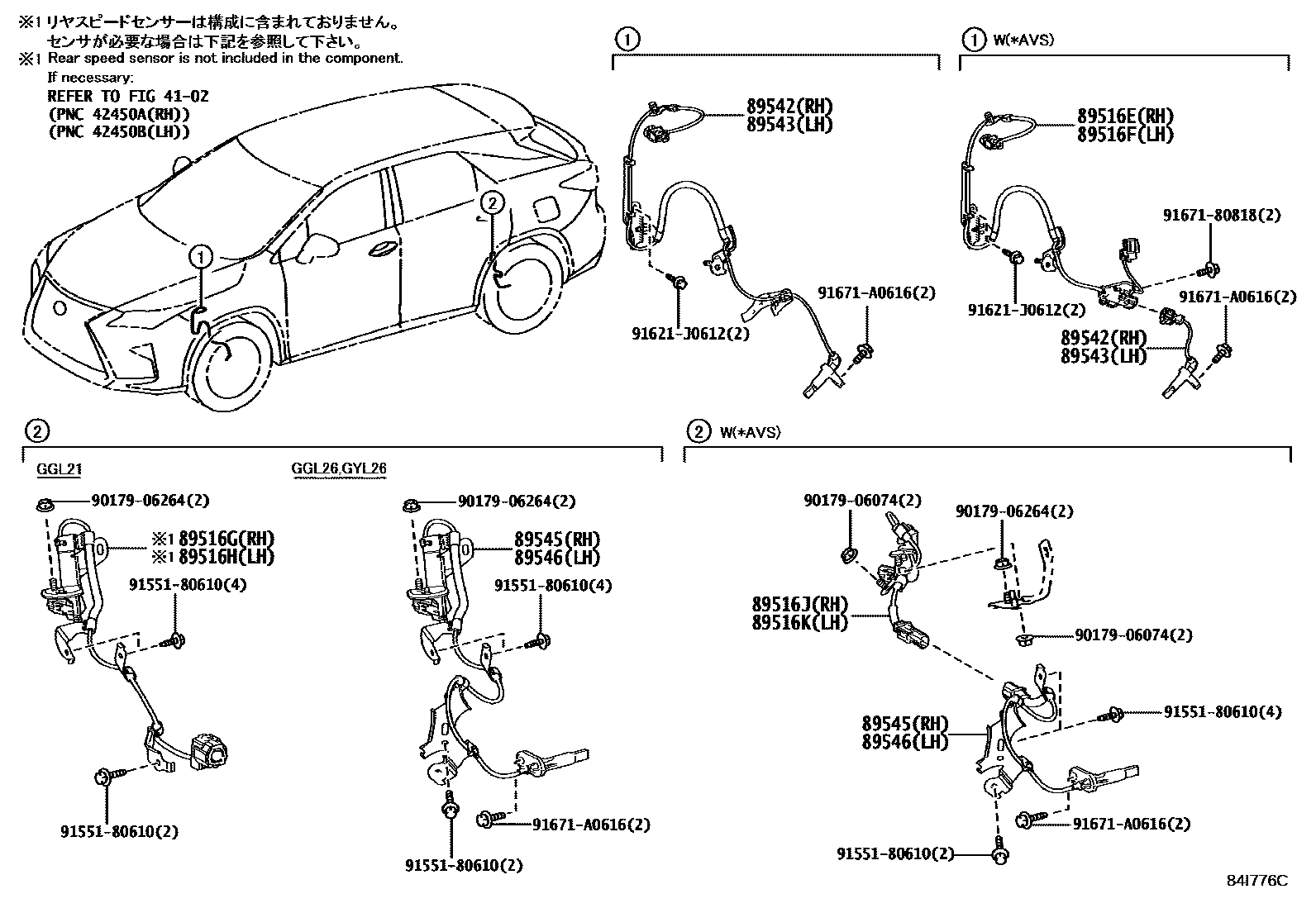

ABS & VSC

0001 1SKID CONTROL SENSER 0002 1COMPUTER & BUZZER & SENSER

4102

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-48130iGGL21201712-201908

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-48140iGGL21201712-201908

89516JWIRE, SKID CONTROL SENSOR, REAR RH NO.2

89516KWIRE, SKID CONTROL SENSOR, REAR LH NO.2

89542SENSOR, SPEED, FRONT RH

main89542-48060iGGL2#,GYL26201712-201908

89543SENSOR, SPEED, FRONT LH

main89543-48060iGGL2#,GYL26201712-201908

89545SENSOR, SPEED, REAR RH

main89545-48090iGGL26,GYL26201712-201908

89546SENSOR, SPEED, REAR LH

main89546-48090iGGL26,GYL26201712-201908

9017906074

main90179-06074

9017906264

main90179-06264

9155180610

main91551-80610

91621J0612

main91621-J0612

9167180818

main91671-80818

91671A0616

main91671-A0616

17 parts on this diagram · 2 diagrams in section
