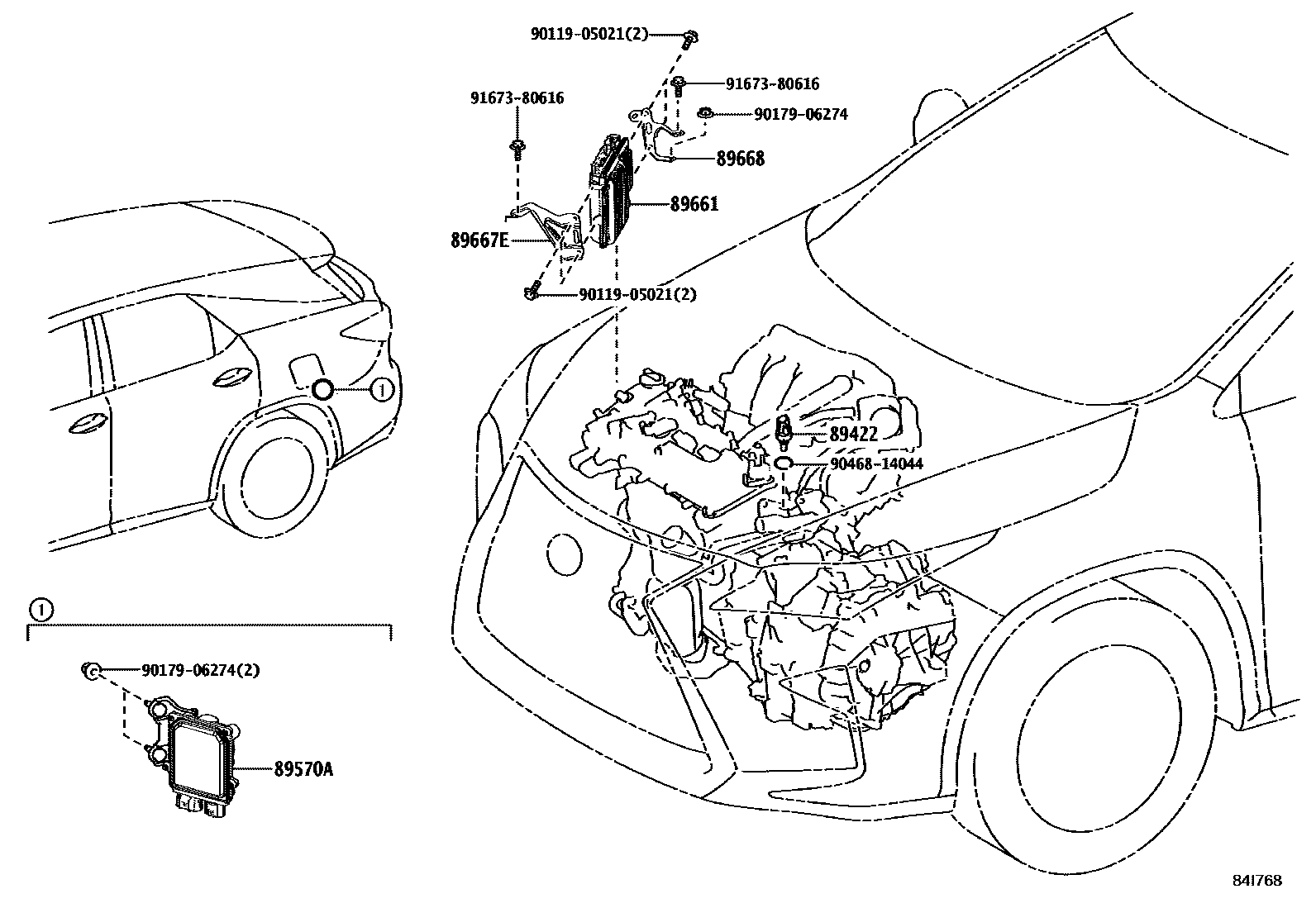

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGGL2#,GYL26201712-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48070iGGL2#,GYL26201712-201908

89661COMPUTER, ENGINE CONTROL

main89661-48U00iGGL21201712-201807

DENSO

sub89661-48X10

main89661-48U10iGGL26201712-201807

DENSO

sub89661-48X20

main89661-48U50iGYL26201712-201803

DENSO

main89661-48U51iGYL26201804-201808

DENSO

sub89661-48U52

main89661-48X10iGGL21201808-201811

DENSO

sub89661-48X11

main89661-48X11iGGL21201812-201905

DENSO

sub89661-48X12

main89661-48X12iGGL21201906-201908

DENSO

sub89661-48X13

main89661-48X20iGGL26201808-201811

DENSO

sub89661-48X21

main89661-48X21iGGL26201812-201905

DENSO

sub89661-48X22

main89661-48X22iGGL26201906-201908

DENSO

sub89661-48X23

main89661-48Y00iGGL21201908-202007

DENSO

sub89661-48Y01

main89661-48Y10iGGL26201908-202007

DENSO

sub89661-48Y11

main89661-48Z40iGYL26201908-202007

DENSO

main89661-4D070iGYL26201808-201810

DENSO

sub89661-4D071

main89661-4D071iGYL26201811-201908

DENSO

main89661-4D340iGGL21202007-202011

DENSO

sub89661-4D341

main89661-4D341iGGL21202012-202107

DENSO

main89661-4D350iGGL26202007-202011

DENSO

sub89661-4D351

main89661-4D351iGGL26202012-202107

DENSO

main89661-4D390iGYL26202007

DENSO

main89661-4D740iGGL21202107

DENSO

main89661-4D750iGGL26202107

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48170iGGL2#201712-201908

main89667-48180iGYL26201712-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48190iGGL2#201712-201908

main89668-48200iGYL26201712-201908

9011905021

main90119-05021

9017906274

main90179-06274

9046814044

main90468-14044

9167380616

main91673-80616

9 parts on this diagram · 2 diagrams in section
