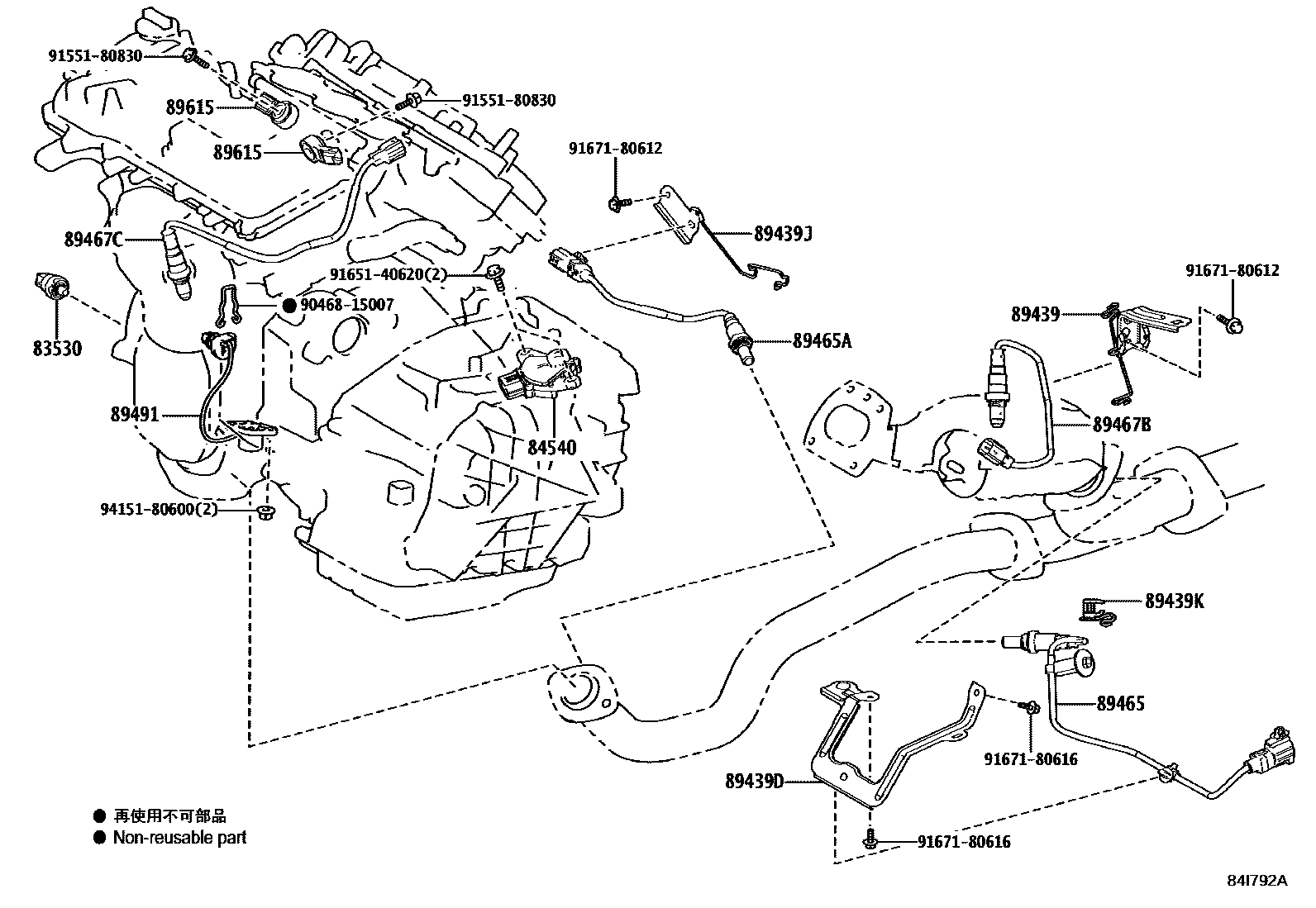

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM(1/2) 0004 1ENGINE ROOM(1/2) 0005 1ENGINE ROOM(2/2) 0006 1ENGINE ROOM(2/2) 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL(1/2) 0010 1INSTRUMENT PANEL(2/2) 0011 1INSTRUMENT PANEL(2/2) 0012 1STEERING 0013 1SEAT 0014 1DOOR, ROOF & FLOOR 0015 1FLOOR, LUGGAGE & BACK DOOR 0016 1FLOOR, LUGGAGE & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGGL2#,GYL26201712-201908

DENSO,*369

main83530-60020iGGL2#,GYL26201712-201908

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-48030iGGL2#201712-201908

89439BRACKET, SENSOR

main82715-45080iGGL2#,GYL26201712-201908

89439DBRACKET, SENSOR, NO.1

main82715-48A20iGGL2#,GYL26201712-201908

89439JBRACKET, SENSOR, NO.2

main82715-48M50iGGL2#,GYL26201712-201908

89439KBRACKET, SENSOR, NO.3

main82715-72040iGGL2#201712-201908

89465SENSOR, OXYGEN

main89465-48400iGGL2#201712-201908

main89465-48410iGYL26201712-201908

89465ASENSOR, OXYGEN NO.2

main89465-48390iGGL2#,GYL26201712-201908

89467BSENSOR, AIR FUEL RATIO

main89467-48320iGGL2#,GYL26201712-201908

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48310iGGL2#,GYL26201712-201908

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGGL2#,GYL26201712-201808

sub89491-48021

main89491-48021iGGL2#,GYL26201809-202004

sub89491-48040

main89491-48040iGGL2#,GYL26202005-202204

sub89491-48041

main89491-48041iGGL2#,GYL26202205

89615SENSOR, KNOCK CONTROL

main89615-20090iGGL2#,GYL26201712-201908

9046815007

main90468-15007

9155180830

main91551-80830

9165140620

main91651-40620

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

18 parts on this diagram · 16 diagrams in section
