WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1FLOOR & ROOF 0009 1HIGH VOLTAGE CABLE 0010 1SEAT 0011 1CRAMP & BRACKET 0012 1CRAMP & BRACKET 0013 1CONNECTOR 1/3 0014 1CONNECTOR 2/3 0015 1CONNECTOR 3/3

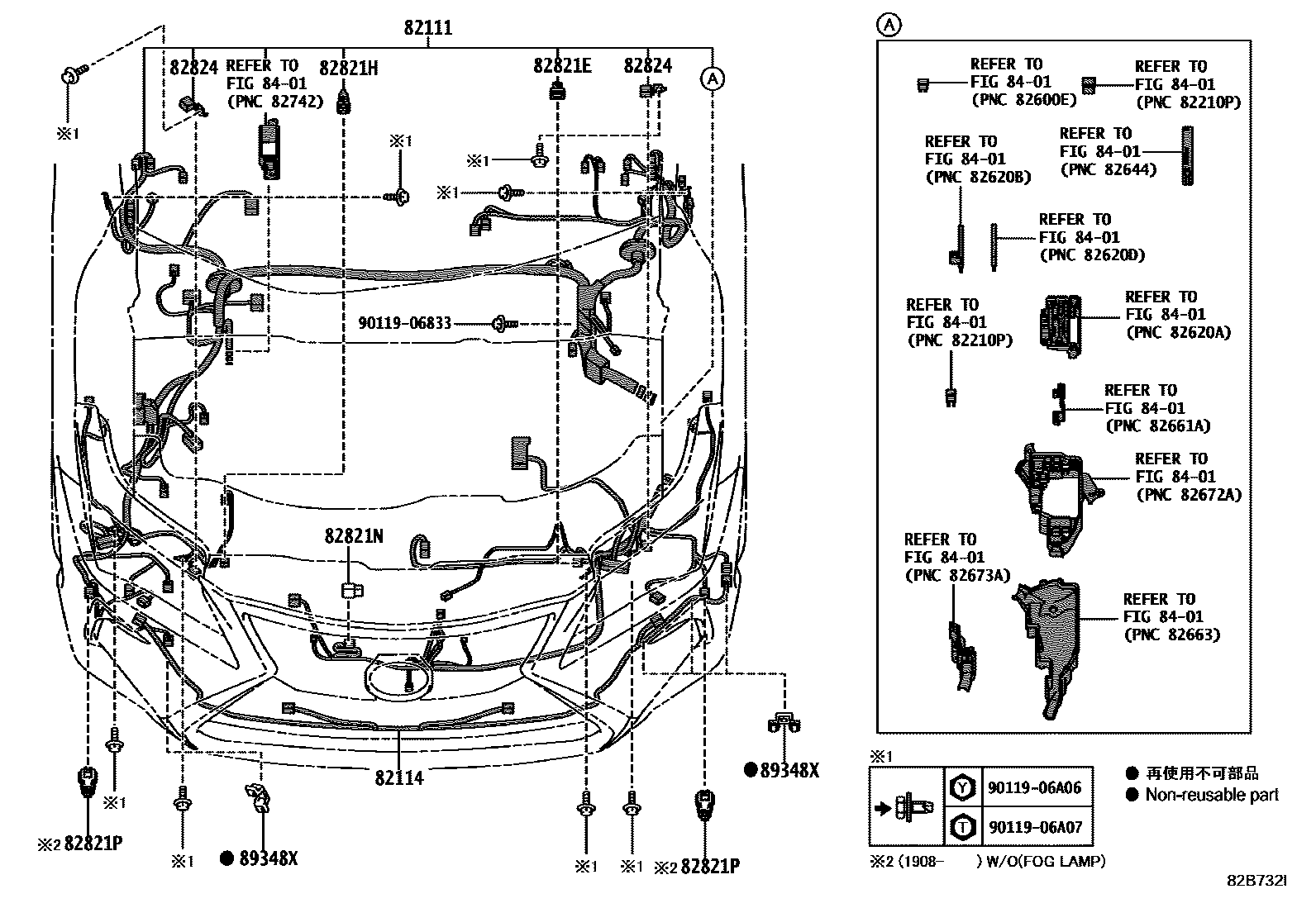

82111WIRE, ENGINE ROOM MAIN

main82111-4D710iGGL2#201712-201908

main82111-4D820iGYL26201712-201908

main82111-4DC80iGGL2#201908-202209

main82111-4DD90iGYL26201908-202209

82114WIRE, ENGINE ROOM, NO.4

main82114-48060

main82114-48100

82821ECOVER, CONNECTOR

main82821-30650iGGL2#,GYL26201712-201908

82821HCOVER, CONNECTOR

main82821-42040iGGL2#,GYL26201712-201908

82821NCOVER, CONNECTOR

main82821-48310iGGL2#,GYL26201712-201908

AUDIO-*EMV & DVD

main82821-48310iGGL2#,GYL26201908

82821PCOVER, CONNECTOR

main82821-48260iGGL2#,GYL26201908

82824CONNECTOR, WIRING HARNESS

main82824-48020iGGL2#,GYL26201712-201908

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

9011906833

main90119-06833

9011906A06

main90119-06A06

9011906A07

main90119-06A07

12 parts on this diagram · 15 diagrams in section
