REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81277KSHADE, LICENSE PLATE LAMP, RH
81278HSHADE, LICENSE PLATE LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
NOT APPLICABLE
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81558MBRACKET, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81568KBRACKET, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81582GASKET, REAR LAMP
81584AGASKET, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
81586CORD, REAR LAMP
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
81952ACOVER, REAR LAMP, RH
81962COVER, REAR LAMP, LH
9007502046
main90075-02046
9015960498
main90159-60498
9015960621
main90159-60621
9017905102
main90179-05102
9018906148
main90189-06148
9018906235
main90189-06235
9018906242
main90189-06242

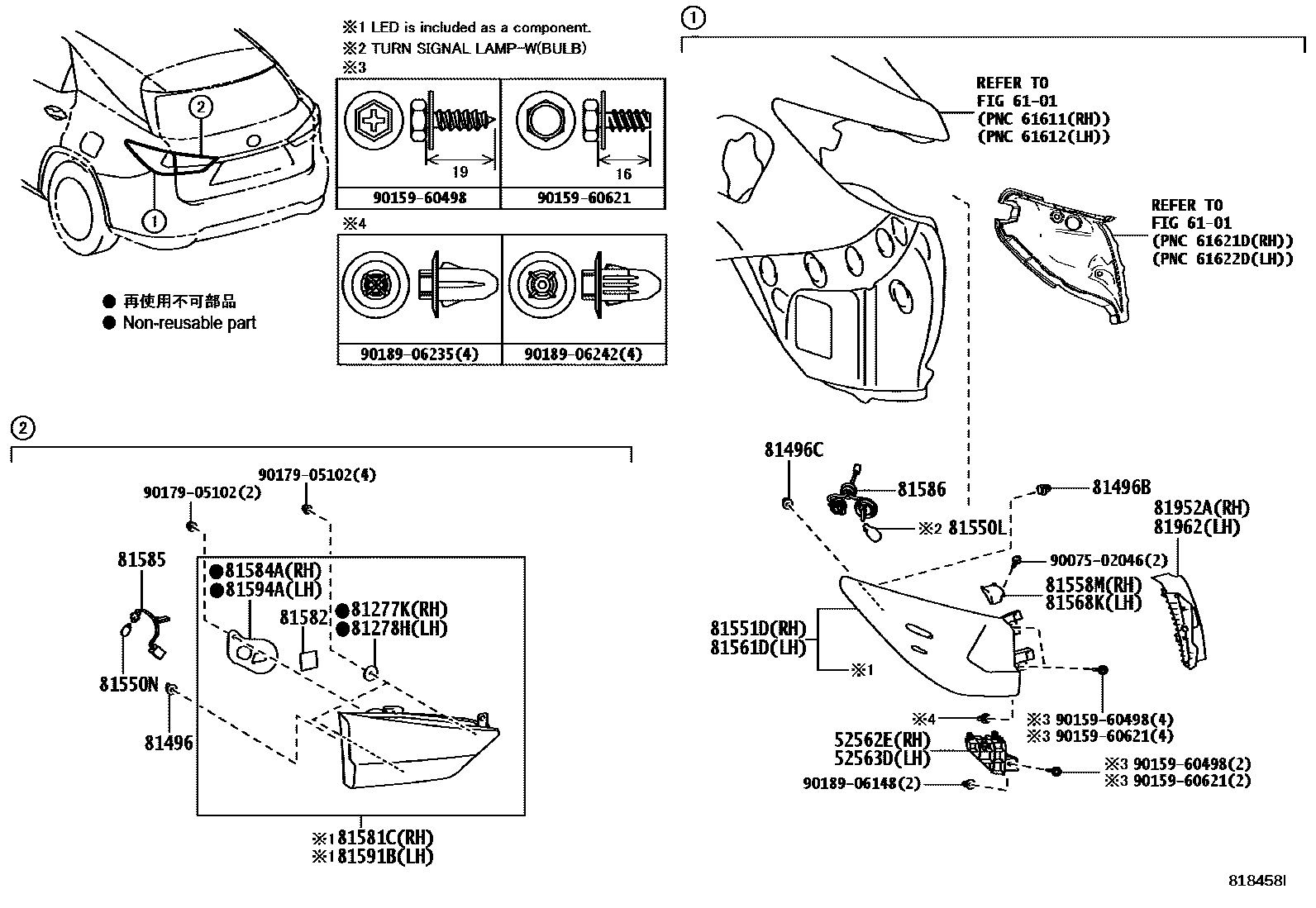

31 parts on this diagram · 2 diagrams in section
