HEADLAMP

81134GASKET, HEADLAMP

main90075-23003i202107

KOREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main90075-23003i202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main90075-23003i202107

HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main90075-23003i202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLEBEAM TYPE)

main90075-23003i202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main90075-23003i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201712-202107

COLD AREA SPEC

main90075-23003i201712-201908

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-23003i201712-201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-23003i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LEDTYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

KOREA SPEC&COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

KOREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-23003i201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)

main90075-23003i201908-202107

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

81135UNIT ASSY, HEADLAMP, RH

main81140-48E00i201712-201805

sub81140-48E01

main81140-48E01i201805-201908

main81140-48G10i201908

main81145-48E10i201712-201805

COLD AREA SPEC

sub81145-48E11

main81145-48E11i201805-201908

COLD AREA SPEC

main81145-48E60i201712-201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81145-48E60i201712-201908

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81145-48F20i202107

KOREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main81145-48F20i201908-202107

KOREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48F20i201908-202107

KOREA SPEC&COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48F30i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48F30i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48F30i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LEDTYPE(BACK UP LAMP & TURN LAMP)

main81145-48F30i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48F30i202107-202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLEBEAM TYPE)

main81145-48F30i202107-202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81145-48F31i202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81145-48F31i202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLEBEAM TYPE)

main81145-48G20i201908-202107

COLD AREA SPEC

main81145-48G20i201908-202107

COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48G20i201908-202107

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48G20i202107

HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main81145-48G30i202107-202108

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81145-48G30i201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)

main81145-48G30i201908-202107

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81145-48G31i202108

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

81175UNIT ASSY, HEADLAMP, LH

main81070-48E00i201712-201805

sub81070-48E01

main81070-48E01i201805-201908

main81070-48G10i201908

main81185-48E10i201712-201805

COLD AREA SPEC

sub81185-48E11

main81185-48E11i201805-201908

COLD AREA SPEC

main81185-48E60i201712-201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81185-48E60i201712-201908

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81185-48F20i201908-202107

KOREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48F20i201908-202107

KOREA SPEC&COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48F20i202107

KOREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main81185-48F30i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48F30i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LEDTYPE(BACK UP LAMP & TURN LAMP)

main81185-48F30i201908-202107

KOREA SPEC&COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48F30i201908-202107

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48F30i202107-202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLEBEAM TYPE)

main81185-48F30i202107-202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81185-48F31i202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81185-48F31i202108

KOREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLEBEAM TYPE)

main81185-48G20i201908-202107

COLD AREA SPEC

main81185-48G20i201908-202107

COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48G20i201908-202107

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48G20i202107

HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main81185-48G30i201908-202107

COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81185-48G30i201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&REAR COMBINATION LAMP-LED TYPE(BACK UPLAMP & TURN LAMP)

main81185-48G30i202107-202108

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

main81185-48G31i202108

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&HEADLAMP LEVELING DEVICE-WITH(LED TRIPLE BEAM TYPE)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48100i201712-201908

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-48120i201712-201908

main81193-48160i201908

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48100i201712-201908

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48120i201712-201908

main81194-48160i201908

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81193-48110i201712-201908

main81193-48150i201908

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81194-48110i201712-201908

main81194-48150i201908

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021i201908-202107

12V 21W,AMBER,KOREA SPEC&COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90981-15021i202107

12V 21W,AMBER,KOREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main90981-15021i201908-202107

12V 21W,AMBER,KOREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90981-15024i201712-201908

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028i201908-202107

KOREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-60028i202107

KOREA SPEC&HEADLAMP LEVELING DEVICE-WITH(LED SINGLE BEAM TYPE)

main90075-60028i201908-202107

KOREA SPEC&COLD AREA SPEC&REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main90075-60083i201712-201908

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069i201712-201908

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60089i201712-201908

89907COMPUTER SUB-ASSY, HEADLAMP, LH

main89907-48130i201712-201908

COLD AREA SPEC

89908COMPUTER SUB-ASSY, HEADLAMP, RH

main89908-48130i201712-201908

COLD AREA SPEC

9007502056

main90075-02056

9010506298

main90105-06298

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

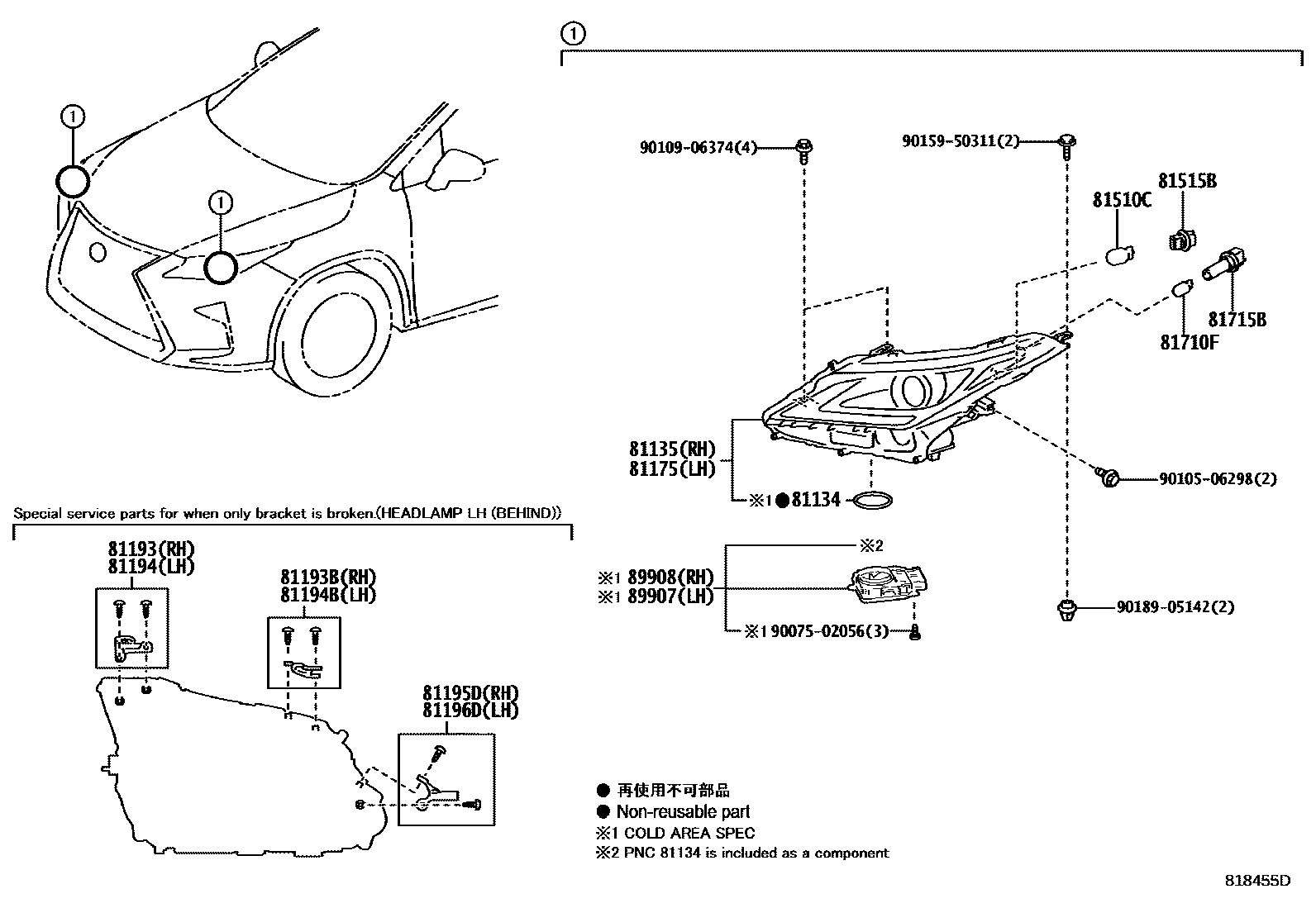

20 parts on this diagram · 6 diagrams in section
