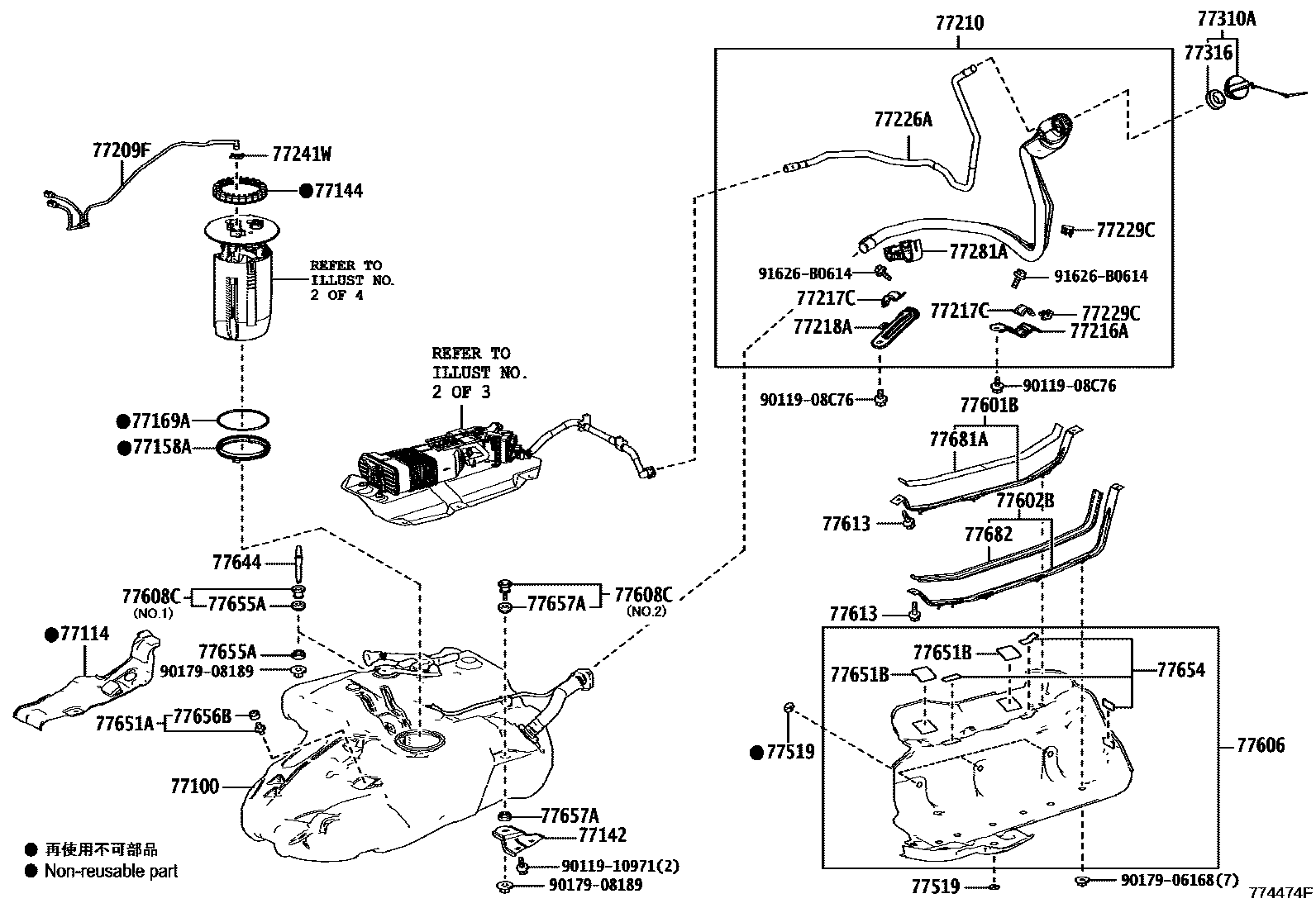

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-48220iGGL2#201712-201908

sub77001-0E100

sub77114-0E050

sub77652-48060

sub77653-08010

main77001-48230iGYL26201712-202209

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iGGL2#201712-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iGGL2#201712-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iGGL2#201712-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iGGL2#201712-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL26201712-201908

main77169-48040iGGL2#201712-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48160iGYL26201712-201908

main77209-48170iGGL2#201712-201908

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E120iGYL26201712-201908

main77210-48390iGGL2#201712-201908

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0E040iGYL26201712-201908

main77216-48080iGGL2#201712-201908

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0E050iGYL26201712-201908

main77217-48080iGGL2#201712-201908

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0E060iGYL26201712-201908

main77218-48140iGGL2#201712-201908

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0E090iGYL26201712-201908

main77226-48220iGGL2#201712-201908

77229CCLAMP, BREATHER TUBE

main77229-0E010iGYL26201712-201908

main77229-48030iGGL2#201712-201908

77241WCLIP, TUBE JOINT

main77241-33011iGGL2#201712-201908

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iGGL2#201712-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-0E030iGYL26201712-201908

main77281-48080iGGL2#201712-201908

77310ACAP ASSY, FUEL TANK

main77300-53030iGGL2#201712-201908

main77300-53040iGYL26201712-201908

77316GASKET, FUEL TANK CAP

main77316-75020iGGL2#,GYL26201712-201908

77519SPACER, FUEL TANK BRACKET

main77529-48010iGGL2#201712-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E040iGYL26201712-201908

main77601-48190iGGL2#201712-201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E040iGYL26201712-201908

main77602-48180iGGL2#201712-201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E050iGYL26201712-201908

main77606-48140iGGL2#201712-201908

77608CCUSHION SET, FUEL TANK

main77608-48011iGGL2#201712-201908

NO.1

main77608-48040iGGL2#201712-201908

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-10971iGGL2#,GYL26201712-201908

77644BOLT, FUEL TANK

main77644-48010iGGL2#201712-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iGYL26201712-201908

main77651-48020iGGL2#201712-201908

77651BCUSHION, FUEL TANK

main77651-12070iGGL2#201712-201908

77654CUSHION, FUEL TANK, NO.2

main77652-48020iGGL2#201712-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011iGGL2#201712-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iGGL2#201712-201908

77657ACUSHION, FUEL TANK, NO.5

main77655-48020iGGL2#201712-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iGGL2#201712-201908

77682SEAT, FUEL TANK BAND, LH

main77616-0E050iGYL26201712-201908

main77682-48050iGGL2#201712-201908

9011908C76

main90119-08C76

9011910971

main90119-10971

9017906168

main90179-06168

9017908189

main90179-08189

91626B0614

main91626-B0614

38 parts on this diagram · 8 diagrams in section
