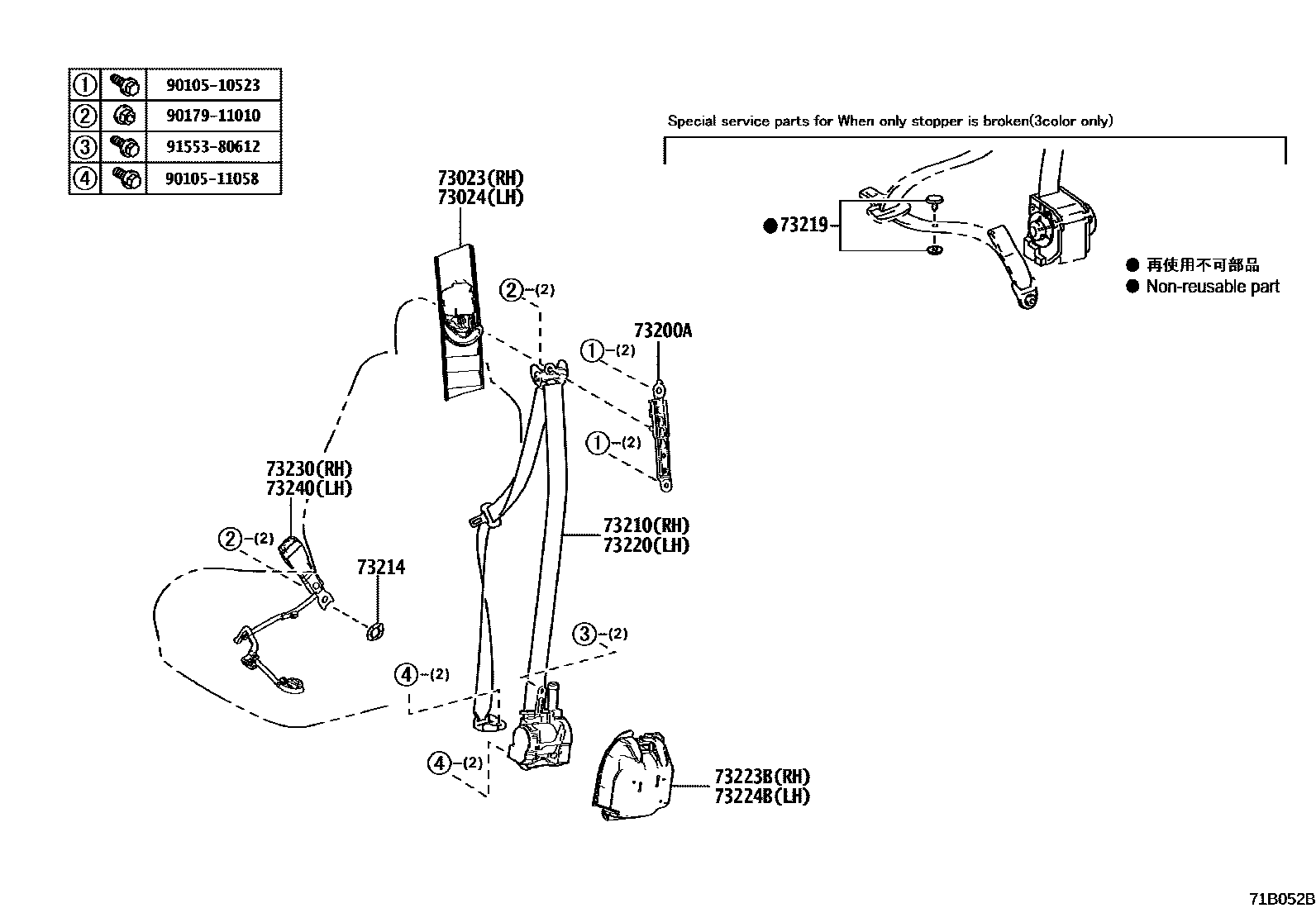

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,5#,6#
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,2#,4#,7#
MOON STONE,TRIM1#,2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,2#,4#
BLACK/ECRU,TRIM00,02,04,5#
BLACK/ECRU,TRIM0#,5#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
BLUE,TRIM7#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/MOON STONE,TRIM1#,2#,4#
BLACK/ECRU,TRIM0#,5#
BLUE,TRIM7#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
9010510523
main90105-10523
9010511058
main90105-11058
9017911010
main90179-11010
9155380612
main91553-80612
15 parts on this diagram · 5 diagrams in section
