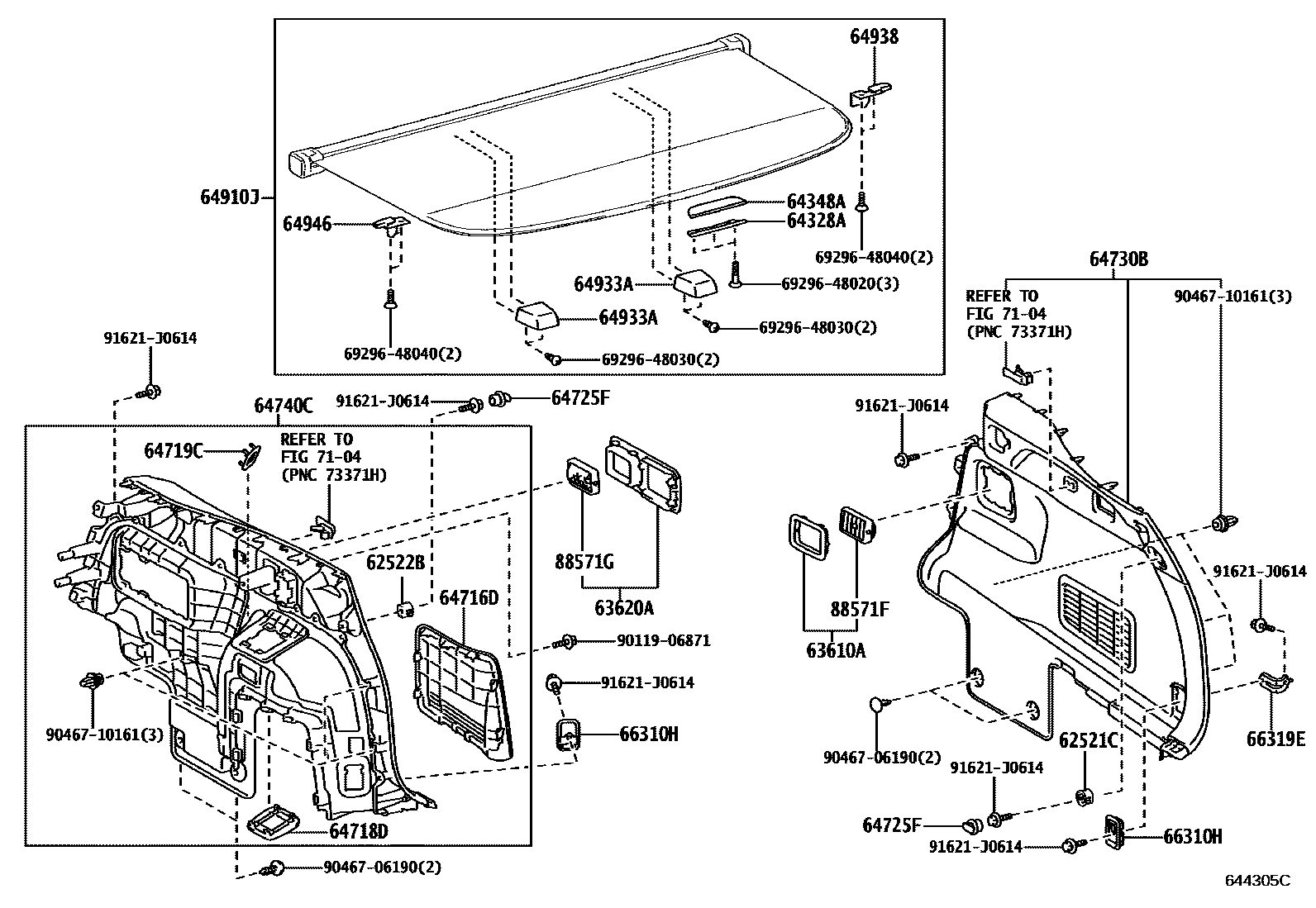

DECK BOARD & DECK TRIM COVER
62521CCOVER, QUARTER TRIM RH
62522BCOVER, QUARTER TRIM LH
63610AREGISTER ASSY, AIR OUTLET, RH
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
63620AREGISTER ASSY, AIR OUTLET, LH
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64328ACOVER, PACKAGE TRAY TRIM CLAMP
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
64348AKNOB, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64718DCOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64719CCOVER, DECK TRIM POCKET
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
64910JCOVER ASSY, TONNEAU
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64933ABRACKET, TONNEAU COVER HOLDER, RH
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
64938HOOK, TONNEAU COVER, A
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
64946HOOK, TONNEAU COVER, B
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
66310HHOOK ASSY, ROPE
66319EBRACKET, ROPE HOOK, RH
7104
88571FGRILLE, COOLER AIR OUTLET, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
88571GGRILLE, COOLER AIR OUTLET, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
6929648020SCREW, DOOR INSIDE HANDLE
main69296-48020
6929648030SCREW, DOOR INSIDE HANDLE
main69296-48030
6929648040SCREW, DOOR INSIDE HANDLE
main69296-48040
9011906871
main90119-06871
9046706190
main90467-06190
9046710161
main90467-10161
91621J0614
main91621-J0614
28 parts on this diagram · 3 diagrams in section
