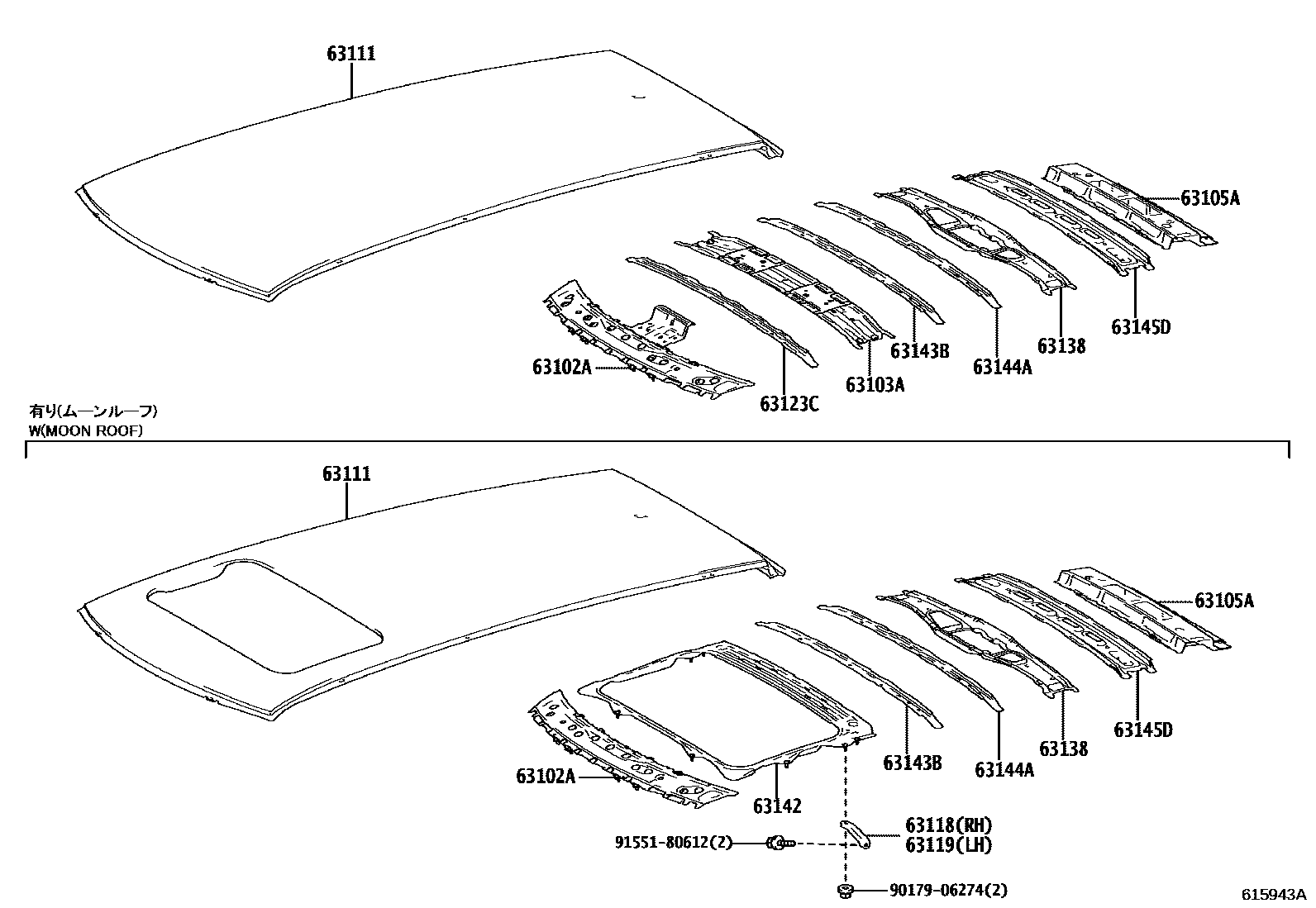

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48916iGGL2#,GYL26201712-201908

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-48060iGGL2#,GYL26201712-201908

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48090iGGL2#,GYL26201712-201908

63111PANEL, ROOF

main63111-48360iGGL2#,GYL26201712-201908

63118SUPPORT, ROOF PANEL, RH

main63118-48110

63119SUPPORT, ROOF PANEL, LH

main63118-48110

63123CREINFORCEMENT, ROOF PANEL

main63123-48060iGGL2#,GYL26201712-201908

63138BRACKET, DOME LAMP, NO.2

main63138-48060iGGL2#,GYL26201712-201908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-48090

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48110iGGL2#,GYL26201712-201908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48100iGGL2#,GYL26201712-201908

63145DBRACKET, ROOF REINFORCEMENT

main63145-48030iGGL2#,GYL26201712-201908

9017906274

main90179-06274

9155180612

main91551-80612

14 parts on this diagram · 3 diagrams in section
