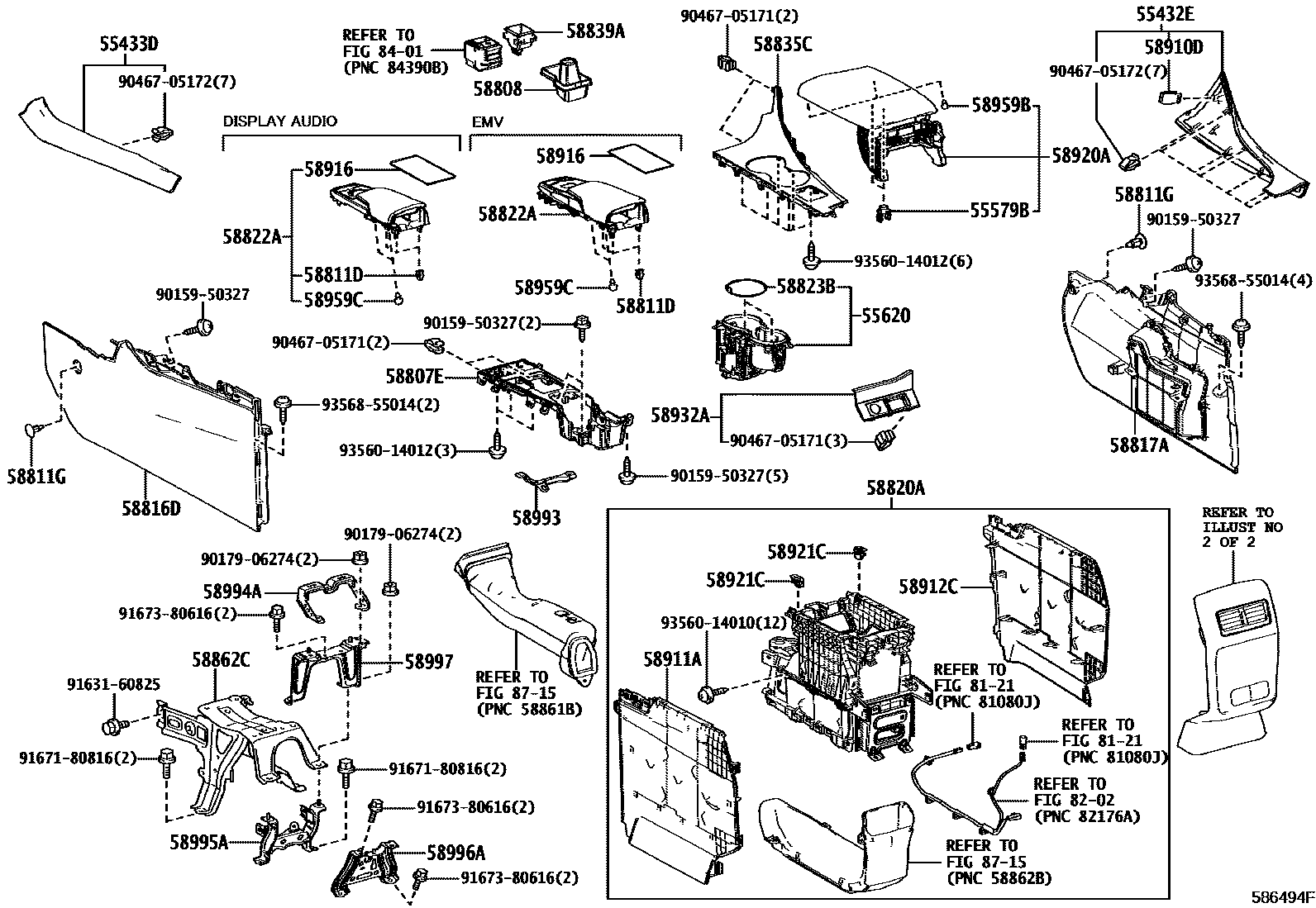

CONSOLE BOX & BRACKET
55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55579BBAND, GLOVE COMPARTMENT BOX
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/CRIMSON,TRIM4#
BLACK/LT.GRAY,TRIM00,02,04,1#,2#,5#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/BLUE,TRIM7#
NOBLE BROWN/IVORY,TRIM00,02,04
NOBLE BROWN/IVORY,TRIM0#,5#,6#
58811DCLIP(FOR CONSOLE BOX)
58811GCLIP(CONSOL BOX)
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#
58820ABOX ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
58822APANEL, CONSOLE, UPPER REAR
RICH CREAM/TERRA COTTA,TRIM6#
IVORY/IVORY,TRIM0#
MOON STONE/MD.GRAY,TRIM1#
BLACK/LT.GRAY,TRIM2#
NOBLE BROWN/CRIMSON,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
WHITE ASH,TRIM1#
BLACK/LT.GRAY,TRIM2#
BLACK/BLUE,TRIM7#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),RICH CREAM/TERRA COTTA,TRIM6#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),IVORY,TRIM0#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MOON STONE,TRIM1#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM4#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),TOPAZ BROWN,TRIM5#
sub84781-48041
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),IVORY,TRIM0#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MOON STONE,TRIM1#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM4#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),TOPAZ BROWN,TRIM5#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),RICH CREAM/TERRA COTTA,TRIM6#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM1#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#
sub84781-48051
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM1#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#
AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#
58823BBOX, CONSOLE COMPARTMENT
58835CORNAMENT, CONSOLE BOX
BLACK,TRIM0#,1#,2#,4#,5#
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,10,20,40,50
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,10,20,40,50
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM12,23
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.BROWN,TRIM12,23
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM41,51
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.BROWN,TRIM41,51
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM02
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NATURAL BROWN,TRIM02
BLACK,TRIM0#,1#,2#,4#,5#
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,10,20,40,50
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,10,20,40,50
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),BLACK,TRIM7#
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),BLACK,TRIM7#
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),DK.BROWN,TRIM41
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.BROWN,TRIM41
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),OPEN PORE,TRIM11,13,23,53
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),OPEN PORE,TRIM11,13,23,53
PREMIUM PACKAGE&DOOR TRIM-WOOD PANEL & WITHOUT(ILLUMINATION LAMP),NATURAL BROWN,TRIM02,52
"VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NATURAL BROWN,TRIM02,52
58839ACOVER, CONSOLE BOX HOLE
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT& REAR NO.1 SEAT)
PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT & REAR NO.1 SEAT)
SEAT HEATER-WITH(FRONT SEAT)
58862CSUPPORT, CONSOLE BOX, NO.2
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
58921CPLATE, BOX, UPPER NO.1
58932AGARNISH, REAR CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121
8202
8401
8715
9015950327
main90159-50327
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9163160825
main91631-60825
9167180816
main91671-80816
9167380616
main91673-80616
9356014010
main93560-14010
9356014012
main93560-14012
9356855014
main93568-55014
44 parts on this diagram · 4 diagrams in section
