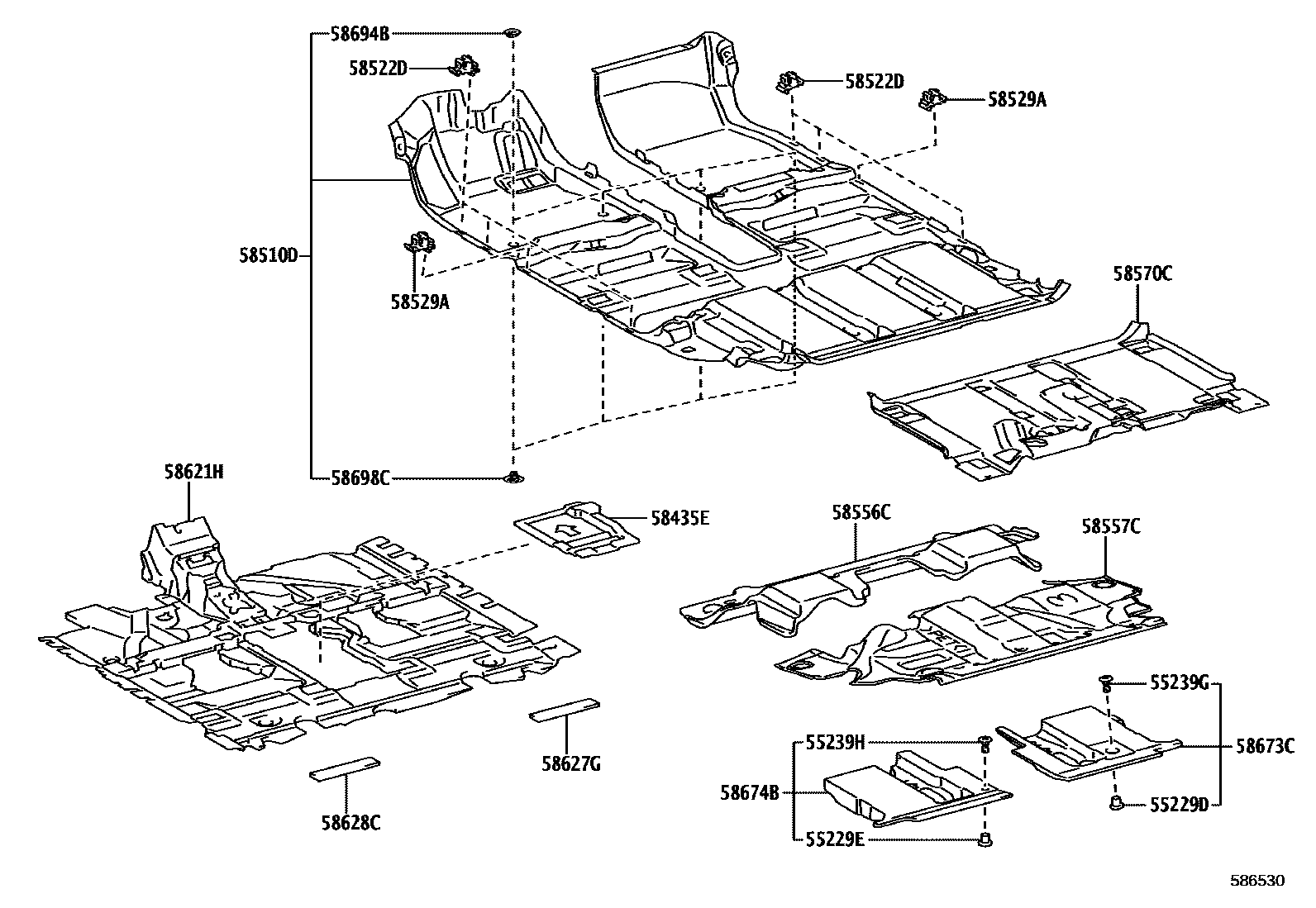

MAT & CARPET
55229DPLATE, REAR FLOOR SILENCER PAD, RH
55229EPLATE, REAR FLOOR SILENCER PAD, LH
55239GPLATE, REAR FLOOR SILENCER PAD, RH
55239HPLATE, REAR FLOOR SILENCER PAD, LH
58435ESILENCER, FRONT FLOOR, CENTER
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
58522DHOOK, FLOOR CARPET, NO.2
58529AHOOK, FLOOR CARPET, NO.3
58557CSILENCER, REAR FLOOR, NO.2
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,4#,5#,7#
BLACK,TRIM0#,1#,2#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,02,04
58621HPAD, FRONT FLOOR SILENCER
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
18 parts on this diagram · 2 diagrams in section
