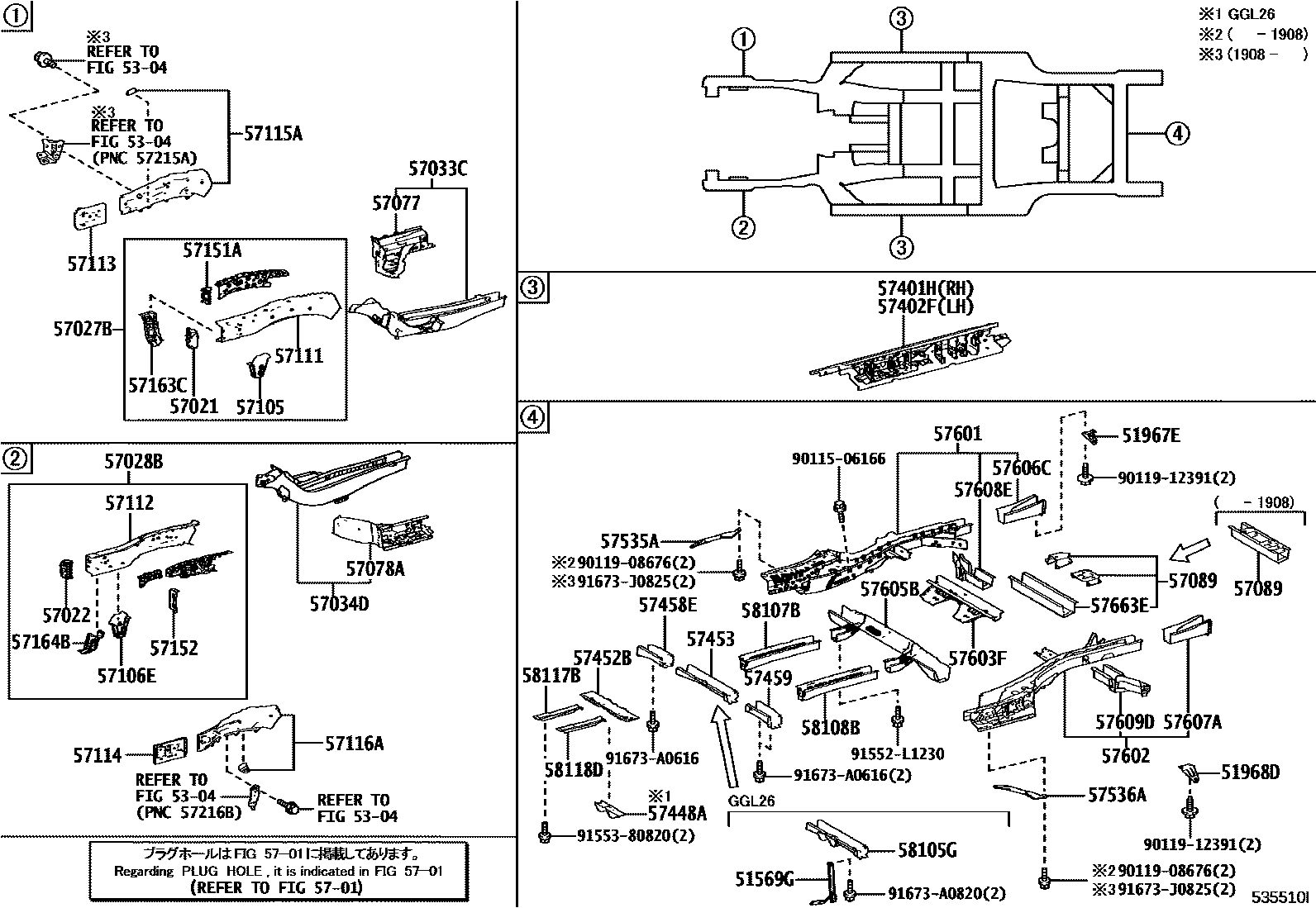

FLOOR SIDE MEMBER

0001 1 0002 1

51569GGUARD, PROPELLER SHAFT

main51569-48021iGGL26201712-201908

51967EHOOK, TRANSPORT, REAR RH

main51967-48050iGGL2#,GYL26201712-201908

51968DHOOK, TRANSPORT, REAR LH

main51968-48050iGGL2#,GYL26201712-201908

5304

5701

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-48013iGGL2#,GYL26201712-201912

main57021-48040iGGL2#,GYL26202001

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-48013iGGL2#,GYL26201712-202001

main57022-48040iGGL2#,GYL26202001

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-48030iGGL2#,GYL26201712-201912

sub57027-48031

main57027-48031iGGL2#,GYL26202001

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-48060iGGL2#,GYL26201712-201912

sub57028-48061

main57028-48061iGGL2#,GYL26202001

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-48041iGGL2#,GYL26201712-201908

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-48031iGGL2#,GYL26201712-201908

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-48050iGGL2#,GYL26201712-201908

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-48040iGGL2#,GYL26201712-201908

57089REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.6

main57089-48010iGGL2#,GYL26201712-201908

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iGGL2#,GYL26201712-201908

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iGGL2#,GYL26201712-201908

57111MEMBER, FRONT SIDE, RH

main57111-48030iGGL2#,GYL26201712-201908

57112MEMBER, FRONT SIDE, LH

main57112-48030iGGL2#,GYL26201712-201908

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-48021iGGL2#,GYL26201712-201908

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-48021iGGL2#,GYL26201712-201908

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-48901iGGL2#,GYL26201712-201908

main57115-48906iGGL2#,GYL26201908

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-48905iGGL2#,GYL26201712-201908

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-48020iGGL2#,GYL26201712-201908

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-48020iGGL2#,GYL26201712-201908

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-48030iGGL2#,GYL26201712-201908

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-48030iGGL2#,GYL26201712-201908

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-48062iGYL26201908

KOREA SPEC

main57401-48070iGGL2#,GYL26201712-201908

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-48062iGYL26201908

KOREA SPEC

main57402-48070iGGL2#,GYL26201712-201908

57448ABRACKET, DIFF LOCK LEVER MOUNT, NO.1

main57448-48030iGGL26201712-201908

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-48032iGGL2#,GYL26201712-201908

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-48011iGGL21201712-201908

main57453-48020iGYL26201712-201908

57458EMEMBER, FRONT FLOOR CROSS, NO.1

main57458-48012iGGL2#,GYL26201712-201908

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-48015iGGL2#,GYL26201712-201908

57535ABRACE, FRONT FLOOR, RH

main57535-48060iGGL2#201712-201908

main57535-48070iGYL26201712-201908

57536ABRACE, FRONT FLOOR, LH

main57536-48040iGGL2#201712-201908

main57536-48050iGYL26201712-201908

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-48141iGYL26201908

KOREA SPEC

main57601-48151iGGL2#,GYL26201712-201908

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-48151iGGL2#201712-201908

main57602-48160iGYL26201908

KOREA SPEC

main57602-48171iGYL26201712-201908

57603FGUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER

main57603-48092iGGL2#201712-201908

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-48100iGYL26201712-201908

main57605-48110iGGL2#201908

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-48090iGGL2#,GYL26201712-201908

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-48060iGGL2#201712-201908

main57607-48070iGYL26201712-201908

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-48020iGGL2#,GYL26201712-201908

57609DREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-48021iGGL2#,GYL26201712-201908

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-48040iGGL2#,GYL26201908

58105GRETAINER SUB-ASSY, FLOOR CLAMP

main58105-48051iGGL26201712-201908

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-48030iGGL2#,GYL26201712-201908

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-48040iGGL2#,GYL26201712-201908

58117BREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-48030iGGL2#,GYL26201712-201908

58118DREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-48030iGGL2#,GYL26201712-201908

9011506166

main90115-06166

9011908676

main90119-08676

9011912391

main90119-12391

91552L1230

main91552-L1230

9155380820

main91553-80820

91673A0616

main91673-A0616

91673A0820

main91673-A0820

91673J0825

main91673-J0825

57 parts on this diagram · 2 diagrams in section
