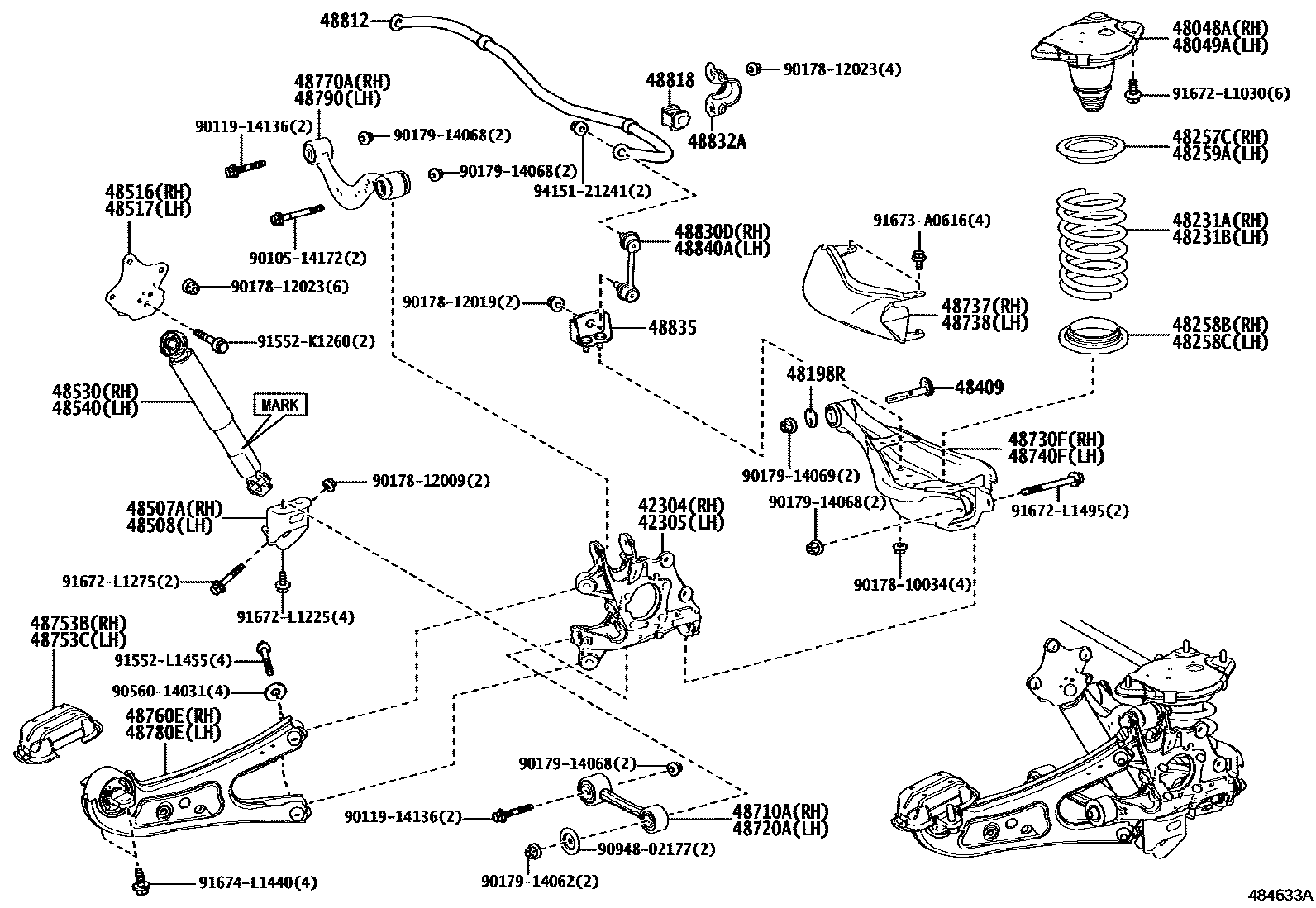

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
48049ASEAT SUB-ASSY, SPRING, LH
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-48400,KOREA SPEC&*AVS-WITH
MARK 48531-48440
MARK 48531-48490
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-48440
MARK 48531-48490
MARK 48540-48400,KOREA SPEC&*AVS-WITH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9010514172
main90105-14172
9011914136
main90119-14136
9017810034
main90178-10034
9017812009
main90178-12009
9017812019
main90178-12019
9017812023
main90178-12023
9017914062
main90179-14062
9017914068
main90179-14068
9017914069
main90179-14069
9056014031
main90560-14031
9094802177
main90948-02177
91552K1260
main91552-K1260
91552L1455
main91552-L1455
91672L1030
main91672-L1030
91672L1225
main91672-L1225
91672L1275
main91672-L1275
91672L1495
main91672-L1495
91673A0616
main91673-A0616
91674L1440
main91674-L1440
9415121241
main94151-21241
56 parts on this diagram · 1 diagram in section
