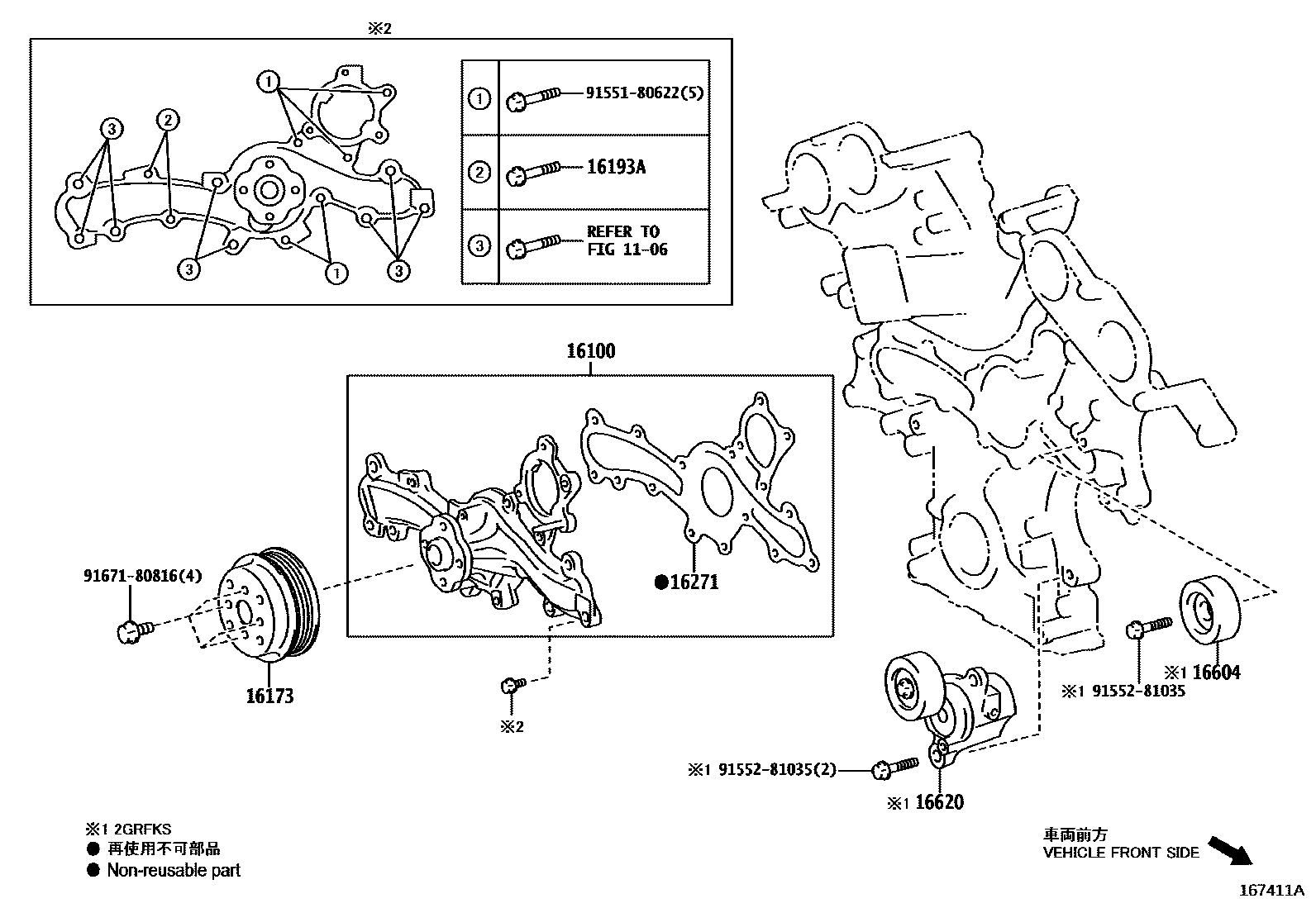

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-39615i2GR#..GGL2#,GYL26201712-202004

sub16100-39616

main16100-39616i2GR#..GGL2#,GYL26202004

16173PULLEY, WATER PUMP

main16173-31030i2GRFKS..GGL2#201712-202003

sub16173-31031

main16173-31031i2GRFKS..GGL2#202004

main16173-31040i2GRFXS..GYL26201712-202003

sub16173-31041

main16173-31041i2GRFXS..GYL26202004-202012

sub16173-31042

main16173-31042i2GRFXS..GYL26202101

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GR#..GGL2#,GYL26201712-201908

16271GASKET, WATER PUMP

main16271-31050i2GR#..GGL2#,GYL26201712-201908

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31030i2GRFKS..GGL2#201712-201908

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31090i2GRFKS..GGL2#201712-201908

9155180622

main91551-80622

9155281035

main91552-81035

9167180816

main91671-80816

10 parts on this diagram · 1 diagram in section
